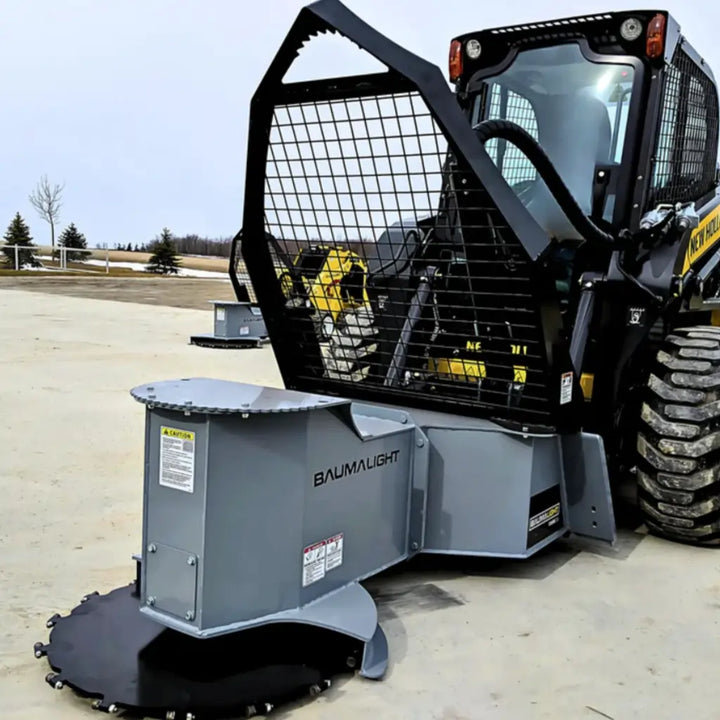

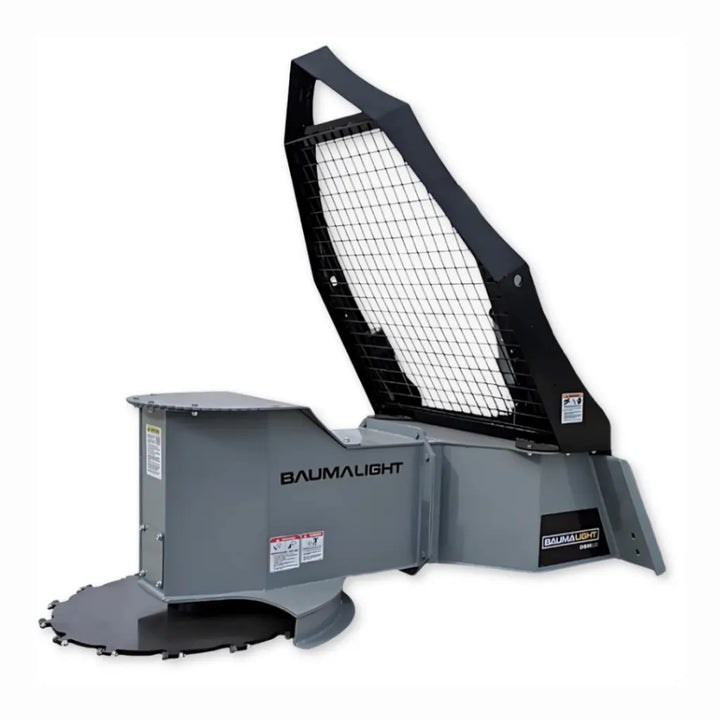

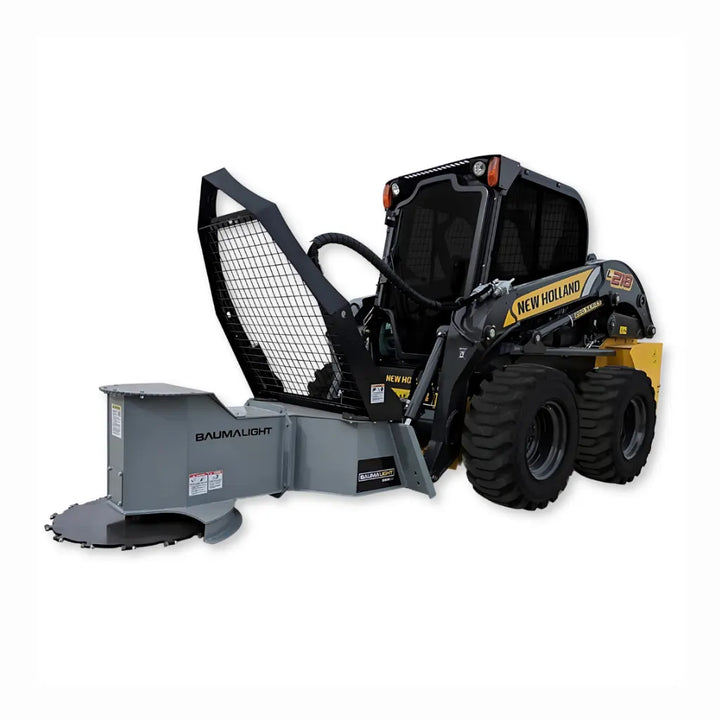

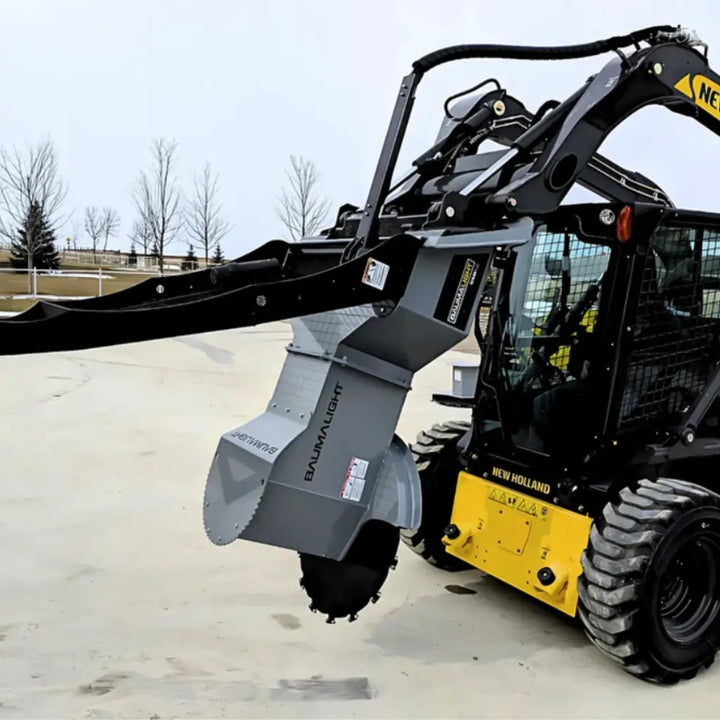

Baumalight DSM530 Rotating Tree Saw for Skid Steers

Brand: Baumalight
SKU: DSM530-T530 / Weight: 800.0 lb
The Baumalight DSM530 Tree Saw is a hydraulically driven attachment designed for precision cutting in dense brush and small trees. Its manual 90° rotating head allows for versatile horizontal and vertical cutting, making it perfect for trimming, pruning, and land clearing tasks. Built tough with abrasion-resistant AR-400 steel, replaceable carbide-tipped teeth, and a protective shielded blade, the DSM530 delivers clean, reliable cuts and long-lasting durability on every job.

✔️ Lead Time Estimated at 5 Weeks
✔️ Price Match Guarantee
✔️ 6 Free Replacement Teeth
✔️ Manufacturer Warranty Included

$7,600.00

Special Offer! Use Code: CARSON10 for 10% OFF

ADD TO CART AND USE CODE AT CHECKOUT PAGE. LIMITED TIME ONLY

Attachment Specifications

Model # DSM230 DSM530 DSA530
ADAPTOR MINI SKIDSTEER UNIVERSAL SKIDSTEER UNIVERSAL SKIDSTEER
Blade Angle 180° 180° 180°
Rotation Bolt-on Bolt-on Actuator
Actuator Manual Manual Helical
GPM 6-20 10-40 10-45
PSI 4,000 4,000 4,000
Electrical AUX Not required Not required 2 ON/OFF pins & G
Hydraulic Hose Supplied Supplied Supplied
Hydraulic Couplers Supplied Not Supplied Not Supplied
Motor Type Bend Axis Piston Bend Axis Piston Bend Axis Piston
Motor Cc 25 47 47
Motor Option T508 T530 T530
Blade Diameter 30" 30" 30"
Max Cut 10" 10" 10"
Blade Material AR400 AR400 AR400
Cut Thickness 3/4" 3/4" 3/4"
Tooth part number H3000 H3000 H3000
Type of Teeth High Speed Teeth High Speed Teeth High Speed Teeth
No. of Edges per Tooth 3 3 3
Number of Teeth 12 12 12
Weight 650 lbs 800 lbs 900 lbs
Key Features - DSM530

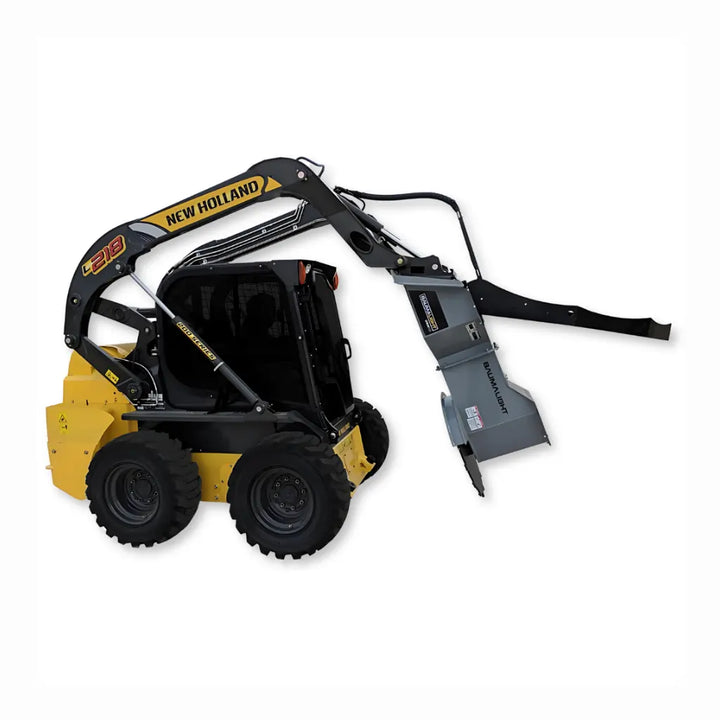

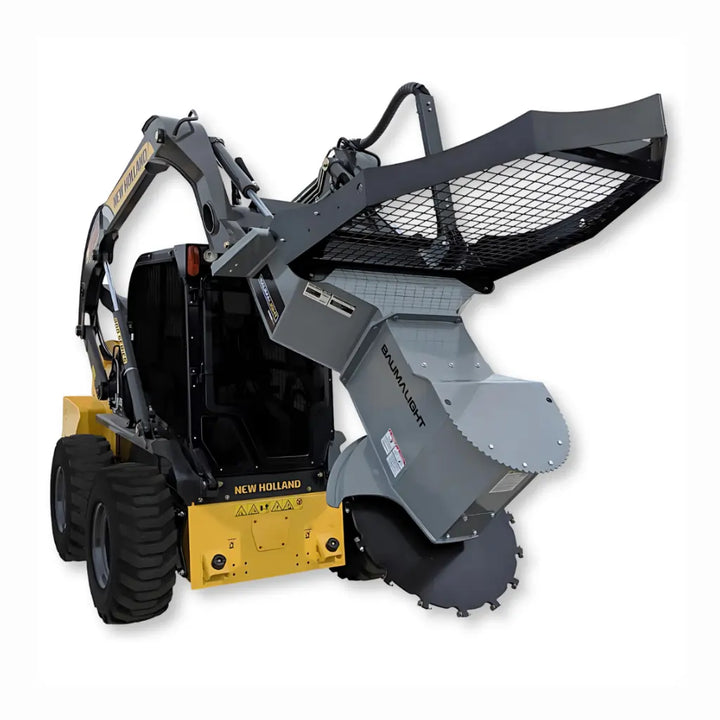

MANUAL ROTATING CUTTING HEAD

Effectively switch from horizontal tree cutting position to vertical trimming and limbing position with the 90 degree manual rotating head. Simply remove the 8 bolts at the base of the cutting head, rotate the unit 90 degrees to the left or the right and then secure the bolts.

Manual rotating cutting head

Heavy duty build

The tree saw’s durable design and quality materials combine to create a saw that is able to stand up to the demanding work of cutting limbs and trees.

Heavy duty build

Clean Cuts

The tree saw makes clean work of limbing and trimming trees safely and quickly, leaving pruned trees with a clean cut.

Clean cuts

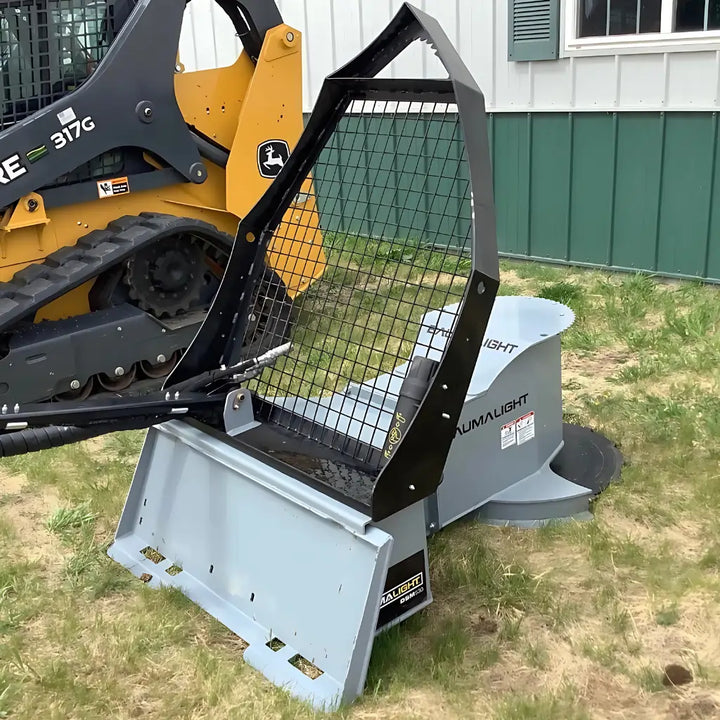

Mount Angle

DropSaw's skidsteer plate is on a roll back angle. This gives you even more flexibility to successfully trim areas that are difficult to reach.

Dropsaw mount angle

Saw blade shielding

The durable shield encloses the blade for protection, directing the chips as it easily cuts through limbs and trees.

Saw blade shielding

Blade mounted on heavy duty bearing support

The tree saw's blade is mounted on an overhung load adapter, which is designed with tapered roller bearings and built to stand up to the rigors of sawing limbs and trees. The overhung load adapter keeps the blade spinning in the toughest trimming conditions.

Blade mounted on heavy duty bearing support

Available with Gear motor or BENT AXIS PISTON MOTOR

Gear motors are a good cost effective choice for the average user and our Industry leading bent axis piston motors make the most efficient use of your hydraulic flow and pressure for pruning, trimming and land clearing. Built to last, these reliable motors can double the power of your output flow.

Bent axis piston motor

CASE DRAIN – VENT TO ATMOSPHERE

To prevent pressure relief activation on the motor seal, the DSM530 comes with a case drain line and a vent to atmosphere relief valve. In the event there is a spike in pressure in your hydraulic lines, the case drain will relieve the pressure and drain it back into the return line and back to the tank. If the connection of the case drain (third line) is missed or if the line is blocked, then the case drain will vent to notify you. A properly installed case drain protected by a vent to atmosphere relief valve will save the work of replacing your shaft seal and save you from down time of unexpected maintenance. To learn more, CLICK HERE about the case drain line.

Case drain vent to atmosphere

FRONT PUSH BAR

A solid serrated steel plate up front helps guide limbs, branches and small trees safely away from the operator.

Front push bar

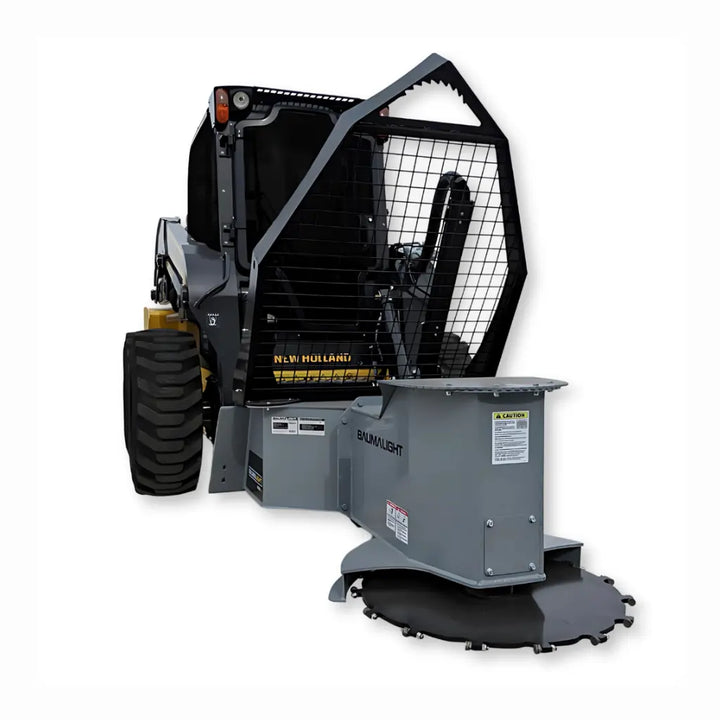

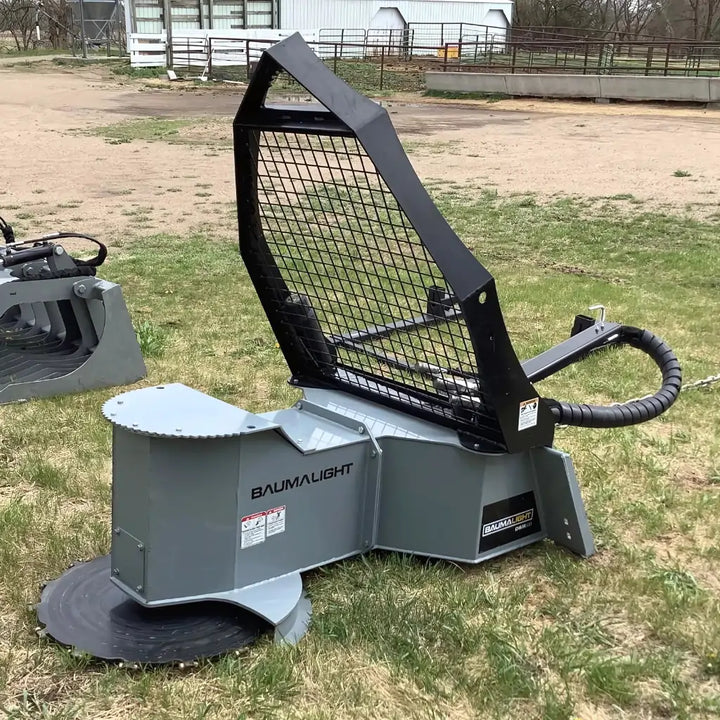

ANGLED PUSH BAR WITH PROTECTIVE MESH

The large push bar with integrated safety mesh is angled to help guide any falling debris away from the operator.

Angled push bar with protective mesh

AR400 STEEL BLADE

The tree saw’s heavy duty circular blade is designed and shaped from AR-400 steel. This abrasion resistant steel is rugged and ready for the abuse of a long service life.

AR400 steel blade

HIGH SPEED TEETH

The concave shaped carbide tip of our High-Speed Teeth provide aggressive cutting action by chipping the brush bit by bit. This round tooth is 3 teeth in 1. Simply loosen the lock nut and rotate the tooth to a fresh, sharp cutting edge. This can be done three times, extending the life of each tooth.

High speed teeth

EASY TEETH CHANGING

The high speed teeth design allows for easy rotation and changing of the teeth as needed.

Easy teeth changing

6 FREE TEETH

All DSM530 Tree Saw's come with a free set of 6 replacement teeth. These replacement teeth are conveniently shipped in a robust enclosed compartment on top of the frame.

6 free teeth

Designed for maximum visibility

Making sure you have the best seat in the house, the tree saw was designed with maximum visibility in mind, allowing you to make cleaner and better cuts.

Designed for maximum visibility

PROTECTIVE POWDER COAT FINISH

Heavy duty construction and a durable powder coated finish.

Protective powder coat finish

Easy Access Panels for Service

Built for the long haul, the tree saw has multiple removable panels for easier access and servicing.

Easy access panels for service

ANTI-SLIP MAT FOR EASY ACCESS TO CAB

For ease of entry and exit from the cab an anti-slip strip gives sure footing.

Anti slip mat for easy access to cab

INTERNAL HOSE ROUTING

All of the hydraulic hoses on the DropSaw are sleeved for operator and hose protection while the connecting hoses are sleeved and wrapped in hose armour for double protection. The hoses are then routed internally, keeping them out of harm’s way. The DropSaw also features a pivoting arm with a greaseable pin keeping the slack out of the way which protects the hoses from dangerous pinching and strain.

Internal hose routing

Hoses supplied

Skid steer tree saw models ship with the necessary hydraulic hoses, so you can connect and go to work.

Dropsaw models hydraulic hoses

Hoses double shielded

All of the hydraulic hoses are routed internally where possible and sleeved for operator and hose protection, while the connecting hoses are sleeved and wrapped in hose armor for double protection.

Hoses with double shielded

HOSE SUPPORT

Skidsteer Dropsaws feature travelling hose supports that relieves pressure and strain on hoses. A greaseable pin on the hose support ensures longer life and better performance.

Hoses support

GREASEABLE PINS

Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the unit's joints over their lifetime.

Greaseable pins
Cutting Time Chart - DSM530

Cutting Time for 10" Limb


MOTOR MOTOR
TYPE
CC CASE DRAIN RPM AT
MAX GPM
PSI 9
GPM
12
GPM
15
GPM
20
GPM
25
GPM
30
GPM
40
GPM
Machine Compatibility

Not sure if the attachment you're considering will fit your machine? Here’s a complete guide to ensuring attachment compatibility.

1. Attachment Mounting Type

Your machine’s mounting plate must match the attachment’s plate for a proper fit. While most manufacturers now follow a "universal" standard, making many attachments interchangeable, there are still exceptions—so always double-check compatibility.

2. Hydraulic Connections and Flow Rate

If the attachment requires hydraulics, ensure that both the machine and attachment have compatible hydraulic couplers. Additionally, the machine’s auxiliary hydraulic flow rate must fall within the attachment’s required range. If the attachment doesn’t use hydraulics, you can skip this step.

3. Machine Lift Capacity

Your machine’s rated operating capacity (ROC) must be able to handle the attachment’s weight. For attachments like buckets and concrete mixers, don’t forget to factor in the weight of the material they’ll be carrying to avoid exceeding your machine’s limits.

If you're unsure about your machine's make or model, check your operator's manual or consult your equipment dealer.
