As an authorized retailer of Baumalight, we are proud to offer a full line of powerful, Canadian-engineered attachments designed to take on the toughest land clearing, forestry, and construction tasks. Known for their innovative design and robust performance, Baumalight attachments are built with a strong commitment to quality, durability, and real-world functionality. Baumalight delivers the rugged, reliable tools you need to boost productivity and tackle any job with confidence. Upgrade your equipment with Baumalight — attachments you can trust!

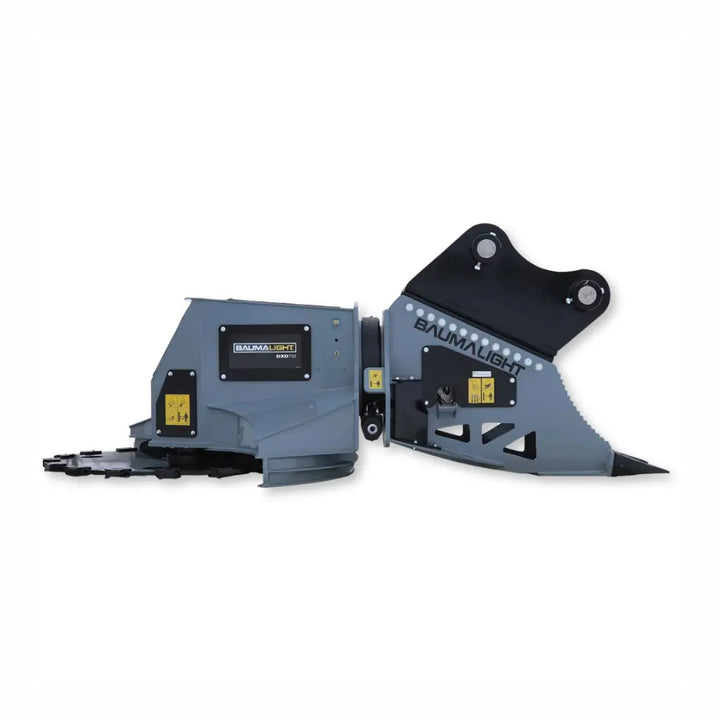

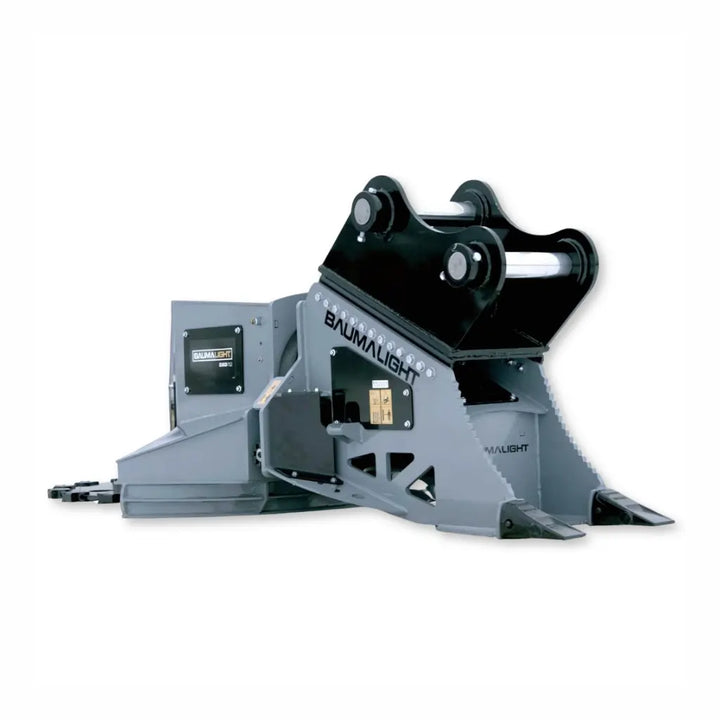

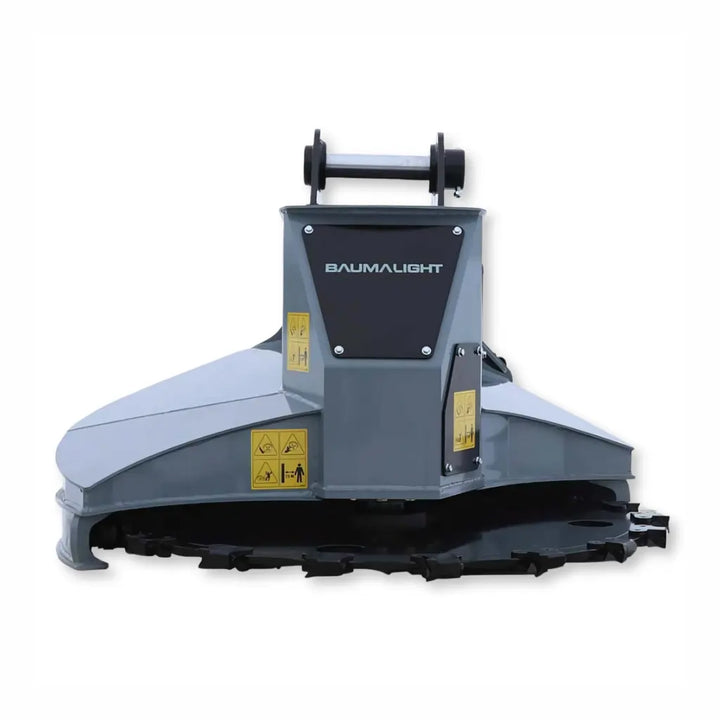

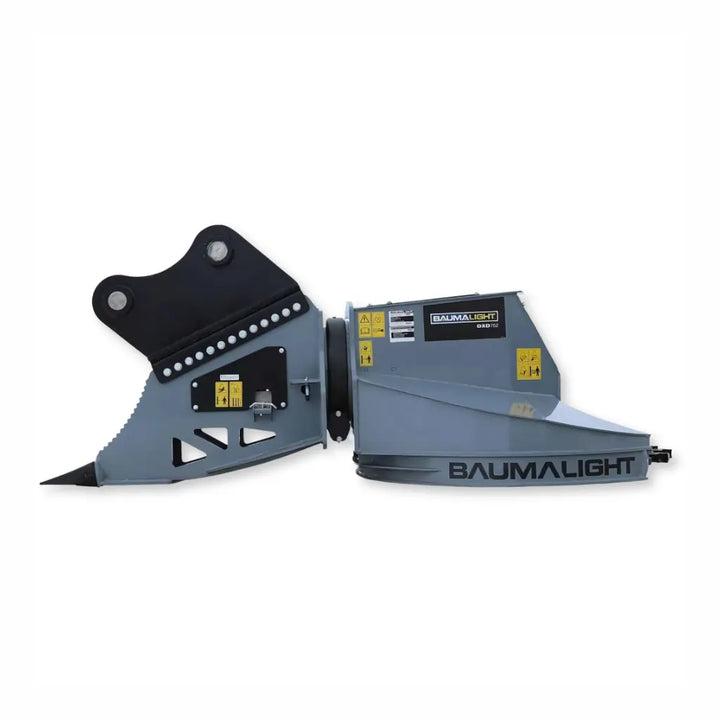

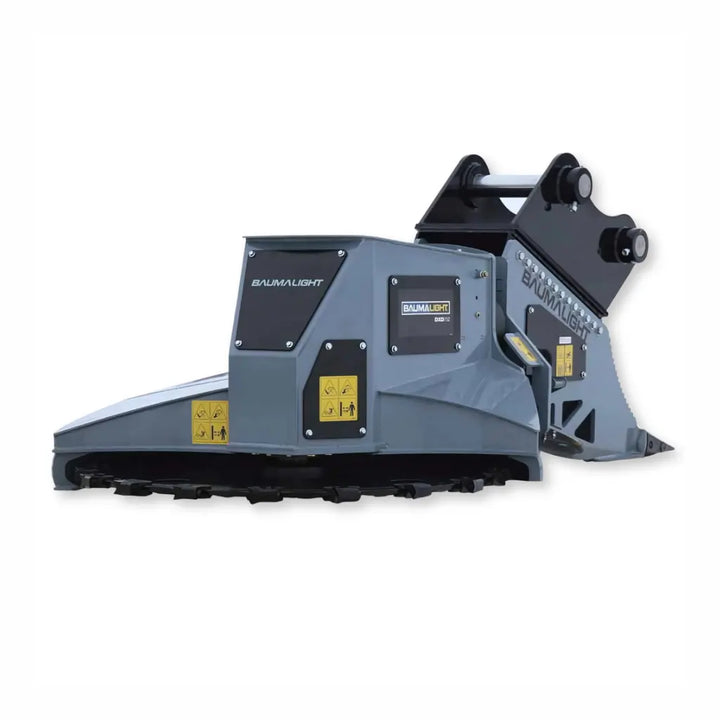

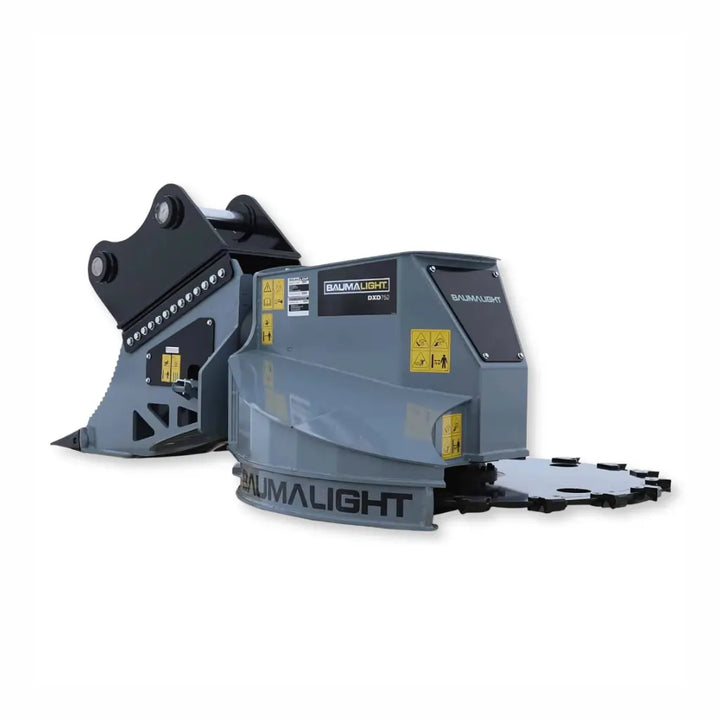

Baumalight DXD752 360° Rotating Tree Saw for 10-22 Ton Excavators
Clear dense brush and large trees with the precision and power of the Baumalight DXD752 — a heavy-duty tree saw designed for 10–22 ton excavators. Equipped with a massive 52" blade and a robust 360° slew drive rotation, it handles trees up to 20" in diameter with ease. Built for demanding forestry and landscaping work, the DXD752 features replaceable Beaver teeth, an integrated root rake, and bolt-on adaptors for maximum versatility and durability. Whether you're tackling remote woodlots or high-volume land clearing, this attachment delivers unstoppable performance in rugged terrain.
✔️ Ready To Ship - In Stock
✔️ Price Match Guarantee
✔️ 6 Free Replacement Teeth
✔️ Manufacturer Warranty Included
✔️ Ready To Ship - In Stock
✔️ Price Match Guarantee
✔️ 6 Free Replacement Teeth
✔️ Manufacturer Warranty Included
Attachment Specifications
| Model # | DXM530 | DXA530 | DXD752 | DXH752 |
|---|---|---|---|---|
| Adaptor | Bolt-on | Bolt-on | Bolt-on | Bolt-on |
| Maximum Carrier Ton | 12 | 12 | 22 | 22 |
| Minimum Carrier Ton | 4 | 4 | 10 | 10 |
| Blade Angle | 180° | 180° | 360° | Horizontal |
| Rotation | Manual | Actuator | Actuator | Fixed |
| Actuator | - | Helical | Slew Drive | - |
| GPM | 10-40 | 10-45 | 25-60 | 25-60 |
| PSI | 5,000 | 5,000 | 5,000 | 5,000 |
| Electrical AUX | Not required | 2 ON/OFF pins & G | 2 ON/OFF pins & G | Not required |
| Hydraulic Hose | Not Supplied | Not Supplied | Not Supplied | Not Supplied |
| Hydraulic Couplers | Not Supplied | Not Supplied | Not Supplied | Not Supplied |
| Motor Type | Bend Axis Piston | Bend Axis Piston | Bend Axis Piston | Bend Axis Piston |
| Motor cc | 47 | 47 | 108 | 108 |
| Motor Option | T530 | T530 | T590 | T590 |
| Blade Diameter | 30" | 30" | 52" | 52" |
| Max Cut | 10" | 10" | 20" | 20" |
| Blade Material | 1/2" AR400 Blade | 1/2" AR400 Blade | 3/4" Steel Blade | 3/4" Steel Blade |
| Cut Thickness | 3/4" | 3/4" | 1-5/8" | 1-5/8" |
| Tooth Part number | H3000 | H3000 | B8000 | B8000 |
| Type of Teeth | High Speed Teeth | High Speed Teeth | Beaver | Beaver |
| No. of Edges per Tooth | 3 | 3 | 4 | 4 |
| Number of Teeth | 12 | 12 | 18 | 18 |
| Unit Shipping Weight | 652 lbs | 620 lbs | 2380 lbs | 1808 lbs |
Key Features - DXD752
ROTATING HEAD POWERED BY SLEW DRIVE
The cutting head’s 360º rotation is powered by a slew drive gearbox. Slew drives are a compact gearbox that offer high power density.
FULL 360 DEGREE ROTATION
Attack your trees from any angle. The DXD752 cutting head allows a full 360º rotation, offering precise control for quick, clean trimming and limbing.
BLADE MOUNTED ON HEAVY DUTY BEARING SUPPORT
The tree saw's blade is mounted on an overhung load adapter, which is designed with tapered roller bearings and built to stand up to the rigors of sawing limbs and trees. The overhung load adapter keeps the blade spinning in the toughest trimming conditions.
SAW BLADE SHIELDING
The durable shield encloses the blade for protection, directing the chips as it easily cuts through limbs and trees.
DESIGNED FOR MAXIMUM VISIBILITY
Making sure you have the best seat in the house, DXD752 was designed with maximum visibility in mind, allowing you to make cleaner and better cuts.
EASY ACCESS PANELS FOR SERVICE
Built for the long haul, DXD752 has multiple removable panels for easier access and servicing.
CLEAN CUTS

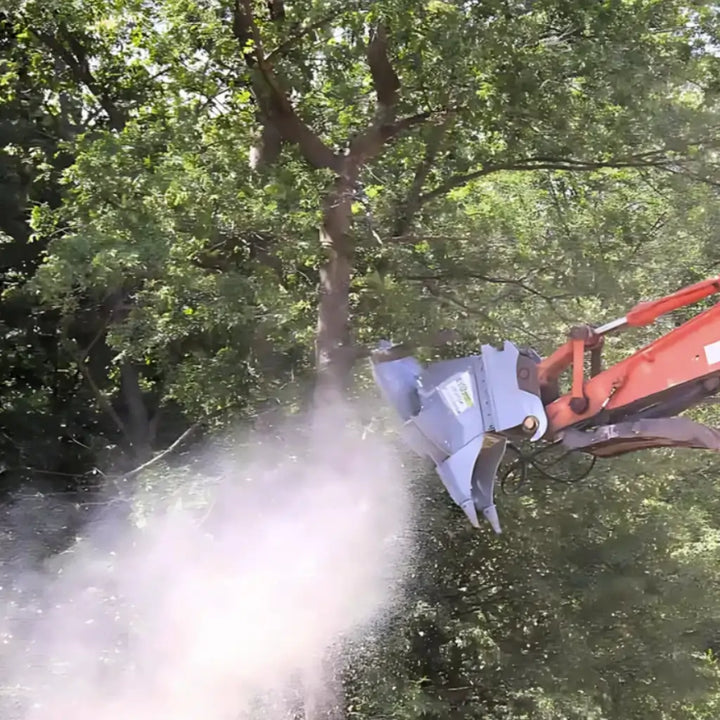

DXD752 makes clean work of limbing and trimming trees safely and quickly, leaving pruned trees with a clean cut.
BOLT-ON EXCAVATOR ADAPTOR
Our bolt-on mounting adaptors provide strength and future flexibility. If needed, your tree saw can easily be bolted to another adaptor to mount to your new excavator.
Supplied WITH BENT AXIS PISTON MOTOR
Our Industry leading bent axis piston motors make the most efficient use of your hydraulic flow and pressure for pruning, trimming and land clearing. Built to last, these reliable motors can double the power of your output flow.
CASE DRAIN – VENT TO ATMOSPHERE
To prevent pressure relief activation on the motor seal, the DXD752 comes with a case drain line and a vent to atmosphere relief valve. In the event there is a spike in pressure in your hydraulic lines, the case drain will relieve the pressure and drain it back into the return line and back to the tank. If the connection of the case drain (third line) is missed or if the line is blocked, then the case drain will vent to notify you. A properly installed case drain protected by a vent to atmosphere relief valve will save the work of replacing your shaft seal and save you from down time of unexpected maintenance. To learn more CLICK HERE about the case drain line.
PROTECTIVE POWDER COAT FINISH
Heavy duty construction and a durable powder coated finish.
REPLACEABLE BEAVER TEETH
Made from high-grade alloy steel, the Beaver style, with its straight edges, is a very durable tooth mounted on a replaceable holder. Tips can be re-sharpened right on the blade with a teeth grinder.
6 FREE TEETH
All DXD752 Tree Saws come with a free set of 6 replacement teeth. These replacement teeth are conveniently shipped in a robust enclosed compartment on top of the frame.
ROOT RAKE

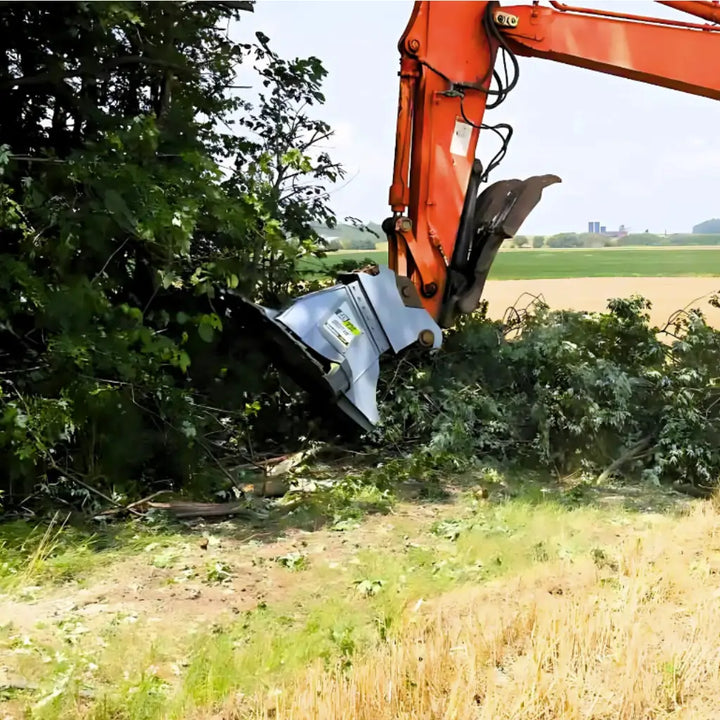

The DXD752 is equipped with a root rake for pushing cut logs or other debris out of the way. The root rake uses replaceable bucket-style scrapper teeth.
Stump Cutting Time Chart - DXD752
Stump Cutting Time Chart For 10" Limb
| Motor | Motor Type | CC | Case Drain | RPM at Max GPM | PSI | 20 GPM | 25 GPM | 30 GPM | 35 GPM | 40 GPM | 50 GPM | 60 GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T590 | Piston | 108 | Critical | 1900 | 3000 | 12 sec | 10 sec | 8 sec | 8 sec | 8 sec | 5 sec | 5 sec |
Machine Compatibility
Not sure if the attachment you're considering will fit your machine? Here’s a complete guide to ensuring attachment compatibility.
1. Attachment Mounting Type
Your machine’s mounting plate must match the attachment’s plate for a proper fit. While most manufacturers now follow a "universal" standard, making many attachments interchangeable, there are still exceptions—so always double-check compatibility.
2. Hydraulic Connections and Flow Rate
If the attachment requires hydraulics, ensure that both the machine and attachment have compatible hydraulic couplers. Additionally, the machine’s auxiliary hydraulic flow rate must fall within the attachment’s required range. If the attachment doesn’t use hydraulics, you can skip this step.
3. Machine Lift Capacity
Your machine’s rated operating capacity (ROC) must be able to handle the attachment’s weight. For attachments like buckets and concrete mixers, don’t forget to factor in the weight of the material they’ll be carrying to avoid exceeding your machine’s limits.
If you're unsure about your machine's make or model, check your operator's manual or consult your equipment dealer.
