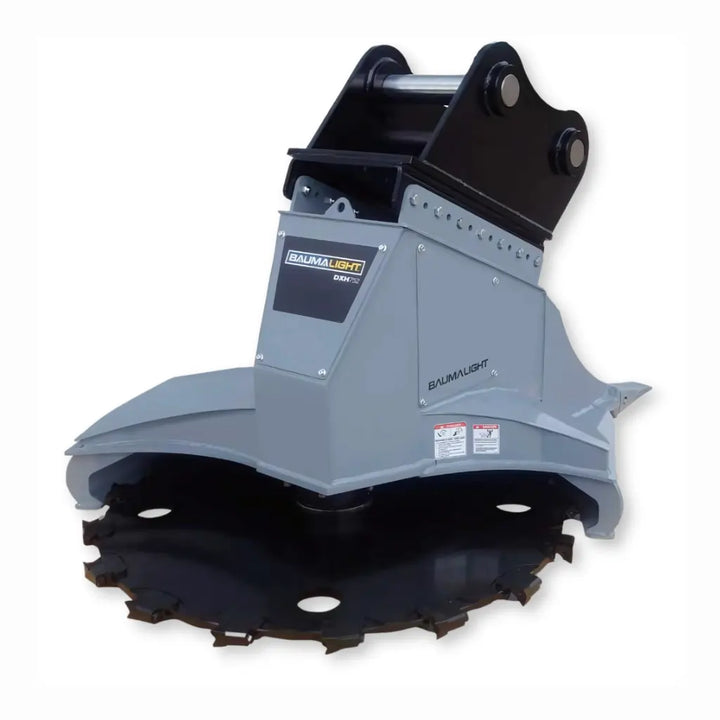

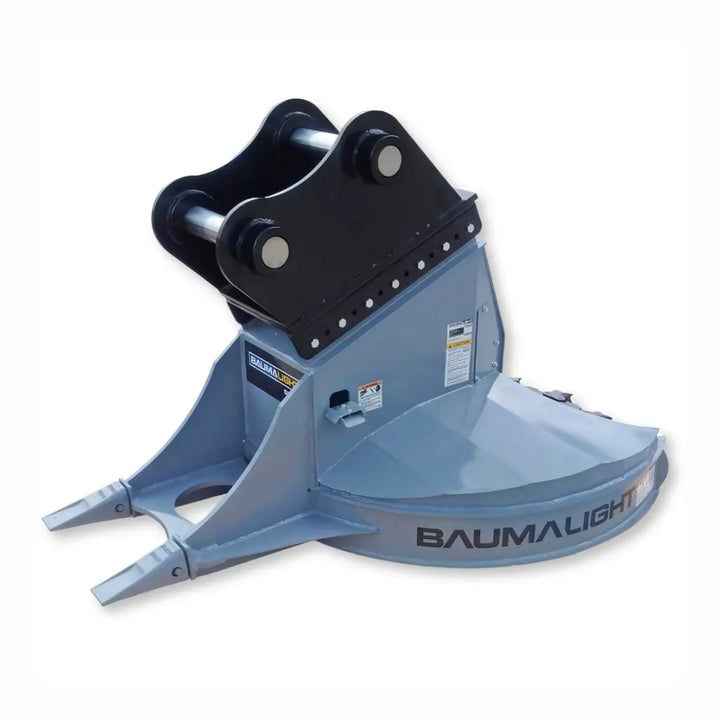

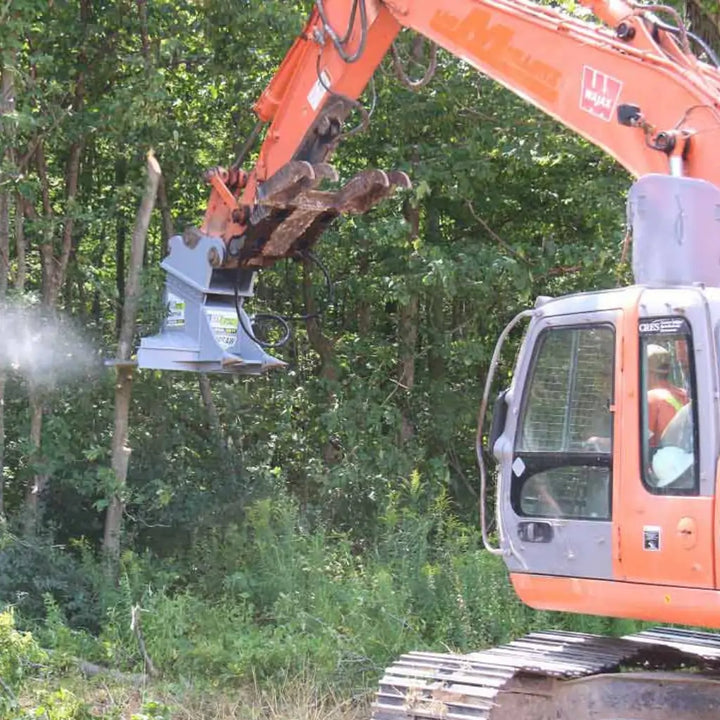

Baumalight DXH752 Tree Saw for 10-22 Ton Excavators

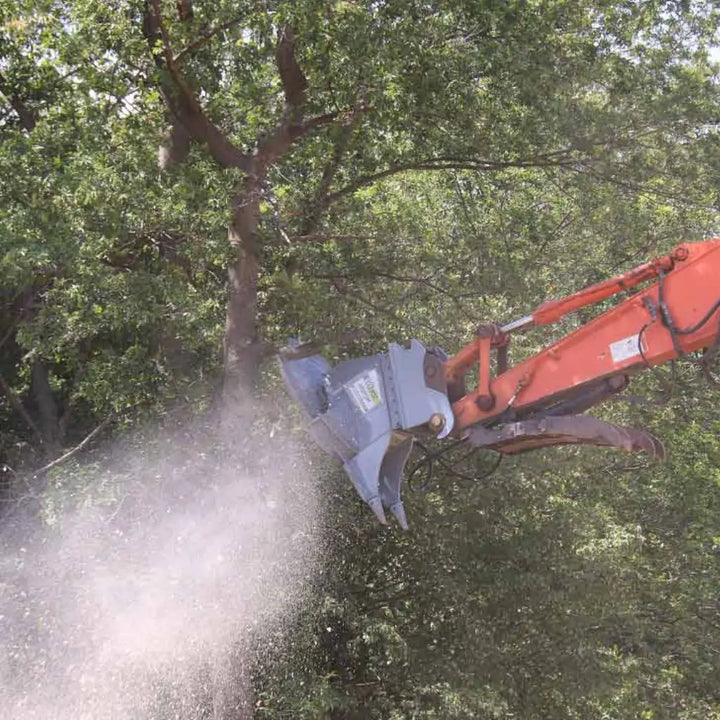

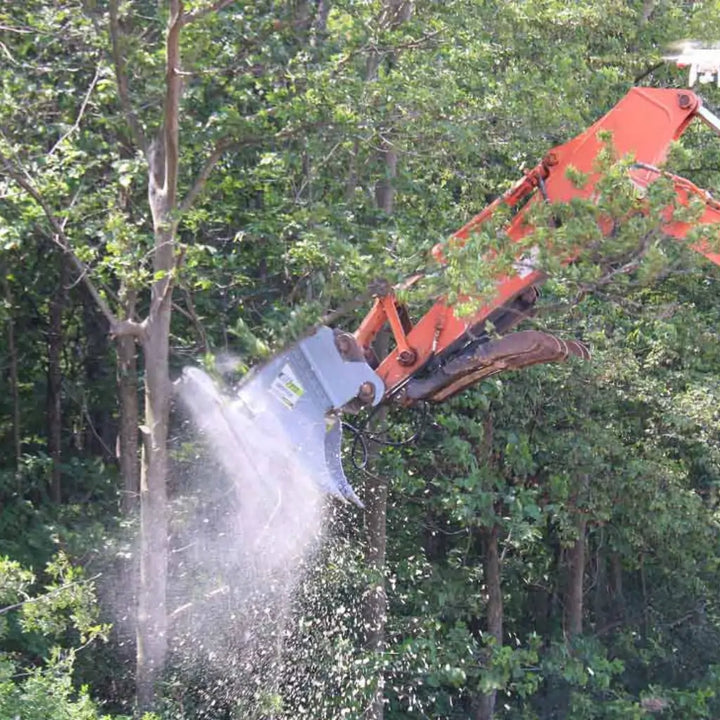

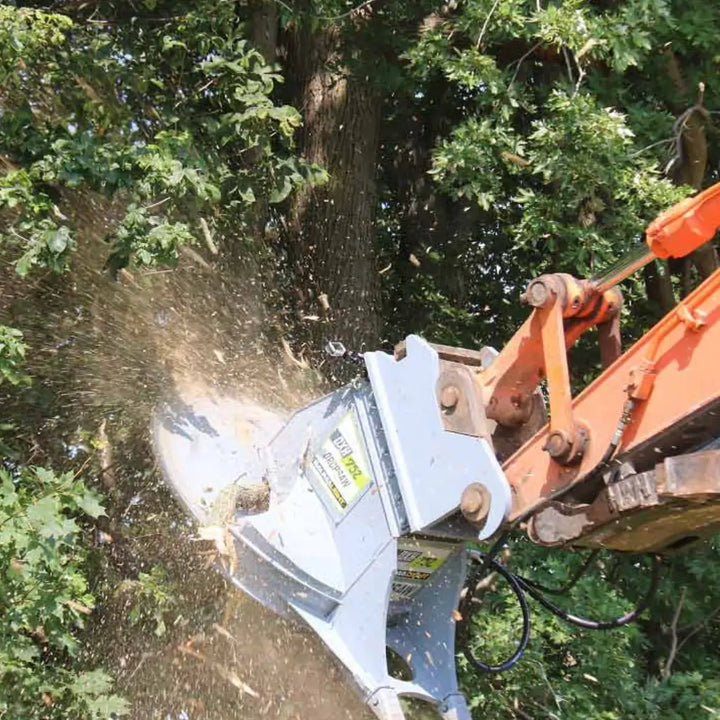

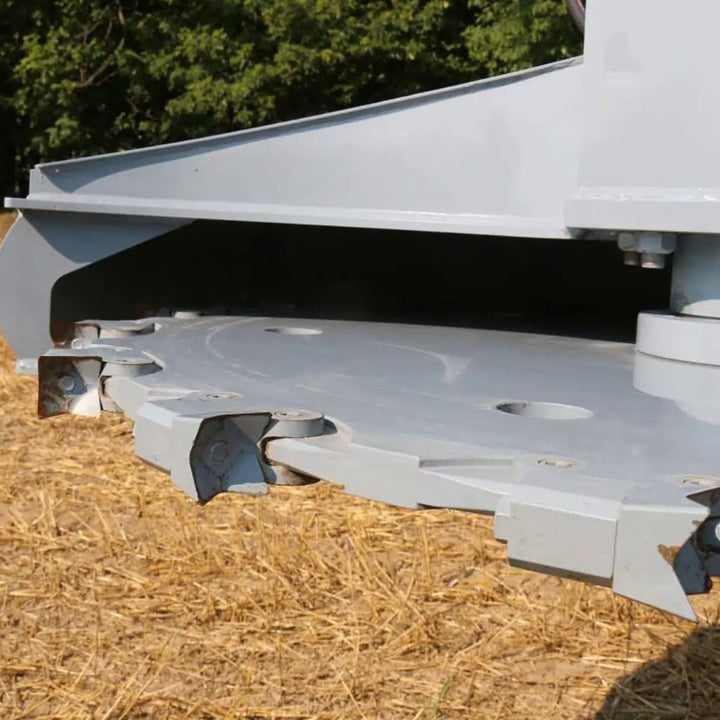

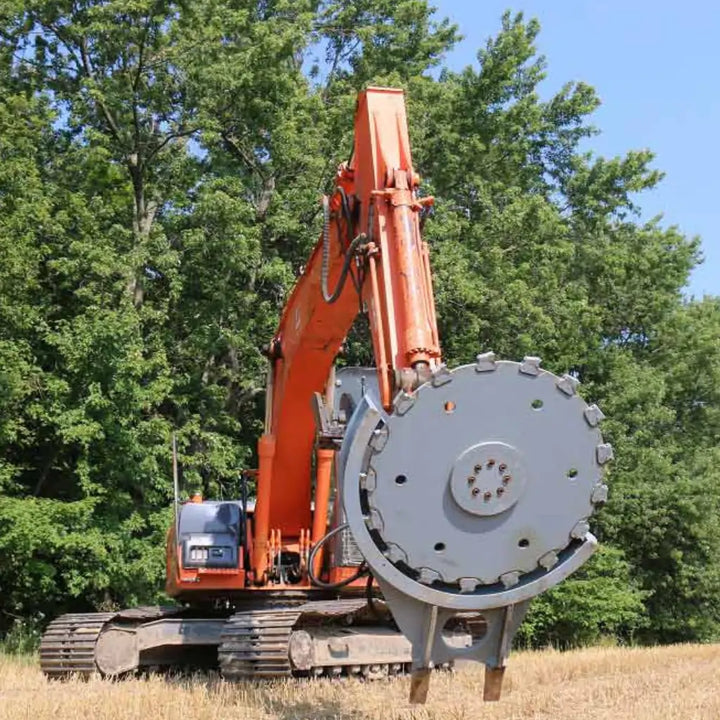

The Baumalight DXH752 is a high-performance, hydraulically driven tree saw engineered for 10–22 ton excavators. Its robust 52" blade, equipped with replaceable Beaver teeth, is ideal for demanding applications like pasture maintenance, right-of-way clearing, and commercial land clearing. With customizable hydraulic motor options to match your excavator’s flow rate, the DXH752 ensures optimal performance and compatibility. Built to deliver durability, efficiency, and consistent results, it's a dependable tool for serious clearing jobs.
✔️ Lead Time Estimated at 5 Weeks
✔️ Financing Options Available
✔️ Manufacturer Warranty Included
✔️ Lead Time Estimated at 5 Weeks
✔️ Financing Options Available
✔️ Manufacturer Warranty Included
Attachment Specifications
| Model # | DXM530 | DXA530 | DXD752 | DXH752 |
|---|---|---|---|---|
| Adaptor | Bolt-on | Bolt-on | Bolt-on | Bolt-on |
| Maximum Carrier Ton | 12 | 12 | 22 | 22 |
| Minimum Carrier Ton | 4 | 4 | 10 | 10 |
| Blade Angle | 180° | 180° | 360° | Horizontal |
| Rotation | Manual | Actuator | Actuator | Fixed |
| Actuator | - | Helical | Slew Drive | - |
| GPM | 10-40 | 10-45 | 25-60 | 25-60 |
| PSI | 5,000 | 5,000 | 5,000 | 5,000 |
| Electrical AUX | Not required | 2 ON/OFF pins & G | 2 ON/OFF pins & G | Not required |
| Hydraulic Hose | Not Supplied | Not Supplied | Not Supplied | Not Supplied |
| Hydraulic Couplers | Not Supplied | Not Supplied | Not Supplied | Not Supplied |
| Motor Type | Bend Axis Piston | Bend Axis Piston | Bend Axis Piston | Bend Axis Piston |
| Motor cc | 47 | 47 | 108 | 108 |
| Motor Option | T530 | T530 | T590 | T590 |
| Blade Diameter | 30" | 30" | 52" | 52" |
| Max Cut | 10" | 10" | 20" | 20" |
| Blade Material | 1/2" AR400 Blade | 1/2" AR400 Blade | 3/4" Steel Blade | 3/4" Steel Blade |
| Cut Thickness | 3/4" | 3/4" | 1-5/8" | 1-5/8" |
| Tooth Part number | H3000 | H3000 | B8000 | B8000 |
| Type of Teeth | High Speed Teeth | High Speed Teeth | Beaver | Beaver |
| No. of Edges per Tooth | 3 | 3 | 4 | 4 |
| Number of Teeth | 12 | 12 | 18 | 18 |
| Unit Shipping Weight | 652 lbs | 620 lbs | 2380 lbs | 1808 lbs |
Machine Compatibility
Not sure if the attachment you're considering will fit your machine? Here’s a complete guide to ensuring attachment compatibility.
1. Attachment Mounting Type
Your machine’s mounting plate must match the attachment’s plate for a proper fit. While most manufacturers now follow a "universal" standard, making many attachments interchangeable, there are still exceptions—so always double-check compatibility.
2. Hydraulic Connections and Flow Rate
If the attachment requires hydraulics, ensure that both the machine and attachment have compatible hydraulic couplers. Additionally, the machine’s auxiliary hydraulic flow rate must fall within the attachment’s required range. If the attachment doesn’t use hydraulics, you can skip this step.
3. Machine Lift Capacity
Your machine’s rated operating capacity (ROC) must be able to handle the attachment’s weight. For attachments like buckets and concrete mixers, don’t forget to factor in the weight of the material they’ll be carrying to avoid exceeding your machine’s limits.
If you're unsure about your machine's make or model, check your operator's manual or consult your equipment dealer.
