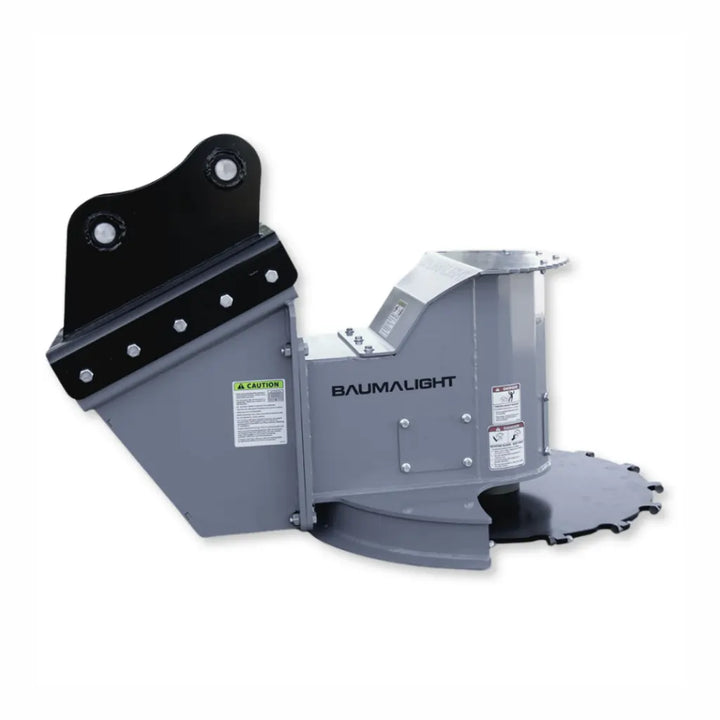

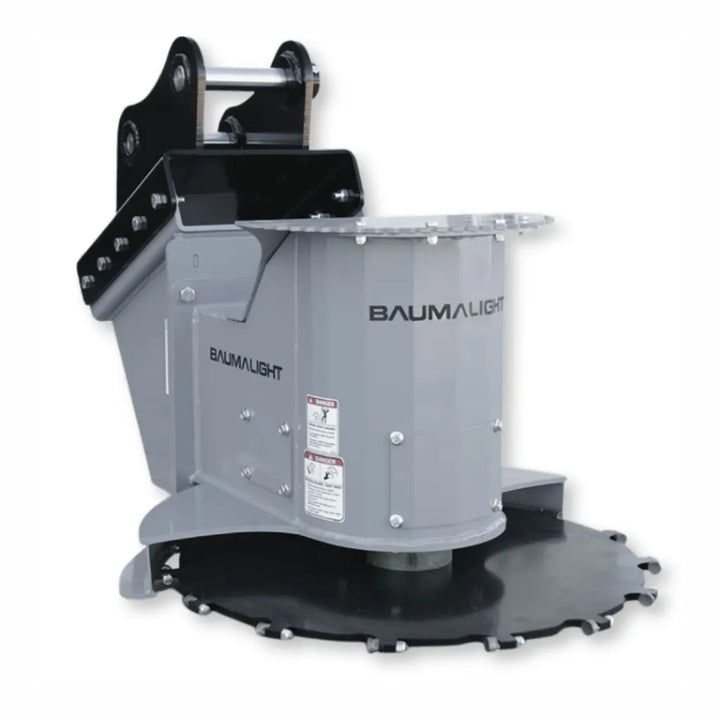

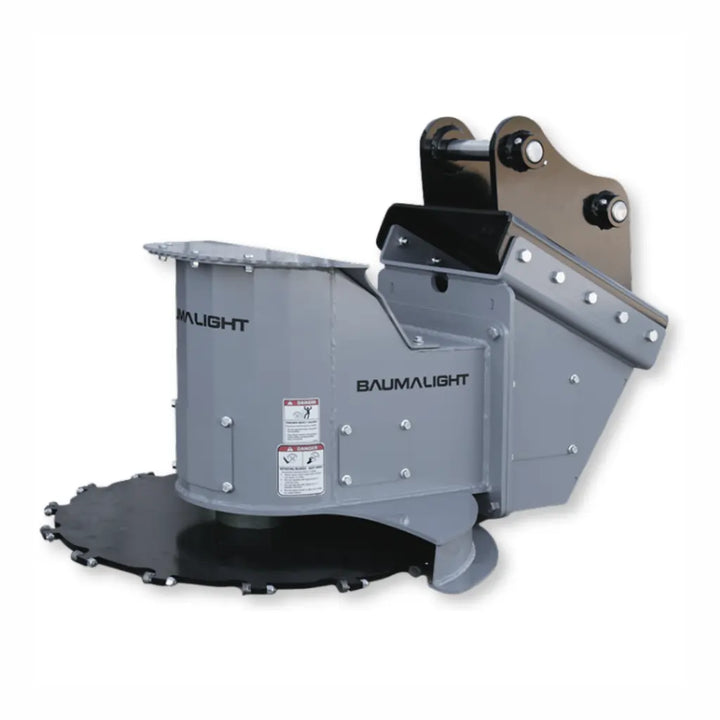

Baumalight DXM530 Tree Saw for 4-12 Ton Excavators
The Baumalight DXM530 hydraulic tree saw brings precision and durability to forestry and landscaping projects. Designed for excavators, it features a 90° manually rotating cutting head for flexible operation in tight or angled spaces. Its AR400 steel blade, paired with replaceable high-speed carbide teeth, ensures clean cuts and long-lasting performance. Heavy-duty construction, internal hose routing, and bolt-on adaptors minimize downtime and maximize efficiency on the job. Built to withstand tough environments, the DXM530 delivers reliable cutting power where and when you need it.
✔️ Ready To Ship - In Stock
✔️ Price Match Guarantee
✔️ 6 Free Replacement Teeth
✔️ Manufacturer Warranty Included
✔️ Ready To Ship - In Stock
✔️ Price Match Guarantee
✔️ 6 Free Replacement Teeth
✔️ Manufacturer Warranty Included
Attachment Specifications
| Model # | DXM530 | DXA530 | DXD752 | DXH752 |
|---|---|---|---|---|
| Adaptor | Bolt-on | Bolt-on | Bolt-on | Bolt-on |
| Maximum Carrier Ton | 12 | 12 | 22 | 22 |
| Minimum Carrier Ton | 4 | 4 | 10 | 10 |
| Blade Angle | 180° | 180° | 360° | Horizontal |
| Rotation | Manual | Actuator | Actuator | Fixed |
| Actuator | - | Helical | Slew Drive | - |
| GPM | 10-40 | 10-45 | 25-60 | 25-60 |
| PSI | 5,000 | 5,000 | 5,000 | 5,000 |
| Electrical AUX | Not required | 2 ON/OFF pins & G | 2 ON/OFF pins & G | Not required |
| Hydraulic Hose | Not Supplied | Not Supplied | Not Supplied | Not Supplied |
| Hydraulic Couplers | Not Supplied | Not Supplied | Not Supplied | Not Supplied |
| Motor Type | Bend Axis Piston | Bend Axis Piston | Bend Axis Piston | Bend Axis Piston |
| Motor cc | 47 | 47 | 108 | 108 |
| Motor Option | T530 | T530 | T590 | T590 |
| Blade Diameter | 30" | 30" | 52" | 52" |
| Max Cut | 10" | 10" | 20" | 20" |
| Blade Material | 1/2" AR400 Blade | 1/2" AR400 Blade | 3/4" Steel Blade | 3/4" Steel Blade |
| Cut Thickness | 3/4" | 3/4" | 1-5/8" | 1-5/8" |
| Tooth Part number | H3000 | H3000 | B8000 | B8000 |
| Type of Teeth | High Speed Teeth | High Speed Teeth | Beaver | Beaver |
| No. of Edges per Tooth | 3 | 3 | 4 | 4 |
| Number of Teeth | 12 | 12 | 18 | 18 |
| Unit Shipping Weight | 652 lbs | 620 lbs | 2380 lbs | 1808 lbs |
Key Features - DXM530
MANUAL ROTATING CUTTING HEAD
Effectively switch from horizontal tree cutting position to vertical trimming and limbing position with the 90-degree manual rotating head. Simply remove the 4 bolts at the base of the cutting head, rotate the unit 90 degrees to the left or right and then secure the bolts.
HEAVY DUTY BUILD
The tree saw’s durable design and quality materials combine to create a saw that is able to stand up to the demanding work of cutting limbs and trees.
BLADE MOUNTED ON HEAVY DUTY BEARING SUPPORT
The tree saw's blade is mounted on an overhung load adapter, which is designed with tapered roller bearings and built to stand up to the rigors of sawing limbs and trees. The overhung load adapter keeps the blade spinning in the toughest trimming conditions.
SAW BLADE SHIELDING
The durable shield encloses the blade for protection, directing the chips as it easily cuts through limbs and trees.
DESIGNED FOR MAXIMUM VISIBILITY
Making sure you have the best seat in the house, the tree saw was designed with maximum visibility in mind, allowing you to make cleaner and better cuts.
EASY ACCESS PANELS FOR SERVICE
Built for the long haul, the tree saw has multiple removable panels for easier access and servicing.
CLEAN CUTS
The tree saw makes clean work of limbing and trimming trees safely and quickly, leaving pruned trees with a clean cut.
BETTER ACCESS
Excavators can also go where tractors and skid steers cannot, giving you and your tree saw access to areas that had to be cleared by hand in the past. Now you can quickly and cleanly trim, limb and cut more efficiently than before.
BOLT-ON EXCAVATOR ADAPTOR
Our bolt-on mounting adaptors provide strength and future flexibility. If needed, your tree saw can easily be bolted to another adaptor to mount to your new excavator.
AVAILABLE WITH GEAR MOTOR OR BENT AXIS PISTON MOTOR
Gear motors are a good cost effectvie choice for the average user and our Industry leading bent axis piston motors make the most efficient use of your hydraulic flow and pressure for pruning, trimming and land clearing. Built to last, these reliable motors can double the power of your output flow.
CASE DRAIN – VENT TO ATMOSPHERE
To prevent pressure relief activation on the motor seal, the DXM530 comes with a case drain line and a vent to atmosphere relief valve. In the event there is a spike in pressure in your hydraulic lines, the case drain will relieve the pressure and drain it back into the return line and back to the tank. If the connection of the case drain (third line) is missed or if the line is blocked, then the case drain will vent to notify you. A properly installed case drain protected by a vent to atmosphere relief valve will save the work of replacing your shaft seal and save you from down time of unexpected maintenance. To learn more CLICK HERE about the case drain line.
PROTECTIVE POWDER COAT FINISH
Heavy duty construction and a durable powder coated finish.
FRONT PUSH BAR
A solid serrated steel plate up front helps guide limbs, branches and small trees safely away from the operator.
INTERNAL HOSE ROUTING
All of the hydraulic hoses on the DropSaw are sleeved for operator and hose protection while the connecting hoses are sleeved and wrapped in hose armour for double protection. The hoses are then routed internally, keeping them out of harm’s way. The DropSaw also features a pivoting arm with a greaseable pin keeping the slack out of the way which protects the hoses from dangerous pinching and strain.
AR400 STEEL BLADE
The tree saw’s heavy duty circular blade is designed and shaped from AR-400 steel. This abrasion resistant steel is rugged and ready for the abuse of a long service life.
6 FREE TEETH
All DXM530 Tree saw comes with a free set of 6 replacement teeth. These replacement teeth are conveniently shipped in a robust enclosed compartment on top of the frame.
HIGH SPEED TEETH
The concave shaped carbide tip of our High Speed Teeth provide aggressive cutting action by chipping the brush bit by bit. This round tooth is 3 teeth in 1. Simply loosen the lock nut and rotate the tooth to a fresh, sharp cutting edge. This can be done three times, extending the life of each tooth.
EASY TEETH CHANGING
The high speed teeth design allows for easy rotation and changing of the teeth as needed.
Stump Cutting Time Chart - DXM530
Stump Cutting Time for 10" Limb
| MOTOR | MOTOR TYPE |
CC | CASE DRAIN | RPM AT MAX GPM |
PSI | 9 GPM |
12 GPM |
15 GPM |
20 GPM |
25 GPM |
30 GPM |
40 GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T530 | Piston | 47 | Critical | 2600 | 4,000 | 20sec | 12sec | 10sec | 8sec | 5sec | 5sec | 5sec |
Machine Compatibility
Not sure if the attachment you're considering will fit your machine? Here’s a complete guide to ensuring attachment compatibility.
1. Attachment Mounting Type
Your machine’s mounting plate must match the attachment’s plate for a proper fit. While most manufacturers now follow a "universal" standard, making many attachments interchangeable, there are still exceptions—so always double-check compatibility.
2. Hydraulic Connections and Flow Rate
If the attachment requires hydraulics, ensure that both the machine and attachment have compatible hydraulic couplers. Additionally, the machine’s auxiliary hydraulic flow rate must fall within the attachment’s required range. If the attachment doesn’t use hydraulics, you can skip this step.
3. Machine Lift Capacity
Your machine’s rated operating capacity (ROC) must be able to handle the attachment’s weight. For attachments like buckets and concrete mixers, don’t forget to factor in the weight of the material they’ll be carrying to avoid exceeding your machine’s limits.
If you're unsure about your machine's make or model, check your operator's manual or consult your equipment dealer.
Need Assistance?
If you’re having trouble or need help confirming compatibility, feel free to contact our support team. We're here to assist you!
