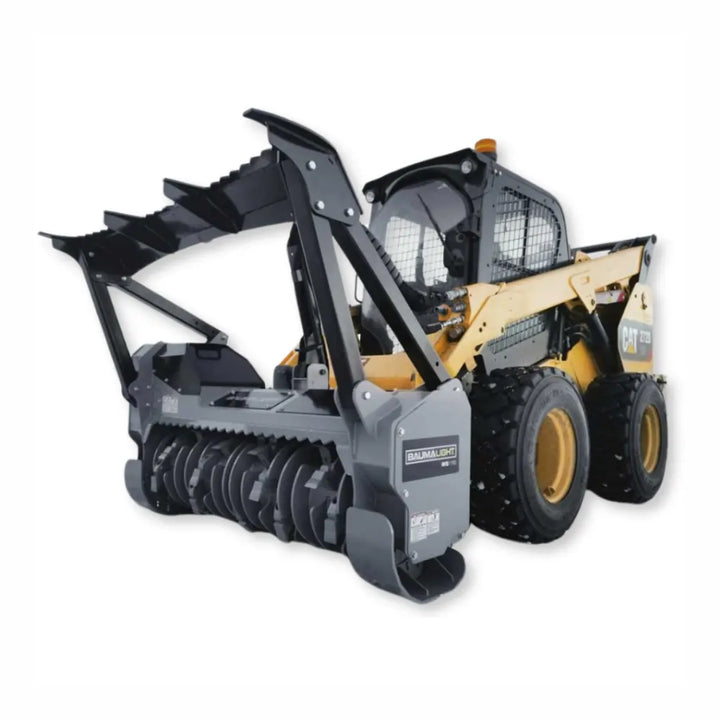

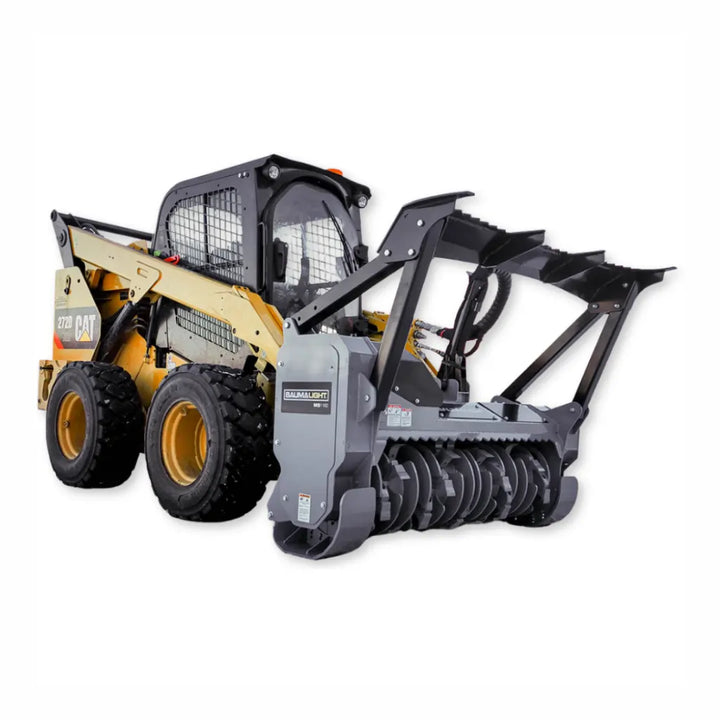

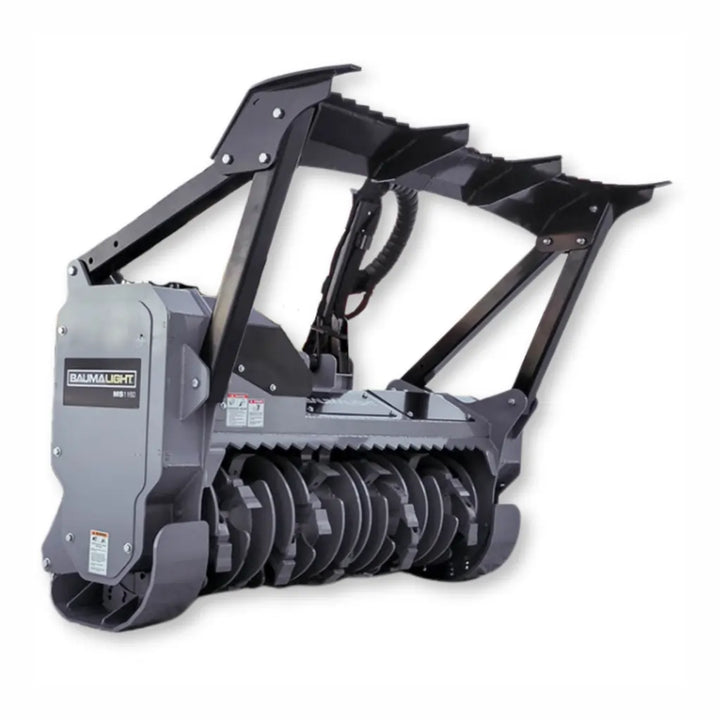

Baumalight MS1160 Heavy Duty Fixed Tooth Brush Mulcher For Skid Steers
Conquer tough terrain with the Baumalight MS1160 Heavy Duty Fixed Tooth Mulcher, engineered for skid steers over 7,000 lbs. With a 75" cutting path and 31 sharpenable Planer teeth, this powerhouse attachment is built for high-capacity mulching. Innovative mulcher rings help manage larger material with greater control and efficiency, making it an ideal solution for extensive land clearing, right-of-way maintenance, and demanding vegetation control.
✔️ Lead Time Estimated at 5 Weeks
✔️ Price Match Guarantee
✔️ 6 Free Replacement Teeth
✔️ Manufacturer Warranty Included
✔️ Lead Time Estimated at 5 Weeks
✔️ Price Match Guarantee
✔️ 6 Free Replacement Teeth
✔️ Manufacturer Warranty Included
Attachment Specifications
| Model No. | MS348 | MS548 | MS560 | MS572 | MS960 | MS972 | MS1160 |
|---|---|---|---|---|---|---|---|
| Path Width | 60" | 62" | 75" | 87" | 75" | 84" | 75" |
| Rotor Width | 48" | 48" | 60" | 72" | 60" | 72" | 60" |
| Minimum carrier weight | 3,000 | 4,000 | 5,500 | 6,000 | 7,000 | 7,500 | 7,000 |
| Cutting Depth | Level | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | 1.5" Above to 2" Below Grade | 1.5" Above to 2" Below Grade | 1.125" Above to 2.375" Below Grade |
| Holder Style | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Tool Style | High Speed Teeth | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Double Tipped | Double Tipped | Sharpenable Planer |
| Tooth Part number | H3000 | P5000 | P5000 | P5000 | R9000 | R9000 | P11000 |
| Number of cutters | 60 | 72 | 92 | 112 | 38 | 43 | 31 |
| Rotor Diameter (tool tips) | 15" | 15" | 15" | 15" | 18.5" | 18.5" | 19.3" |
| Rotor Weight (with tools) | 230 lbs | 480 lbs | 575 lbs | 700 lbs | 860 lbs | 1,105 lbs | 860 lbs |
| Case Drain | Not important | See motor options | Critical | Critical | Critical | Critical | Critical |
| Hydraulic Couplers | Included | Not Included | Not Included | Not Included | Not Included | Not Included | Not Included |
| Unit Shipping Weight | 950 lbs | 1491 lbs | 2115 lbs | 2266 lbs | 2975 lbs | 3115 lbs | 2800 lbs |
Key Features - MS1160
REPLACEABLE BOLT-IN LINER
Save time by easily replacing the AR400 steel wear plates on the MS1160 without needing to remove the rotor.
Integrated push bar
When push comes to shove, the integrated push bar helps control
Directional felling hook
Built into the pusher bar, the directional felling hook will directionally control wayward trees, sprawling clumps and low hanging limbs.
ADJUSTABLE SKID SHOES
Adjustable skid shoes allow the operator to adjust the cutting height for optimal clearing performance.
ROLL BACK TO FELL STANDING TREES
The MS1160’s frame is angled so that you can roll back the Brushy Mulcher, pulling back the pusher bar so that you can fully engage the mulching head. This allows the operator to use the mulching head to fell standing trees.
SPRING LOADED HOSE SUPPORT
Take full advantage of the forward curl and roll back of the MS1160 without risking expensive damage to the hoses. Unique to the Baumalight Brush Mulcher, the spring loaded hose support prevents the hoses from falling into harm’s way during forward curl.
CURVED HOSE BRACKET
The new curved host bracket provides better support of the hose while reducing the risk of pinching or chafing.
ARMOURED AND SLEEVED
Baumalight hoses are sleeved for the operator and hose protection. A pivoting arm is also standard with a greasable pin keeping the slack out of the way which protects the hoses from dangerous pinching and strain.
CENTERED ADJUSTABLE HOSE SUPPORT
To accomodate for different skidsteers that have the couplers on different sides, the MS1160's hose support is positioned close to the centre of the mulching head and has an adjustable hose.
ADJUSTABLE BELT TENSIONER
The adjustable belt tensioner ensures the proper tension of your belts, with no extra idler wheel that could wear out. Simply loosen the bolts and raise the motor mount to tighten the belt.
OPTIONAL TWO-SPEED MOTOR
To maximize the rotor speed and torque to account for changing mulching material, the MS1160 is available with a variable two-speed motor option.
BENT AXIS PISTON MOTORS ARE A STANDARD OPTION
Our industry leading bent axis piston motors make the most use of your hydraulic flow and pressure for your brush clearing needs.
PRESSURE GUAGE
Large PSI pressure guage for maintaining the optimal flow that gives you a clear indication of the most efficient brush mulching performance.
CASE DRAIN – VENT TO ATMOSPHERE
To prevent pressure relief activation on the motor seal, the MS1160 comes with a case drain line and a vent to atmosphere relief valve. In the event there is a spike in pressure in your hydraulic lines, the case drain will relieve the pressure and drain it back into the return line and back to the tank. If the connection of the case drain (third line) is missed or if the line is blocked, then the case drain will vent to notify you. A properly installed case drain protected by a vent to atmosphere relief valve will save the work of replacing your shaft seal and save you from down time of unexpected maintenance. To learn more CLICK HERE about the case drain line.
Wire Protection Kit
If you are mulching and you catch some old fence wire, it can really cause damage to the unit if the wire slips over the edge of the rotor and gets wrapped around the shaft. The wire can get bunched against the bearings, causing major damage. Our wire protection kit contains a welded raised area on the end of the rotor that protects the shaft and prevents wire from getting in.
Chain Curtain
The rear of the unit is guarded by a 3/8” thick chain curtain so standing brush enters and mulched debris exits.
heavy duty frame
Now completely redesigned for the 1100 series Brush Mulcher, the heavy duty steel frame is constructed with T1 alloy tool steel sheet metal.
HEAVY DUTY SKIDSTEER PLATE
Also redesigned for the 1100 Series Brush Mulcher, the skidsteer plate is constructed with heavy duty steel with lots of gusseting and reinforcements.
Powdered Coated
Our powder coat finish is much tougher than conventional paint to stand up to the rigors of mulching and helps prevent rusting.
STEP GRIP IN FRAME
The powder coated frame has multiple anti-slip pads and laser cut steps, giving the operator a secure footing for easy entry and exit from the cab.
6 FREE TEETH
All MS1160 Brush Mulchers come with a free set of 6 replacement teeth. These replacement teeth can be convenienty stored in the enclosed spare tool compartment.
OPTIONAL 900 SERIES RIPPER TEETH
The 11000 Series teeth can be changed out; Planer and Ripper. The Planer style teeth take small bites and provide the most efficient mulching and cutting. The Ripper style teeth have more of a shredding mulching action. Their double tipped V-shaped design makes them less susceptible to impacts with hard objects like stones, making them the better choice when mulching below grade and in fence lines. Both styles are Bolt-on replaceable for quick and easy servicing and replacement even in the field.
All units are shipped with Standard P11000 Series Planer Teeth only because they are mounted for the rotor balancing process. Ripper teeth can be installed by the end user once the planer teeth need replacing. 1100 Series units can not be operated with a mix of Planer and Ripper teeth; the entire set must be changed out and operators do need to be prepared that there might be a slight increase in vibration after switching styles of teeth.
BITE LIMITING ROTOR FOR 11000 SERIES
The Depth Control system on the Baumalight 1100 series mulchers will improve the efficiency of your land-clearing operations. The 1100 series mulcher rotors are engineered to regulate the depth of bite and guide the flow of material while preserving energy for optimal output with less stalling because you can achieve consistent particle size for faster cutting, and better fuel efficiency.
The helical teeth arrangement of our mulcher effectively feeds material toward the center of the drum, while depth control rings guarantee the best possible infeed.
P11000 tooth sharpening gauge
Each 1100 series mulcher ships with a sharpening gauge so you can check and make sure the angle stays correct from time to time
ENHANCED operator VISIBILITY
The improved design of the MS1160 mulcher head now allows the operator better visibility to the area you are mulching.
IMPROVED WEIGHT MANAGEMENT
To improve the weight management of the Brush Mulcher, the MS1160 is now designed with the rotor closer to the carrier. This unique design feature allows for smaller carriers to be able to manage a larger mulcher.
EASY ACCESS GREASE FITTINGS
Reduce your regular maintenance time by easily greasing the bearings on the MS1160 from outside the frame. No tools required.
Maximum Brush Cutting Sizes - MS1160
MAXIMUM BRUSH CUTTING SIZES
(Brush Diameter in Inches)
1100 Series
| MOTOR | PSI | CASE DRAIN | 20 GPM |
25 GPM |
30 GPM |
35 GPM |
40 GPM |
45 GPM |
50 GPM |
55 GPM |
60 GPM |
65 GPM |
70 GPM |
75 GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RPM | 1450 | 1800 | 2100 | |||||||||||
|
C1130 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | 4.5" 5" 5.5" 6.5" |
5.5" 6" 6.5" 7" |
6.5" 7" 7.5" 8" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1500 | 1800 | 2100 | |||||||||||
|
C1140 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | -- -- -- -- |
6.25" 6.75" 7.25" 7.75" |
8.25" 8.5" 8.75" 9" |
8.5" 9" 9.5" 10" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1600 | 1875 | 2140 | |||||||||||
|
C1150 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
8.5" 9" 9.5" 9.75" |
10" 10.5" 11" 11.5" |
10.5" 11" 11.5" 12" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1400 | 1630 | 1830 | 2030 | ||||||||||
|
C1170 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
9.5" 10" 11.5" 12" |
10" 10.5" 11" 11.5" |
11.5" 12" 12.5" 13" |
12" 12.5" 13" 13.5" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1400 | 1570 | 1750 | 1900 | ||||||||||
|
C1190 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
10" 10.5" 11" 11.5" |
12.5" 13" 13.5" 14.5" |
14" 14.5" 15" 15.5" |
14.5" 15" 15.5" 16.5" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | Adjustable | |||||||||||||
|
D117X2 Two speed |
2500 3000 3500 4000 |
Critical | 5.5" 6.25" 6.75" 8" |
7.75" 8.25" 9" 9.5" |
10.5" 11.25" 11.5" 12" |
12.5" 13" 13.5" 14.25" |
13" 13.75" 14.25" 15" |
14.25" 15" 15.5" 16.25" |
15.5" 16.25" 16.75" 18" |
17.5" 18" 18.75" 19.25" |
18" 18.75" 19.25" 20.5" |
19" 19.75" 20.25" 21.5" |
20" 20.75" 21.25" 22.5" |
21" 21.75" 22.25" 23.5" |
Machine Compatibility
Not sure if the attachment you're considering will fit your machine? Here’s a complete guide to ensuring attachment compatibility.
1. Attachment Mounting Type
Your machine’s mounting plate must match the attachment’s plate for a proper fit. While most manufacturers now follow a "universal" standard, making many attachments interchangeable, there are still exceptions—so always double-check compatibility.
2. Hydraulic Connections and Flow Rate
If the attachment requires hydraulics, ensure that both the machine and attachment have compatible hydraulic couplers. Additionally, the machine’s auxiliary hydraulic flow rate must fall within the attachment’s required range. If the attachment doesn’t use hydraulics, you can skip this step.
3. Machine Lift Capacity
Your machine’s rated operating capacity (ROC) must be able to handle the attachment’s weight. For attachments like buckets and concrete mixers, don’t forget to factor in the weight of the material they’ll be carrying to avoid exceeding your machine’s limits.
If you're unsure about your machine's make or model, check your operator's manual or consult your equipment dealer.
Need Assistance?
If you’re having trouble or need help confirming compatibility, feel free to contact our support team. We're here to assist you!
Shipping Information
We are partnered with trusted freight carriers to deliver your LTL shipments as quick as possible. Most orders are delivered within 3-5 business days after leaving the manufacturer's warehouse. Please look at the top of each product page to see if there is a manufacturer lead time for the particular item you are looking at. We’re happy to coordinate special services like liftgate delivery or terminal pickup upon request. Simply reach out to us on using one of our contact methods and we will have it taken care of for you. Smaller items will be shipped out using FedEx, UPS and USPS.
Warranty Information
At CarsonAttachments.com, all products are sold with the manufacturer’s warranty unless stated otherwise. Warranty details for specific products can be found on their respective manufacturers warranty pages. Carson Attachments does not provide any additional warranties beyond those offered by the manufacturer.
However, if you need to file a warranty claim, we’re here to help. Carson Attachments will advocate on your behalf and assist with the initial claim processing before submitting it to the manufacturer. To begin the process, please contact us at Sales@CarsonAttachments.com and include the necessary details typically required by manufacturers for warranty claims.
