As an authorized retailer of Baumalight, we are proud to offer a full line of powerful, Canadian-engineered attachments designed to take on the toughest land clearing, forestry, and construction tasks. Known for their innovative design and robust performance, Baumalight attachments are built with a strong commitment to quality, durability, and real-world functionality. Baumalight delivers the rugged, reliable tools you need to boost productivity and tackle any job with confidence. Upgrade your equipment with Baumalight — attachments you can trust!

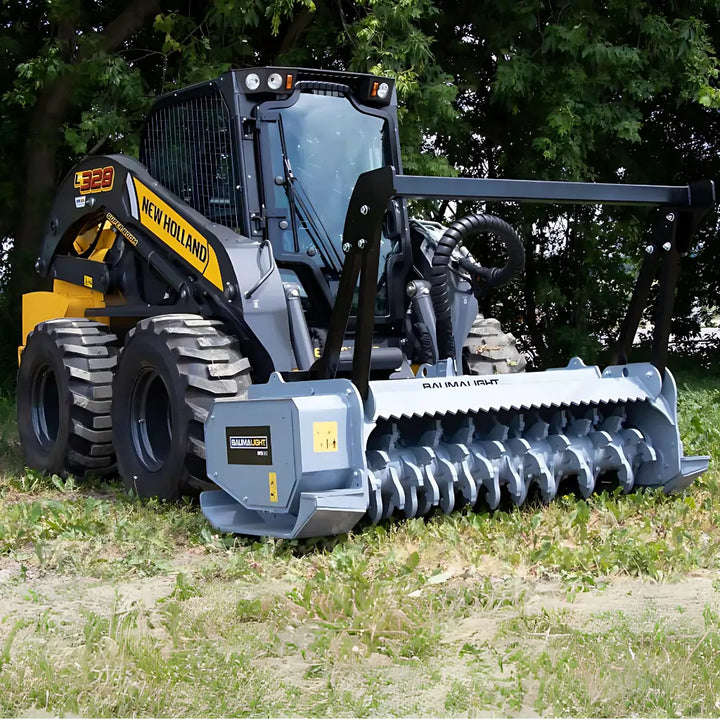

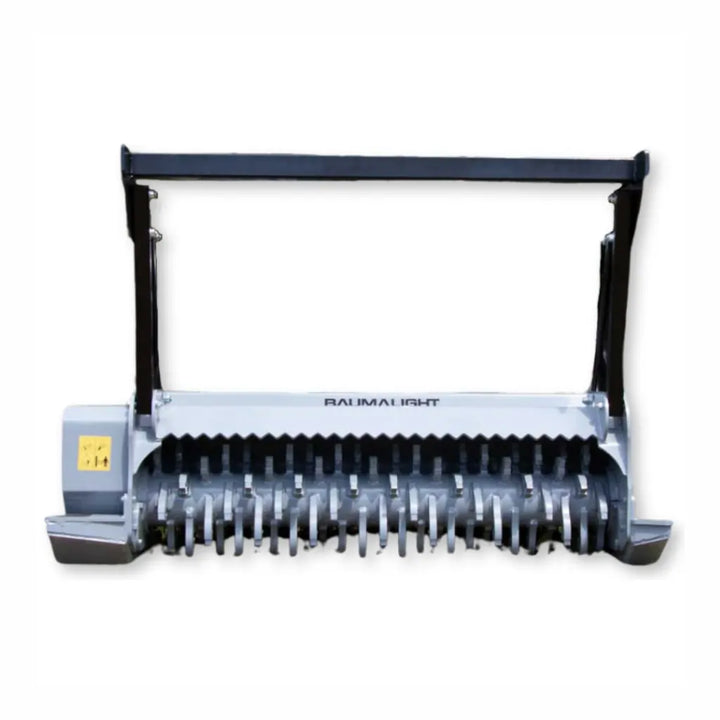

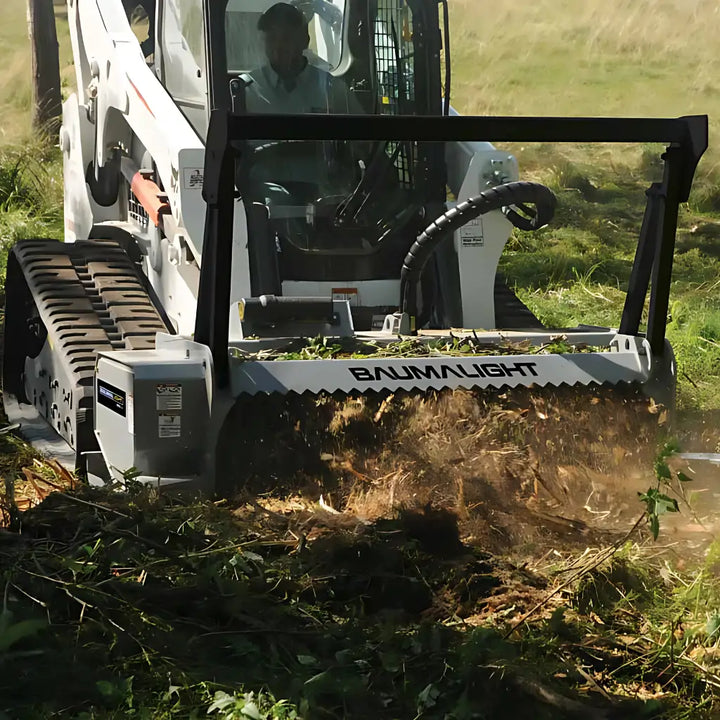

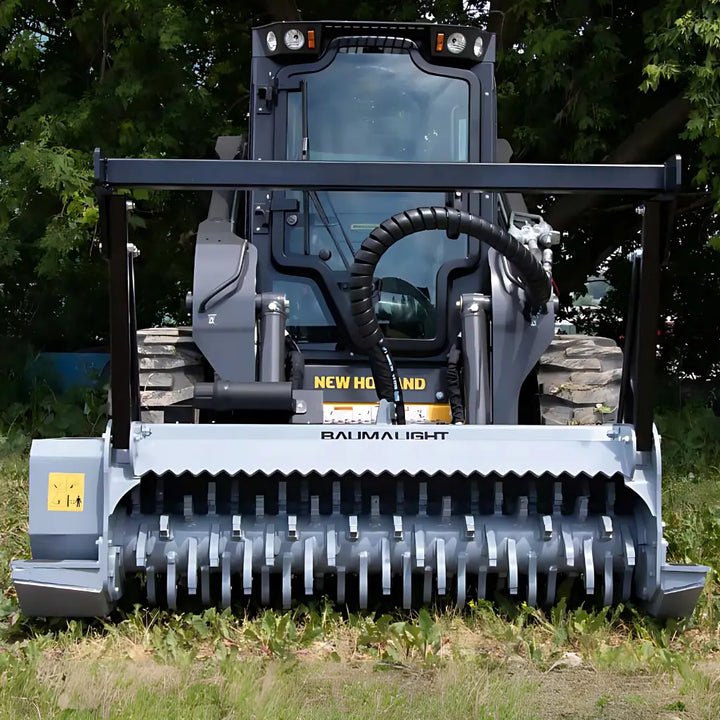

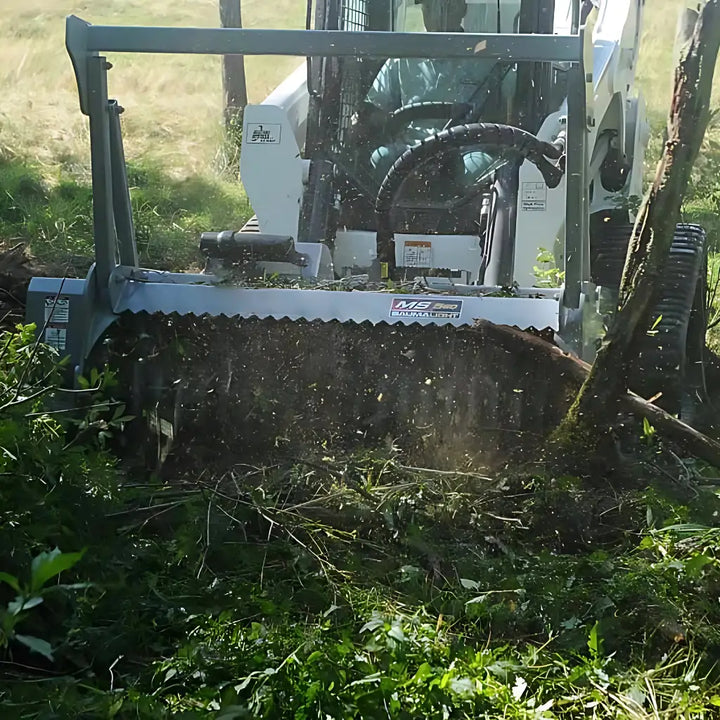

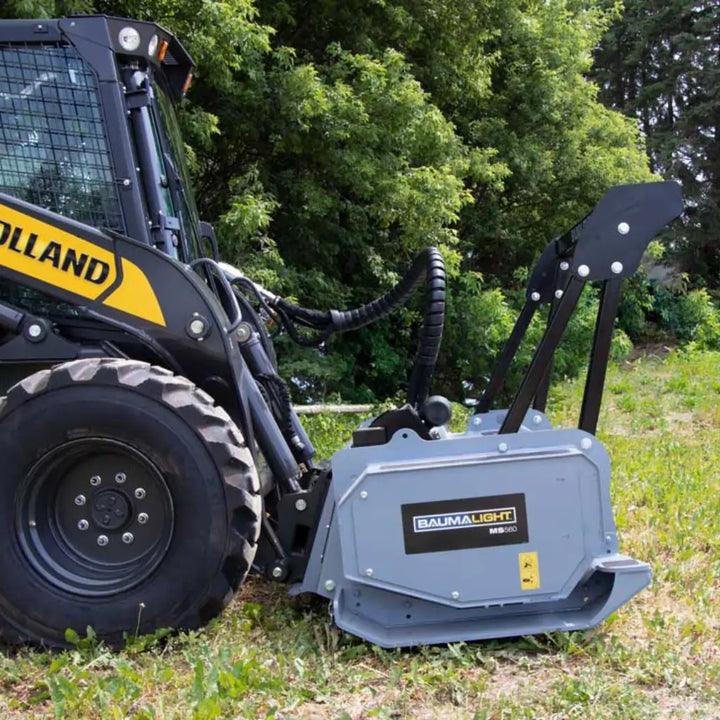

Baumalight MS560 Fixed Tooth Brush Mulcher For Skid Steers
Unlock the full potential of your skid steer with the Baumalight MS560 Fixed Tooth Mulcher. Designed for farm fence line maintenance and light contractor work, this powerful attachment tackles heavy brush and small trees with confidence. Choose between Planer teeth for smooth, efficient cutting or Ripper teeth for tough, impact-resistant shredding. A built-in pressure gauge helps operators stay within optimal performance range, reducing overload and increasing productivity in the field.
✔️ Ready To Ship - In Stock
✔️ Price Match Guarantee
✔️ 6 Free Replacement Teeth
✔️ Manufacturer Warranty Included
✔️ Ready To Ship - In Stock
✔️ Price Match Guarantee
✔️ 6 Free Replacement Teeth
✔️ Manufacturer Warranty Included
Attachment Specifications
| Model No. | MS348 | MS548 | MS560 | MS572 | MS960 | MS972 | MS1160 |
|---|---|---|---|---|---|---|---|
| Path Width | 60" | 62" | 75" | 87" | 75" | 84" | 75" |
| Rotor Width | 48" | 48" | 60" | 72" | 60" | 72" | 60" |
| Minimum carrier weight | 3,000 | 4,000 | 5,500 | 6,000 | 7,000 | 7,500 | 7,000 |
| Cutting Depth | Level | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | 1.5" Above to 2" Below Grade | 1.5" Above to 2" Below Grade | 1.125" Above to 2.375" Below Grade |
| Holder Style | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Tool Style | High Speed Teeth | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Double Tipped | Double Tipped | Sharpenable Planer |
| Tooth Part number | H3000 | P5000 | P5000 | P5000 | R9000 | R9000 | P11000 |
| Number of cutters | 60 | 72 | 92 | 112 | 38 | 43 | 31 |
| Rotor Diameter (tool tips) | 15" | 15" | 15" | 15" | 18.5" | 18.5" | 19.3" |
| Rotor Weight (with tools) | 230 lbs | 480 lbs | 575 lbs | 700 lbs | 860 lbs | 1,105 lbs | 860 lbs |
| Case Drain | Not important | See motor options | Critical | Critical | Critical | Critical | Critical |
| Hydraulic Couplers | Included | Not Included | Not Included | Not Included | Not Included | Not Included | Not Included |
| Unit Shipping Weight | 950 lbs | 1491 lbs | 2115 lbs | 2266 lbs | 2975 lbs | 3115 lbs | 2800 lbs |
Key Features - MS560
INTEGRATED PUSH BAR
The integrated brush bar helps control the brush and bend taller brush for easier mulching.
Adjustable skid shoes
These two position skid shoes allow you to adjust the cutting height for optimal clearing performance.
ARMOURED AND SLEEVED
Baumalight hoses are sleeved and double shielded for the operator and hose protection.
V-Notch
The force and impact of mulching often bends the teeth. Our V-Notch teeth and hardened holders hold the tooth firmly in place to absorb impacts from multiple directions.
Hardened Tooth Holders
These heavy-duty tooth holders resist bending and keep you working longer.
6 FREE TEETH
All MS560 Brush Mulchers come with a free set of 6 replacement teeth. These replacement teeth are conveniently shipped in a robust enclosed compartment on top of the frame.
Optional 500 Series Ripper Teeth
The 500 Series teeth come in two carbide tipped styles; Planer and Ripper. The Planer style teeth take small bites and provide the most efficient mulching and cutting. The Ripper style teeth have more of a shredding mulching action. Their v-shaped design makes them less susceptible to impacts with hard objects like stones, making them the better choice when mulching below grade and in fence lines. Both styles are Bolt-on replaceable for quick and easy servicing and replacement even in the field.
All units shipped with Standard P5000 Series Planer Teeth only and ripper teeth can be installed as the planer teeth need replacing. Units can be operated with a mix of Planer and Ripper teeth.

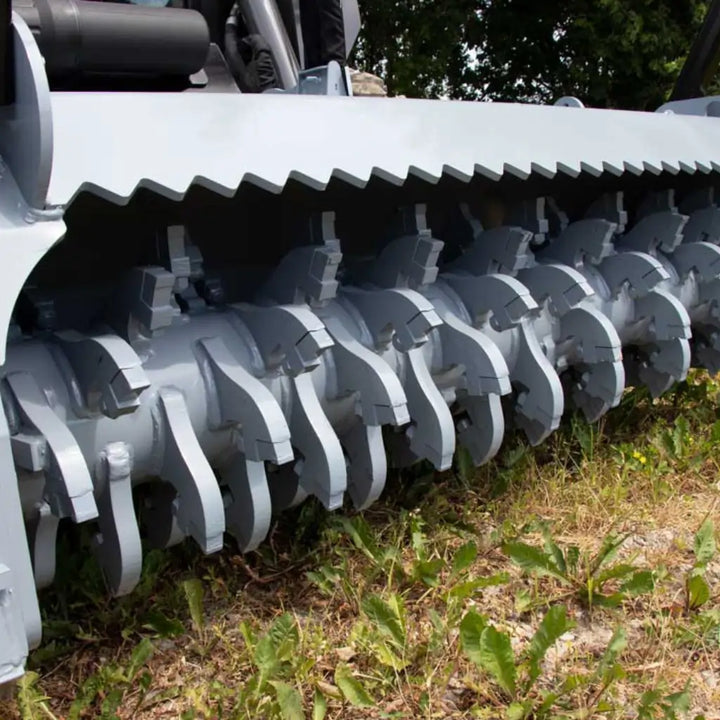

Spiral Tooth Pattern
For smoother mulching, the spiral tool pattern allows one tooth to engage at a time.
Overtorque Protection - Relief Valve
The relief valve protects the motor and the hydraulic system from pressure spikes. When an obstacle is hit the relief valves open and relieves the pressure.
Pressure Gauge
Large PSI pressure gauge for maintaining the optimal flow that gives you a clear indication of the most efficient brush mulching performance.
REINFORCED BELT
A heavy duty reinforced belt delivers the force from the gear box to the rotor. This offers protection from the shocks inherent in mulching.
Wire Protection Kit
Protective steel cover that prevents damage from wire fencing.
Chain Curtain
The rear of the unit is guarded by a chain curtain so standing brush enters and mulched debris exits.
heavy duty frame
Heavy duty frame with T1 alloy tool steel sheet metal for all the main areas. Powder coated frame with multiple anti-slip pads to give you secure footing for ease of entry and exit from your cab.
Powder Coated
Our powder coat finish is much tougher than conventional paint to stand up to the rigors of mulching and helps prevent rusting.
BENT AXIS PISTON MOTOR
Our industry leading bent axis piston motors make the most use of your hydraulic flow and pressure for your brush clearing needs.
VIEW OUR HELPFUL COUPLER SIZING CHART
Couplers must be ordered separately as we do not supply hydraulic couplers with product due to the variety carrier specifications. Click the link below.
Anti Slip Strip
For ease of entry and exit from the cab an anti-slip strip gives sure footing.
Hydraulic Flow & Pressure Database
For your convenience Baumalight has Developed a PSI Flow and Pressure database with over 1000 different carrier models to help you decide the best Baumalight model for your machine.
OverHung Load Adapter (bearing support)
Baumalight mulchers use an overhung load adapter which is designed with tapered roller bearings to stand up to the rigors of heavy mulching.
Maximum Brush Cutting Size - MS560
MAXIMUM BRUSH CUTTING SIZES
(Brush Diameter in Inches)
500 Series
| MOTOR | PSI | CASE DRAIN | 8 GPM |
12 GPM |
15 GPM |
20 GPM |
25 GPM |
30 GPM |
35 GPM |
40 GPM |
45 GPM |
50 GPM |
55 GPM |
60 GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RPM | 555 | 832 | 1060 | 1390 | ||||||||||
| A450 Roller-Vane | 2500 3000 3500 |
Not Needed Not Needed Recommended |
0.25" 0.5" 0.5" |
0.75" 1" 1" |
1" 1.25" 1.25" |
1.5" 2" 2" |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
| RPM | 640 | 846 | 1100 | 1370 | 1600 | |||||||||
| B550 Roller-Vane | 2500 3000 3500 |
Not Needed Recommended Needed |
-- -- -- |
0.25" 0.5" 0.5" |
0.75" 1" 1" |
1.25" 1.75" 1.75" |
2.5" 3" 3" |
3" 3.5" 3.5" |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
| RPM | 1090 | 1640 | 2050 | |||||||||||
| C508 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | 1" 1.5" 2" 2.5" |
1.75" 2.25" 2.75" 3.25" |
2.25" 2.75" 3.25" 4" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1190 | 1490 | 2000 | 2490 | ||||||||||
| C510 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
1.5" 2" 2.5" 3" |
2" 2.5" 3" 3.5" |
2.5" 3" 3.5" 4.5" |
3" 3.5" 4.5" 5" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1450 | 1800 | 2100 | |||||||||||
| C530 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
2.5" 3" 3.5" 4.5" |
3.5" 4" 4.5" 5" |
4.5" 5" 5.5" 5.75" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1500 | 1800 | 2100 | |||||||||||
| C540 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
3.25" 3.75" 4.25" 4.75" |
5" 5.5" 5.75" 6" |
5.5" 6" 6.5" 7" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1600 | 1875 | 2140 | |||||||||||
| C550 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
4.5" 5" 5.5" 5.75" |
6" 6.5" 7" 7.5" |
6.5" 7" 7.5" 8" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1400 | 1630 | 1830 | 2030 | ||||||||||
| C570 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
5.5" 6" 6.5" 7" |
5" 5.5" 6" 6.5" |
6.5" 7" 7.5" 8" |
7" 7.5" 8" 8.5" |
-- -- -- |
-- -- -- |
| RPM | 1400 | 1570 | 1750 | 1900 | ||||||||||
| C590 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
4.5" 5" 5.5" 6" |
7" 7.5" 8" 9" |
8.5" 9" 9.5" 10" |
9" 9.5" 10" 11" |
Machine Compatibility
Not sure if the attachment you're considering will fit your machine? Here’s a complete guide to ensuring attachment compatibility.
1. Attachment Mounting Type
Your machine’s mounting plate must match the attachment’s plate for a proper fit. While most manufacturers now follow a "universal" standard, making many attachments interchangeable, there are still exceptions—so always double-check compatibility.
2. Hydraulic Connections and Flow Rate
If the attachment requires hydraulics, ensure that both the machine and attachment have compatible hydraulic couplers. Additionally, the machine’s auxiliary hydraulic flow rate must fall within the attachment’s required range. If the attachment doesn’t use hydraulics, you can skip this step.
3. Machine Lift Capacity
Your machine’s rated operating capacity (ROC) must be able to handle the attachment’s weight. For attachments like buckets and concrete mixers, don’t forget to factor in the weight of the material they’ll be carrying to avoid exceeding your machine’s limits.
If you're unsure about your machine's make or model, check your operator's manual or consult your equipment dealer.
