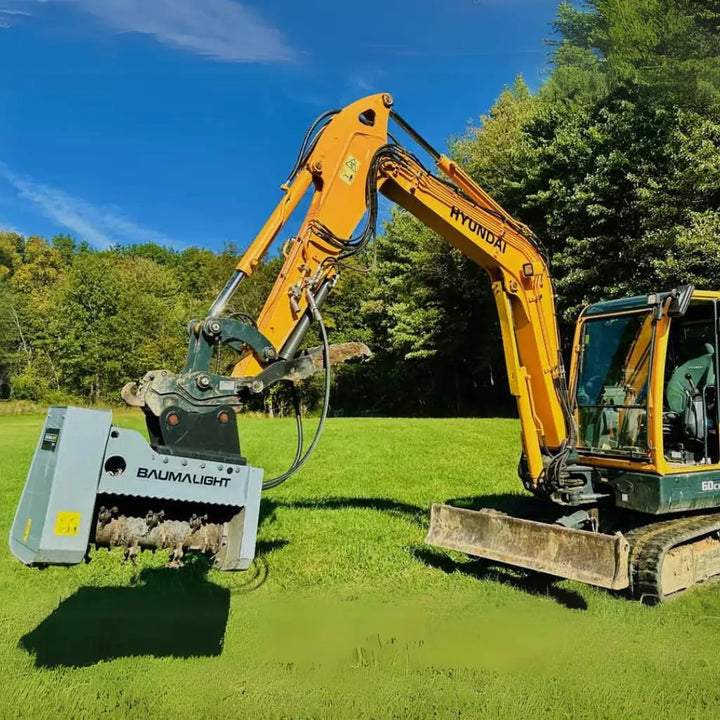

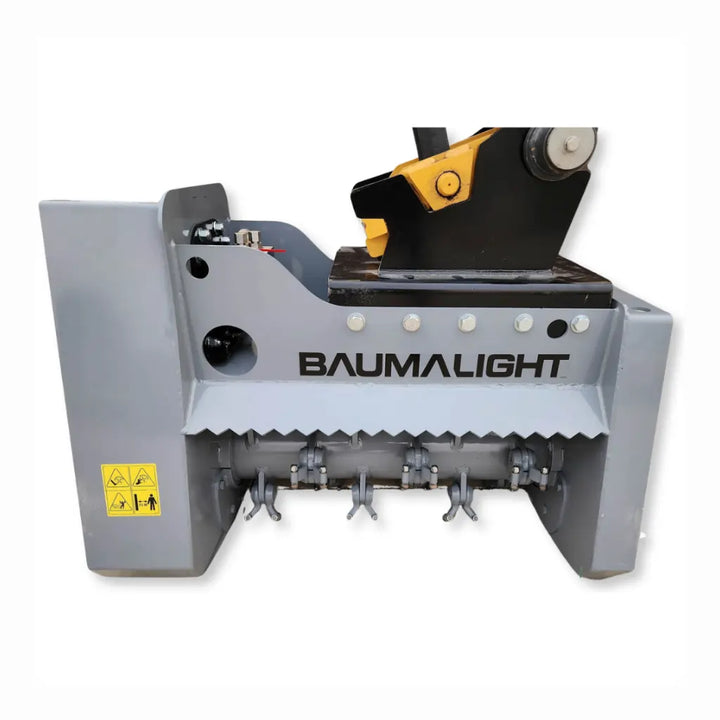

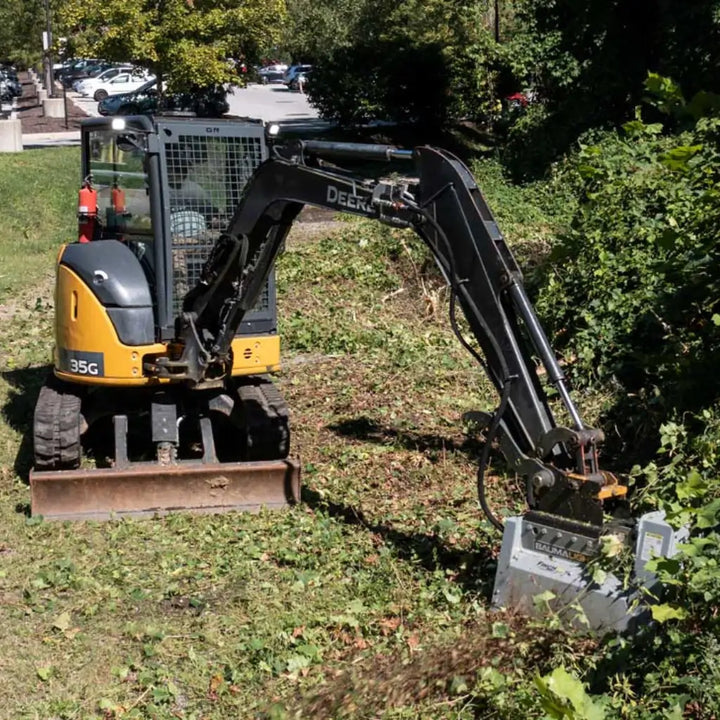

Baumalight MX330 Fixed Tooth Brush Mulcher For Mini Excavators
Harness the power of the Baumalight MX330 Fixed Tooth Mulcher, designed specifically for mini excavators seeking reliable, aggressive landscaping performance. Equipped with high-speed teeth featuring concave-shaped carbide tips, this mulcher delivers efficient, powerful cutting. The teeth are easily rotatable to maintain a sharp edge, ensuring consistent mulching and extended service life. Built for productivity and durability, the MX330 makes tough clearing tasks straightforward.
✔️ Lead Time Estimated at 9 Days
✔️ Price Match Guarantee
✔️ 6 Free Replacement Teeth
✔️ Manufacturer Warranty Included
✔️ Lead Time Estimated at 9 Days
✔️ Price Match Guarantee
✔️ 6 Free Replacement Teeth
✔️ Manufacturer Warranty Included
Attachment Specifications
| Model No. | MX230 | MX330 | MX530 | MX530R | MX548R | MX948R | MX960R | MX1160R |
|---|---|---|---|---|---|---|---|---|
| A02 | A02 | A02 | A02 | A03 | A03 | A03 | A03 | |
| Path Width | 38" | 38" | 40" | 40" | 62" | 70" | 90" | 90" |
| Rotor Width | 30" | 30" | 30" | 30" | 48" | 48" | 60" | 60" |
| Minimum Tracked Excavator Ton | 2 | 3 | 4 | 4 | 7 | 12 | 18 | 18 |
| Minimum Wheeled Excavator Ton | 4 | 5 | 6 | 6 | 9 | 15 | 21 | 21 |
| Max Tracked Excavator Ton | 6 | 8 | 12 | 12 | 20 | 30 | 33 | 33 |
| Max wheeled Excavator Ton | 8 | 10 | 14 | 14 | 22 | 33 | 36 | 36 |
| Cutting Depth | Level | Level | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | Level | Level | Level |
| Holder Style | Swing | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Cutting Style | Flail | High Speed Teeth | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Double Tipped Carbide | Double Tipped Carbide | Sharpenable Planer teeth |
| Tooth Part number | F2000 | H3000 | P5000 | P5000 | P5000 | R9000 | R9000 | P11000 |
| Number of cutters | 22 | 36 | 44 | 44 | 72 | 27 | 38 | 31 |
| Rotor Shaft Size | 1.5" | 2" | 2" | 2" | 2" | 2" | 2" | 2" |
| Rotor Diameter (tool tips) | 17.25" | 15" | 15" | 15" | 15" | 18.5" | 18.5" | 18.5" |
| Rotor Weight (with tools) | 125 lbs | 175 lbs | 300 lbs | 300 lbs | 408 lbs | 617 lbs | 860 lbs | 872 lbs |
| No. of Motor | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Case Drain | Not important | Not important | See motor options | See motor options | Critical | Critical | Critical | Critical |
| Unit Weight | 500 lbs | 750 lbs | 1036 lbs | 1166 lbs | 2167 lbs | 2838 lbs | 2910 lbs | 2925 lbs |
Key Features - MX330
Integrated skid shoes
These durable skid shoes help the Brush Mulcher to better float over the ground for optimal mulching action.
HIGH SPEED TEETH
The concave shaped carbide tip of our High Speed Teeth provide aggressive cutting action by chipping the brush bit by bit. This round tooth is 3 teeth in 1. Simply loosen the lock nut and rotate the tooth to a fresh, sharp cutting edge. This can be done three times, extending the life of each tooth.
Hardened Teeth Holders
Heavy-duty teeth holders resist bending and keep you working longer.
6 FREE TEETH
All MX330 Brush Mulchers comes with a free set of 6 replacement teeth. These replacement teeth are conveniently shipped in the owner’s manual tube bolted to the frame.
Spiral Tooth Pattern
For smoother mulching, the spiral tool pattern allows one tooth to engage at a time.
Overtorque Protection - Relief Valve
The relief valve protects the motor and the hydraulic system from pressure spikes. When an obstacle is hit the relief valves open and relieves the pressure.
REINFORCED BELT
A heavy duty reinforced belt delivers the force from the gear box to the rotor. This offers protection from the shocks inherent in mulching.
Wire Protection Kit
Protective steel cover that prevents damage from wire fencing.
Powdered Coated
Our powder coat finish is much tougher than conventional paint to stand up to the rigors of mulching and helps prevent rusting.
VIEW OUR HELPFUL COUPLER SIZING CHART
Couplers must be ordered separately as we do not supply hydraulic couplers with product due to the variety carrier specifications. Click the link below.
https://baumalight.com/product/flow-pressure
Available for PackWing
Selected excavator mulcher models are compatible with the Pack Wing boom mower for tractors..
Learn more at https://baumalight.com/product/boom-mower-skidsteer-en
Hydraulic Flow & Pressure Database
For your convenience Baumalight has Developed a PSI Flow and Pressure database with over 1000 different carrier models to help you decide the best Baumalight model for your machine.
Maximum Brush Cutting Sizes - MX330
MAXIMUM BRUSH CUTTING SIZES
(Brush Diameter in Inches)
300 Series
| MOTOR | PSI | CASE DRAIN | 8 GPM | 10 GPM | 12 GPM | 15 GPM | 20 GPM |
|---|---|---|---|---|---|---|---|
| RPM | 555 | 749 | 832 | 1060 | 1390 | ||
| A450 300 Series Motor | 2500 3000 3500 |
Not Important for Roller-Vane motors | 0.25" 0.5" 0.5" |
0.675" 0.9" 0.9" |
0.75" 1" 1" |
1" 1.25" 1.25" |
1.5" 2" 2" |
Machine Compatibility
Not sure if the attachment you're considering will fit your machine? Here’s a complete guide to ensuring attachment compatibility.
1. Attachment Mounting Type
Your machine’s mounting plate must match the attachment’s plate for a proper fit. While most manufacturers now follow a "universal" standard, making many attachments interchangeable, there are still exceptions—so always double-check compatibility.
2. Hydraulic Connections and Flow Rate
If the attachment requires hydraulics, ensure that both the machine and attachment have compatible hydraulic couplers. Additionally, the machine’s auxiliary hydraulic flow rate must fall within the attachment’s required range. If the attachment doesn’t use hydraulics, you can skip this step.
3. Machine Lift Capacity
Your machine’s rated operating capacity (ROC) must be able to handle the attachment’s weight. For attachments like buckets and concrete mixers, don’t forget to factor in the weight of the material they’ll be carrying to avoid exceeding your machine’s limits.
If you're unsure about your machine's make or model, check your operator's manual or consult your equipment dealer.
