As an authorized retailer of Baumalight, we are proud to offer a full line of powerful, Canadian-engineered attachments designed to take on the toughest land clearing, forestry, and construction tasks. Known for their innovative design and robust performance, Baumalight attachments are built with a strong commitment to quality, durability, and real-world functionality. Baumalight delivers the rugged, reliable tools you need to boost productivity and tackle any job with confidence. Upgrade your equipment with Baumalight — attachments you can trust!

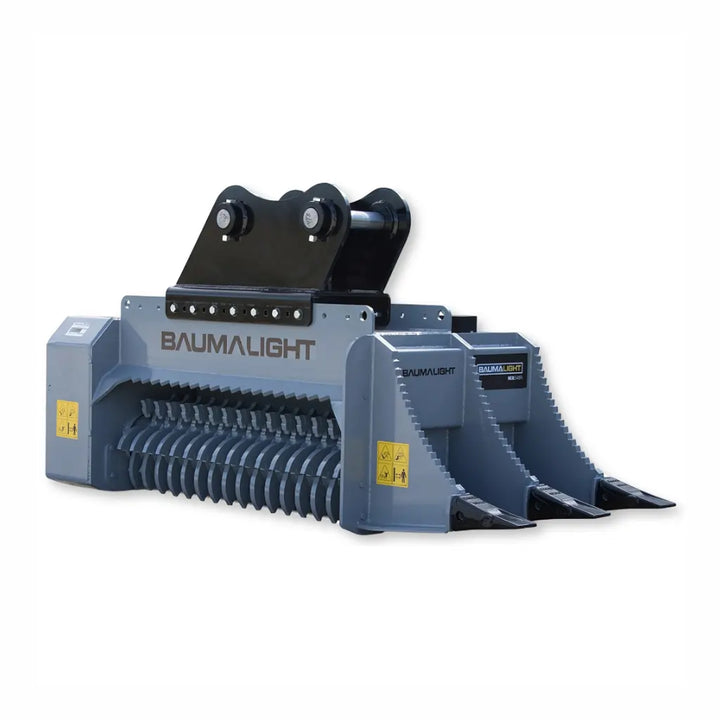

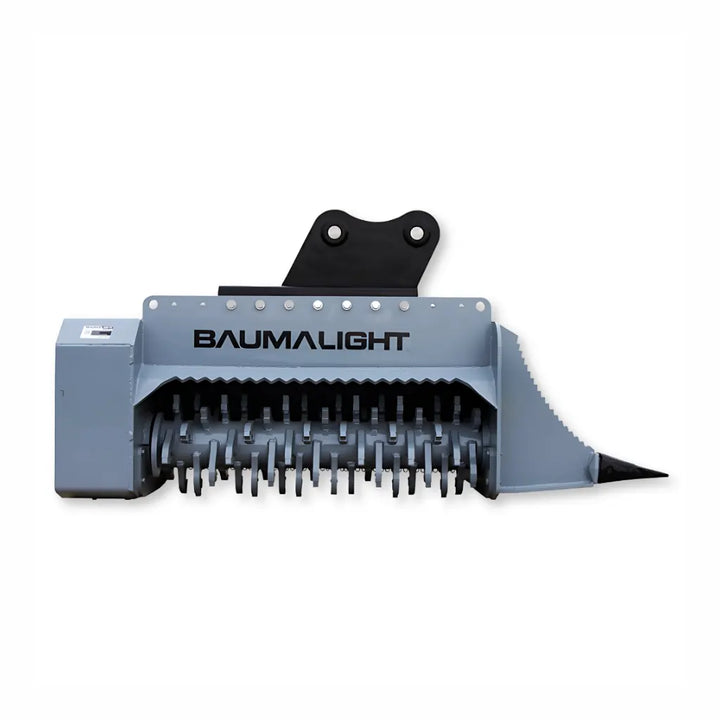

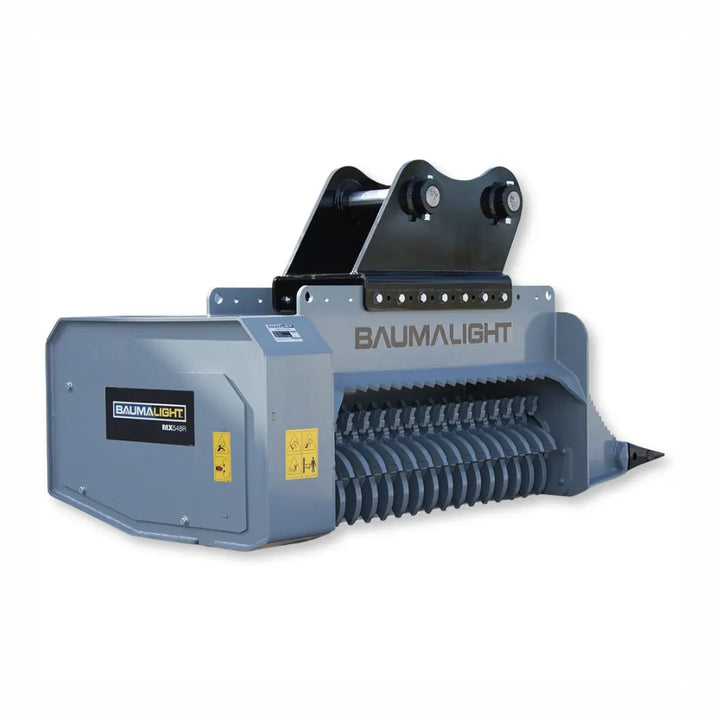

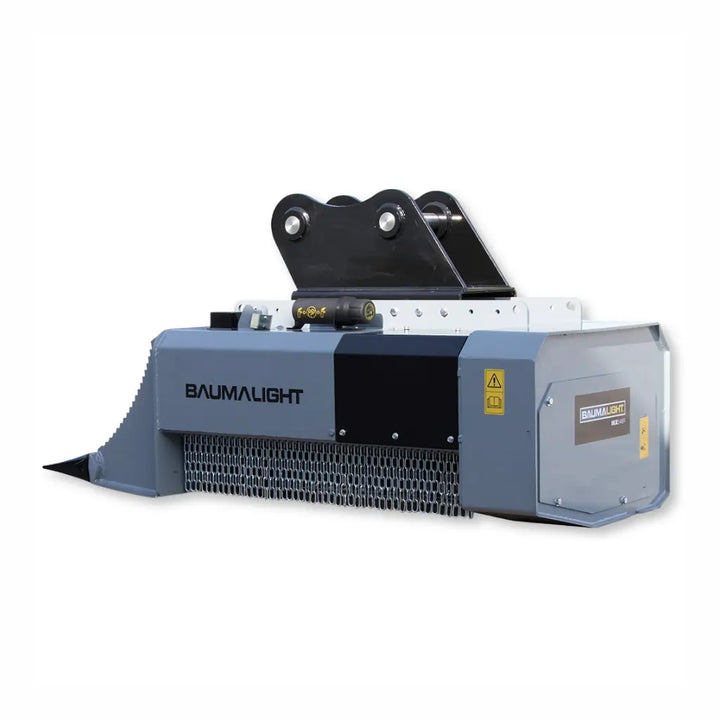

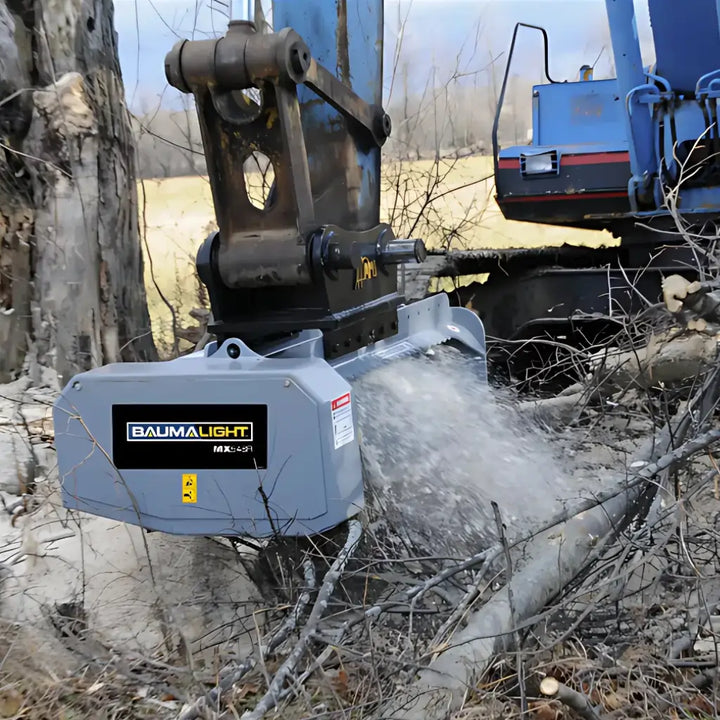

Baumalight MX548R Fixed Tooth Brush Mulcher For 8-20 Ton Excavators
The Baumalight MX548R Fixed Tooth Mulcher is designed for 8–20 ton excavators, providing powerful brush clearing for fence line upkeep and light contractor jobs. Its rugged frame incorporates aggressive Root Rake Ripper teeth to effectively remove rocks and shift logs, enhancing clearing efficiency. Crafted from tough yet lightweight AR400 steel, this mulcher balances durability with maneuverability. Select between Planer teeth for precise cutting or Ripper teeth for heavy-duty shredding to match your job requirements.
✔️ Lead Time Estimated at 4 Days
✔️ Price Match Guarantee
✔️ 6 Free Replacement Teeth
✔️ Manufacturer Warranty Included
✔️ Lead Time Estimated at 4 Days
✔️ Price Match Guarantee
✔️ 6 Free Replacement Teeth
✔️ Manufacturer Warranty Included
Attachment Specifications
| Model No. | MX230 | MX330 | MX530 | MX530R | MX548R | MX948R | MX960R | MX1160R |
|---|---|---|---|---|---|---|---|---|
| A02 | A02 | A02 | A02 | A03 | A03 | A03 | A03 | |
| Path Width | 38" | 38" | 40" | 40" | 62" | 70" | 90" | 90" |
| Rotor Width | 30" | 30" | 30" | 30" | 48" | 48" | 60" | 60" |
| Minimum Tracked Excavator Ton | 2 | 3 | 4 | 4 | 7 | 12 | 18 | 18 |
| Minimum Wheeled Excavator Ton | 4 | 5 | 6 | 6 | 9 | 15 | 21 | 21 |
| Max Tracked Excavator Ton | 6 | 8 | 12 | 12 | 20 | 30 | 33 | 33 |
| Max wheeled Excavator Ton | 8 | 10 | 14 | 14 | 22 | 33 | 36 | 36 |
| Cutting Depth | Level | Level | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | Level | Level | Level |
| Holder Style | Swing | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Cutting Style | Flail | High Speed Teeth | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Double Tipped Carbide | Double Tipped Carbide | Sharpenable Planer teeth |
| Tooth Part number | F2000 | H3000 | P5000 | P5000 | P5000 | R9000 | R9000 | P11000 |
| Number of cutters | 22 | 36 | 44 | 44 | 72 | 27 | 38 | 31 |
| Rotor Shaft Size | 1.5" | 2" | 2" | 2" | 2" | 2" | 2" | 2" |
| Rotor Diameter (tool tips) | 17.25" | 15" | 15" | 15" | 15" | 18.5" | 18.5" | 18.5" |
| Rotor Weight (with tools) | 125 lbs | 175 lbs | 300 lbs | 300 lbs | 408 lbs | 617 lbs | 860 lbs | 872 lbs |
| No. of Motor | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Case Drain | Not important | Not important | See motor options | See motor options | Critical | Critical | Critical | Critical |
| Unit Weight | 500 lbs | 750 lbs | 1036 lbs | 1166 lbs | 2167 lbs | 2838 lbs | 2910 lbs | 2925 lbs |
Key Features - MX548R
INTEGRATED SKID SHOES
These durable skid shoes help the Brush Fire to better float over the ground for optimal mulching action.
V-Notch
The force and impact of mulching bends the teeth. Our V-Notch teeth and hardened holders won’t let that happen. Held firmly in place to absorb impacts from multiple directions the V-Notch keeps the teeth chewing up the toughest brush.
Hardened Teeth Holders
Designed to handle the punishment, these heavy-duty teeth holders resist bending and keep you on the path of destruction longer.
6 FREE TEETH
All MX548R Brush Mulchers come with a free set of 6 replacement teeth. These replacement teeth are conveniently shipped in a robust enclosed compartment on top of the frame.
Optional 500 Series Ripper Teeth
The 500 Series teeth come in two carbide tipped styles; Planer and Ripper. The Planer style teeth take small bites and provide the most efficient mulching and cutting. The Ripper style teeth have more of a shredding mulching action. Their v-shaped design makes them less susceptible to impacts with hard objects like stones, making them the better choice when mulching below grade and in fence lines. Both styles are Bolt-on replaceable for quick and easy servicing and replacement even in the field.
All units shipped with Standard P5000 Series Planer Teeth only and ripper teeth can be installed as the planer teeth need replacing. Units can be operated with a mix of Planer and Ripper teeth.
Spiral Tooth Pattern
For smoother mulching, the spiral tool pattern allows one tooth to engage at a time.
Root rake teeth
The MX548R are equipped with a root rake for pushing fallen logs or other debris out of the way. These are replaceable bucket-style scrapper teeth.
Overtorque Protection - Relief Valve
The relief valve protects the motor and the hydraulic system from pressure spikes. When an obstacle is hit the relief valves open and relieves the pressure.
REINFORCED BELT
A heavy duty reinforced belt delivers the force from the gear box to the rotor. Not only does this belt refuse to back down in the face of dense brush, it also offers protection from the shocks inherent in mulching.
Wire Protection Kit
Protective steel cover that prevents damage from wire fencing.
Chain Curtain
The rear of the unit is guarded by a chain curtain so standing brush enters and mulched debris exits.
Heavy duty frame
Heavy duty frame with T1 alloy tool steel sheet metal for all the main areas. Powder coated frame with multiple anti-slip pads to give you secure footing for ease of entry and exit from your cab.
Powdered Coated
Our powder coat finish is much tougher than conventional paint to stand up to the rigors of mulching and helps prevent rusting.
BENT AXIS PISTON MOTOR
Our industry leading bent axis piston motors make the most use of your hydraulic flow and pressure for your brush clearing needs.
VIEW OUR HELPFUL COUPLER SIZING CHART
Couplers must be ordered separately as we do not supply hydraulic couplers with product due to the variety carrier specifications. Click the link below.
https://baumalight.com/product/flow-pressure
Hydraulic Flow & Pressure Database
For your convenience Baumalight has Developed a PSI Flow and Pressure database with over 1000 different carrier models to help you decide the best Baumalight model for your machine.
overHung Load Adapter (bearing support)
The Brushfire uses an overhung load adapter which is designed with tapered roller bearings to stand up to the rigors of heavy mulching.
Maximum Brush Cutting Sizes - MX548R
MAXIMUM BRUSH CUTTING SIZES
(Brush Diameter in Inches)
500 Series
| MOTOR | PSI | CASE DRAIN | 8 GPM |
12 GPM |
15 GPM |
20 GPM |
25 GPM |
30 GPM |
35 GPM |
40 GPM |
45 GPM |
50 GPM |
55 GPM |
60 GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RPM | 555 | 832 | 1060 | 1390 | ||||||||||
| A450 Roller-Vane | 2500 3000 3500 |
Not Needed Not Needed Recommended |
0.25" 0.5" 0.5" |
0.75" 1" 1" |
1" 1.25" 1.25" |
1.5" 2" 2" |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
| RPM | 640 | 846 | 1100 | 1370 | 1600 | |||||||||
| B550 Roller-Vane | 2500 3000 3500 |
Not Needed Recommended Needed |
-- -- -- |
0.25" 0.5" 0.5" |
0.75" 1" 1" |
1.25" 1.75" 1.75" |
2.5" 3" 3" |
3" 3.5" 3.5" |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
| RPM | 1090 | 1640 | 2050 | |||||||||||
| C508 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | 1" 1.5" 2" 2.5" |
1.75" 2.25" 2.75" 3.25" |
2.25" 2.75" 3.25" 4" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1190 | 1490 | 2000 | 2490 | ||||||||||
| C510 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
1.5" 2" 2.5" 3" |
2" 2.5" 3" 3.5" |
2.5" 3" 3.5" 4.5" |
3" 3.5" 4.5" 5" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1450 | 1800 | 2100 | |||||||||||
| C530 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
2.5" 3" 3.5" 4.5" |
3.5" 4" 4.5" 5" |
4.5" 5" 5.5" 5.75" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1500 | 1800 | 2100 | |||||||||||
| C540 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
3.25" 3.75" 4.25" 4.75" |
5" 5.5" 5.75" 6" |
5.5" 6" 6.5" 7" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1600 | 1875 | 2140 | |||||||||||
| C550 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
4.5" 5" 5.5" 5.75" |
6" 6.5" 7" 7.5" |
6.5" 7" 7.5" 8" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
Machine Compatibility
Not sure if the attachment you're considering will fit your machine? Here’s a complete guide to ensuring attachment compatibility.
1. Attachment Mounting Type
Your machine’s mounting plate must match the attachment’s plate for a proper fit. While most manufacturers now follow a "universal" standard, making many attachments interchangeable, there are still exceptions—so always double-check compatibility.
2. Hydraulic Connections and Flow Rate
If the attachment requires hydraulics, ensure that both the machine and attachment have compatible hydraulic couplers. Additionally, the machine’s auxiliary hydraulic flow rate must fall within the attachment’s required range. If the attachment doesn’t use hydraulics, you can skip this step.
3. Machine Lift Capacity
Your machine’s rated operating capacity (ROC) must be able to handle the attachment’s weight. For attachments like buckets and concrete mixers, don’t forget to factor in the weight of the material they’ll be carrying to avoid exceeding your machine’s limits.
If you're unsure about your machine's make or model, check your operator's manual or consult your equipment dealer.
Need Assistance?
If you’re having trouble or need help confirming compatibility, feel free to contact our support team. We're here to assist you!
