As an authorized retailer of Baumalight, we are proud to offer a full line of powerful, Canadian-engineered attachments designed to take on the toughest land clearing, forestry, and construction tasks. Known for their innovative design and robust performance, Baumalight attachments are built with a strong commitment to quality, durability, and real-world functionality. Baumalight delivers the rugged, reliable tools you need to boost productivity and tackle any job with confidence. Upgrade your equipment with Baumalight — attachments you can trust!

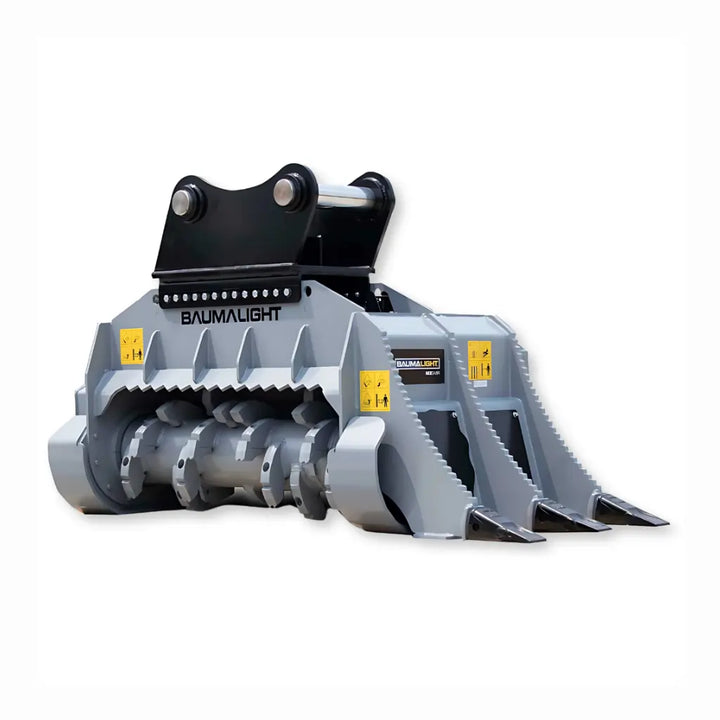

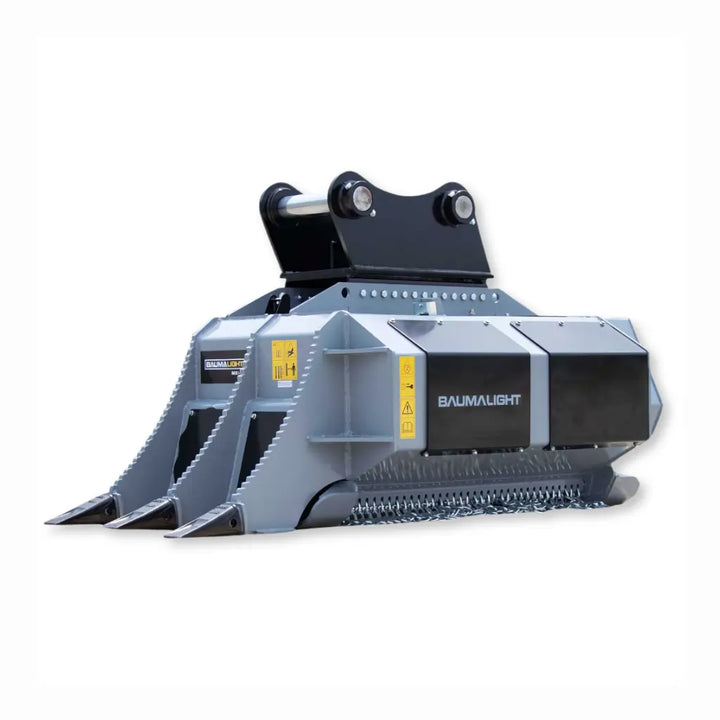

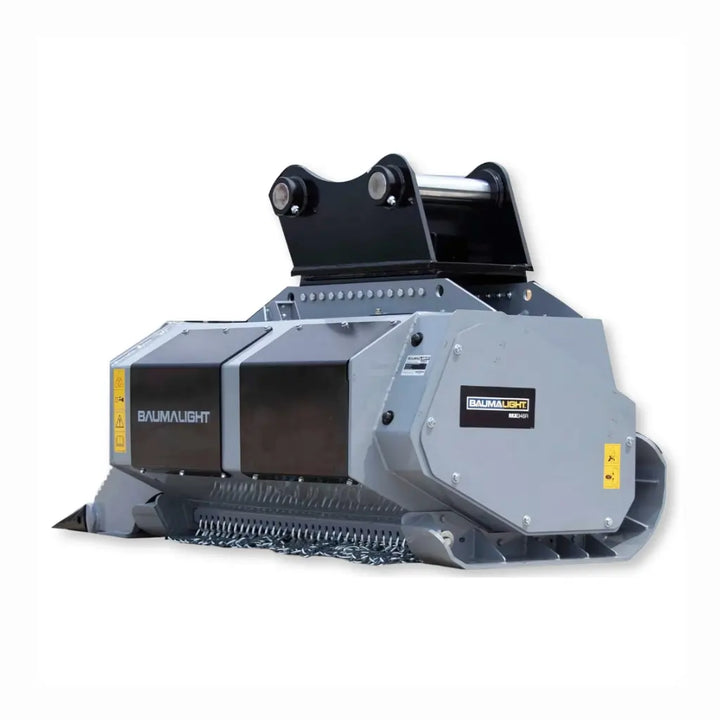

Baumalight MX948R Fixed Tooth Brush Mulcher For Excavators Starting at 12 Tons
Built for excavators 12 tons and up, the Baumalight MX948R Fixed Tooth Mulcher delivers outstanding clearing performance with a heavy-duty 48” rotor and a wide 70” cutting path. Outfitted with 27 double carbide-tipped R9000 teeth, it excels at mulching dense brush and small trees efficiently. Integrated root rake teeth enhance productivity by removing rocks and repositioning logs, making this attachment ideal for demanding forestry and land management tasks.
✔️ Lead Time Estimated at 3.5 Weeks
✔️ Price Match Guarantee
✔️ 6 Free Replacement Teeth
✔️ Manufacturer Warranty Included
✔️ Lead Time Estimated at 3.5 Weeks
✔️ Price Match Guarantee
✔️ 6 Free Replacement Teeth
✔️ Manufacturer Warranty Included
Attachment Specifications
| Model No. | MX230 | MX330 | MX530 | MX530R | MX548R | MX948R | MX960R | MX1160R |
|---|---|---|---|---|---|---|---|---|
| A02 | A02 | A02 | A02 | A03 | A03 | A03 | A03 | |
| Path Width | 38" | 38" | 40" | 40" | 62" | 70" | 90" | 90" |
| Rotor Width | 30" | 30" | 30" | 30" | 48" | 48" | 60" | 60" |
| Minimum Tracked Excavator Ton | 2 | 3 | 4 | 4 | 7 | 12 | 18 | 18 |
| Minimum Wheeled Excavator Ton | 4 | 5 | 6 | 6 | 9 | 15 | 21 | 21 |
| Max Tracked Excavator Ton | 6 | 8 | 12 | 12 | 20 | 30 | 33 | 33 |
| Max wheeled Excavator Ton | 8 | 10 | 14 | 14 | 22 | 33 | 36 | 36 |
| Cutting Depth | Level | Level | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | Level | Level | Level |
| Holder Style | Swing | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Cutting Style | Flail | High Speed Teeth | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Double Tipped Carbide | Double Tipped Carbide | Sharpenable Planer teeth |
| Tooth Part number | F2000 | H3000 | P5000 | P5000 | P5000 | R9000 | R9000 | P11000 |
| Number of cutters | 22 | 36 | 44 | 44 | 72 | 27 | 38 | 31 |
| Rotor Shaft Size | 1.5" | 2" | 2" | 2" | 2" | 2" | 2" | 2" |
| Rotor Diameter (tool tips) | 17.25" | 15" | 15" | 15" | 15" | 18.5" | 18.5" | 18.5" |
| Rotor Weight (with tools) | 125 lbs | 175 lbs | 300 lbs | 300 lbs | 408 lbs | 617 lbs | 860 lbs | 872 lbs |
| No. of Motor | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Case Drain | Not important | Not important | See motor options | See motor options | Critical | Critical | Critical | Critical |
| Unit Weight | 500 lbs | 750 lbs | 1036 lbs | 1166 lbs | 2167 lbs | 2838 lbs | 2910 lbs | 2925 lbs |
Key Features - MX948R
REPLACEABLE BOLT-IN LINER
Save time by easily replacing the AR400 steel wear plates on the MX948R without needing to remove the rotor.
ADJUSTABLE BELT TENSIONER
The adjustable belt tensioner ensures the proper tension of your belts, with no extra idler wheel that could wear out. Simply loosen the bolts and raise the motor mount to tighten the belt.
OPTIONAL TWO-SPEED MOTOR
To maximize the rotor speed and torque to account for changing mulching material, the MX948R is available with a variable two-speed motor option.
BENT AXIS PISTON MOTORS ARE A STANDARD OPTION
Our industry leading bent axis piston motors make the most use of your hydraulic flow and pressure for your brush clearing needs.
CASE DRAIN – VENT TO ATMOSPHERE
To prevent pressure relief activation on the motor seal, the MX948R comes with a case drain line and a vent to atmosphere relief valve. In the event there is a spike in pressure in your hydraulic lines, the case drain will relieve the pressure and drain it back into the return line and back to the tank. If the connection of the case drain (third line) is missed or if the line is blocked, then the case drain will vent to notify you. A properly installed case drain protected by a vent to atmosphere relief valve will save the work of replacing your shaft seal and save you from down time of unexpected maintenance. To learn more CLICK HERE about the case drain line.
WIRE PROTECTION KIT
If you are mulching and you catch some old fence wire, it can really cause damage to the unit if the wire slips over the edge of the rotor and gets wrapped around the shaft. The wire can get bunched against the bearings, causing major damage. Our wire protection kit contains a welded raised area on the end of the rotor that protects the shaft and prevents wire from getting in.
CHAIN CURTAIN
The rear of the unit is guarded by a 3/8” thick chain curtain so standing brush enters and mulched debris exits.
Root rake teeth
The MX948R are equipped with a root rake for pushing fallen logs or other debris out of the way. These are replaceable bucket-style scrapper teeth.
6 FREE TEETH
All MX948R Brush Mulchers come with a free set of 6 replacement teeth. These replacement teeth can be conveniently stored in the enclosed spare tool compartment.
EASY ACCESS GREASE FITTINGS
Reduce your regular maintenance time by easily greasing the bearings on the MX948R from outside the frame. No tools required.
OVERTORQUE PROTECTION - RELIEF VALVE
The relief valve protects the motor and the hydraulic system from pressure spikes. When an obstacle is hit the relief valves open and relieves the pressure.
REINFORCED BELT
A heavy duty reinforced belt delivers the force from the gear box to the rotor. This offers protection from the shocks inherent in mulching.
POWDERED COATED
Our powder coat finish is much tougher than conventional paint to stand up to the rigors of mulching and helps prevent rusting.
Hydraulic Flow & Pressure Database
For your convenience Baumalight has Developed a PSI Flow and Pressure database with over 1000 different carrier models to help you decide the best Baumalight model for your machine.
Maximum Brush Cutting Sizes - MX948R
MAXIMUM BRUSH CUTTING SIZES
(Brush Diameter in Inches)
900 Series
| MOTOR | PSI | CASE DRAIN | 20 GPM |
25 GPM |
30 GPM |
35 GPM |
40 GPM |
45 GPM |
50 GPM |
55 GPM |
60 GPM |
65 GPM |
70 GPM |
75 GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RPM | 1450 | 1800 | 2100 | |||||||||||
|
C930 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | 3.5" 4" 4.5" 5.5" |
4.5" 5" 5.5" 6" |
5.5" 6" 6.5" 7" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1500 | 1800 | 2100 | |||||||||||
|
C940 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | -- -- -- -- |
4.25" 4.75" 5.25" 5.75" |
6.25" 6.5" 6.75" 7" |
6.5" 7" 7.5" 8" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1600 | 1875 | 2140 | |||||||||||
|
C950 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
5.5" 6" 6.5" 6.75" |
7" 7.5" 8" 8.5" |
7.5" 8" 8.5" 9" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1400 | 1630 | 1830 | 2030 | ||||||||||
|
C970 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
5.5" 6" 7.5" 8" |
6" 6.5" 7" 7.5" |
7.5" 8" 8.5" 9" |
8" 8.5" 9" 9.5" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | Adjustable | |||||||||||||
|
D97X2 Two speed |
2500 3000 3500 4000 |
Critical | 4.25" 5" 5.5" 6.75" |
5.5" 6.25" 6.75" 7.5" |
7.75" 8" 8.5" 8.75" |
8.75" 9.25" 10" 10.5" |
9.25" 10" 10.5" 11.25" |
10.25" 11" 11.5" 12.25" |
11.25" 12" 12.5" 13.25" |
12.25" 13" 13.5" 14.25" |
13.25" 14" 14.5" 15.25" |
14.25" 15" 15.5" 16.25" |
15.25" 16" 16.5" 17.25" |
16.25" 17" 17.5" 18.25" |
Machine Compatibility
Not sure if the attachment you're considering will fit your machine? Here’s a complete guide to ensuring attachment compatibility.
1. Attachment Mounting Type
Your machine’s mounting plate must match the attachment’s plate for a proper fit. While most manufacturers now follow a "universal" standard, making many attachments interchangeable, there are still exceptions—so always double-check compatibility.
2. Hydraulic Connections and Flow Rate
If the attachment requires hydraulics, ensure that both the machine and attachment have compatible hydraulic couplers. Additionally, the machine’s auxiliary hydraulic flow rate must fall within the attachment’s required range. If the attachment doesn’t use hydraulics, you can skip this step.
3. Machine Lift Capacity
Your machine’s rated operating capacity (ROC) must be able to handle the attachment’s weight. For attachments like buckets and concrete mixers, don’t forget to factor in the weight of the material they’ll be carrying to avoid exceeding your machine’s limits.
If you're unsure about your machine's make or model, check your operator's manual or consult your equipment dealer.
Need Assistance?
If you’re having trouble or need help confirming compatibility, feel free to contact our support team. We're here to assist you!
Shipping Information
We are partnered with trusted freight carriers to deliver your LTL shipments as quick as possible. Most orders are delivered within 3-5 business days after leaving the manufacturer's warehouse. Please look at the top of each product page to see if there is a manufacturer lead time for the particular item you are looking at. We’re happy to coordinate special services like liftgate delivery or terminal pickup upon request. Simply reach out to us on using one of our contact methods and we will have it taken care of for you. Smaller items will be shipped out using FedEx, UPS and USPS.
Warranty Information
At CarsonAttachments.com, all products are sold with the manufacturer’s warranty unless stated otherwise. Warranty details for specific products can be found on their respective manufacturers warranty pages. Carson Attachments does not provide any additional warranties beyond those offered by the manufacturer.
However, if you need to file a warranty claim, we’re here to help. Carson Attachments will advocate on your behalf and assist with the initial claim processing before submitting it to the manufacturer. To begin the process, please contact us at Sales@CarsonAttachments.com and include the necessary details typically required by manufacturers for warranty claims.
