As an authorized retailer of Baumalight, we are proud to offer a full line of powerful, Canadian-engineered attachments designed to take on the toughest land clearing, forestry, and construction tasks. Known for their innovative design and robust performance, Baumalight attachments are built with a strong commitment to quality, durability, and real-world functionality. Baumalight delivers the rugged, reliable tools you need to boost productivity and tackle any job with confidence. Upgrade your equipment with Baumalight — attachments you can trust!

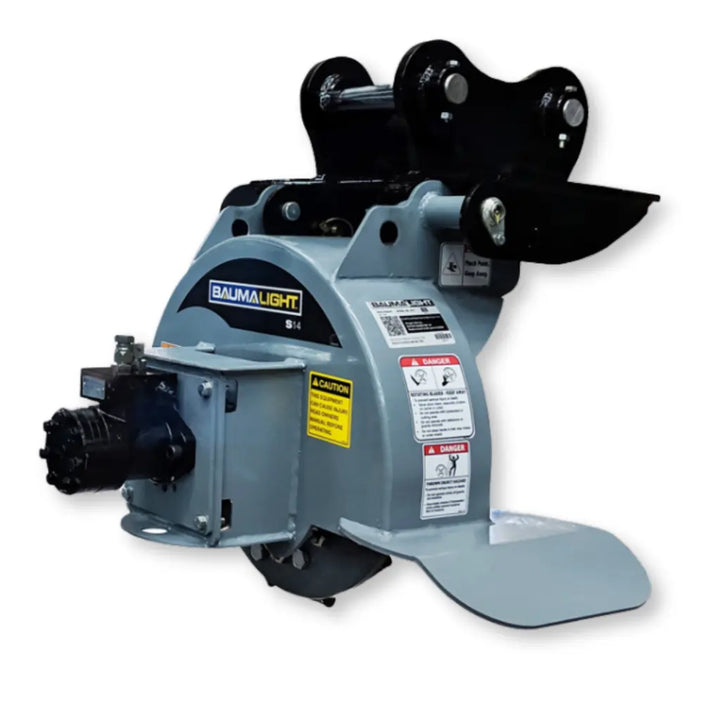

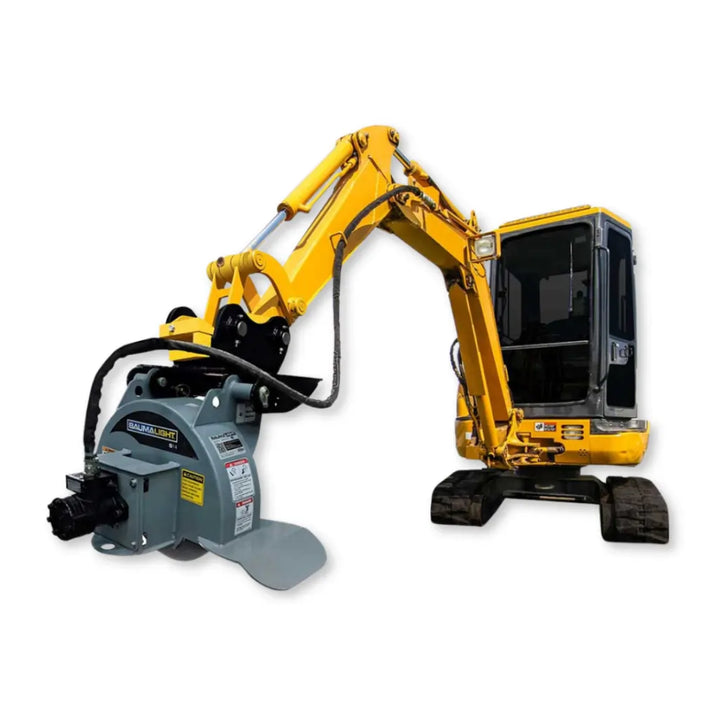

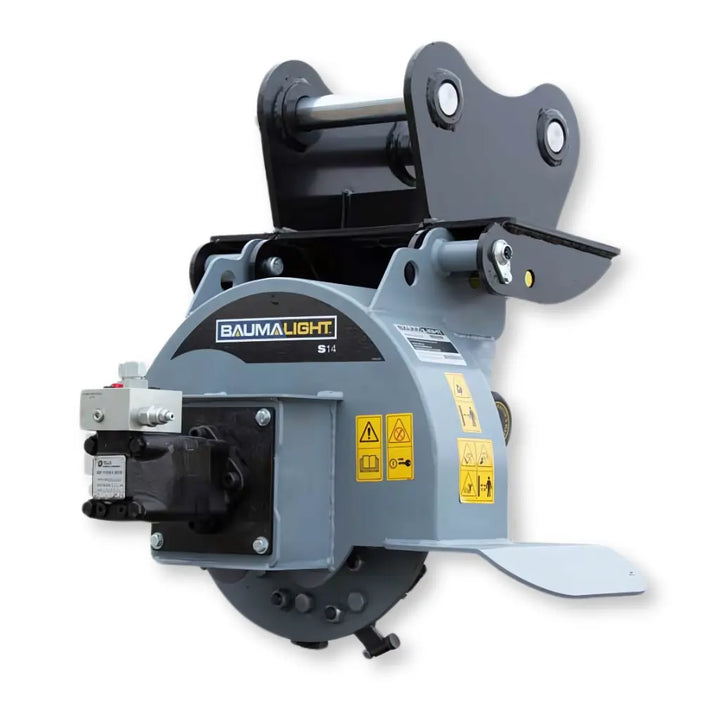

Baumalight S14 Stump Grinder For 1 - 2 Ton Mini Excavators
The Baumalight S14 Stump Grinder is engineered for versatility and performance, featuring a quick-change skid steer plate and a direct-flow hydraulic drive that maximizes cutting head efficiency. Equipped with rotatable round carbide teeth, it delivers aggressive cutting while extending tooth life for cost-effective operation. Multiple mounting options provide flexibility to boost productivity on every job.
✔️ Ready To Ship - In Stock
✔️ Price Match Guarantee
✔️ Manufacturer Warranty Included
✔️ Ready To Ship - In Stock
✔️ Price Match Guarantee
✔️ Manufacturer Warranty Included
Attachment Specifications
| Model No. | S14 | S18 | GXM350 | GXM550 | GXM750 |
|---|---|---|---|---|---|
| Baumalight Connection Code | A04 | A04 | A02 | A02 | A02 |
| Recommended Carrier Size | 1-2 ton | 1.5-4 ton | 1.5-4.5 ton | 3.5-8 ton | 7-18 ton |
| Motor Type | Gerotor | Gerotor | High efficiency bent axis piston | High efficiency bent axis piston | High efficiency bent axis piston |
| Hydraulic GPM | Check Motor Options | Check Motor Options | Check Motor Options | Check Motor Options | Check Motor Options |
| Rotor Size | 18" | 24" | 19" | 24" | 24" |
| Number of Teeth | 12 | 34 | 12 | 12 | 12 |
| Tooth Part number | H3000 | S1000 | H3000 | H3000 | H3000 |
| Tooth Construction | High speed | Planer | High speed | High speed | High speed |
| Cutting Wheel Speed | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM |
| Cutting Height - Above Ground | No limit | No limit | No limit | No limit | No limit |
| Cutting Depth - Below Ground | 6" | 10" | 16" | 24" | 24" |
| Maximum Cutting Depth - Per Pass | 2" | 5" | 3/4" | 1" | 1" |
| Maximum Horizontal Cut | 12" | 22" | 12" | 22" | 22" |
| Over Torque Protection | Relieve valve | Relieve valve | Relieve valve | Relieve valve | Relieve valve |
| Hitch | 1" pivot pins | 1" pivot pins | Bolt on | Bolt on | Bolt on |
| No. of Remotes Required - Hydraulic | 1 | 1 | 1 | 1 | 1 |
| Requires 12 Volt DC | No | No | No | No | No |
| Unit Weight (Shipping) Lbs. | 394 | 642 | 650 | 822 | 1300 |
Key Features - S14

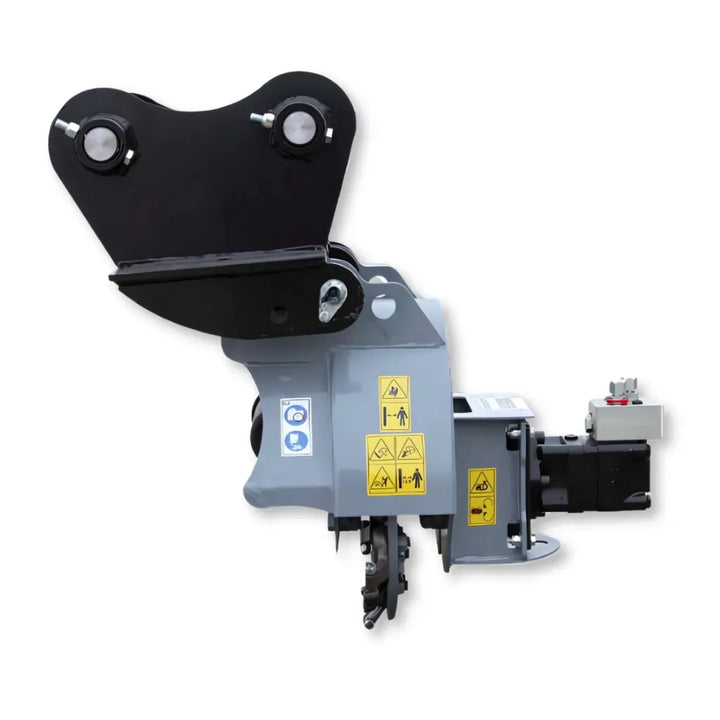

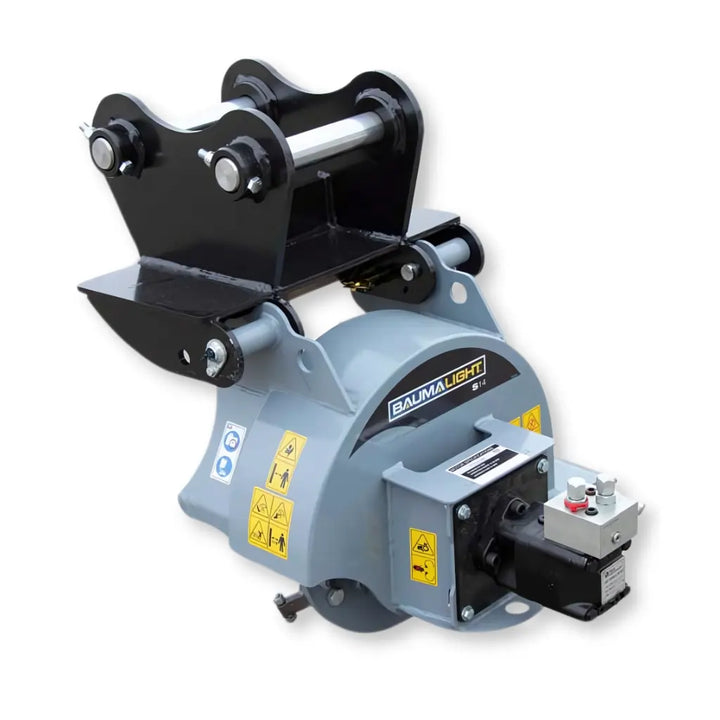

Excavator Mount
This standard mounting plate is perfect for welding to your skid steer’s unique fitting.

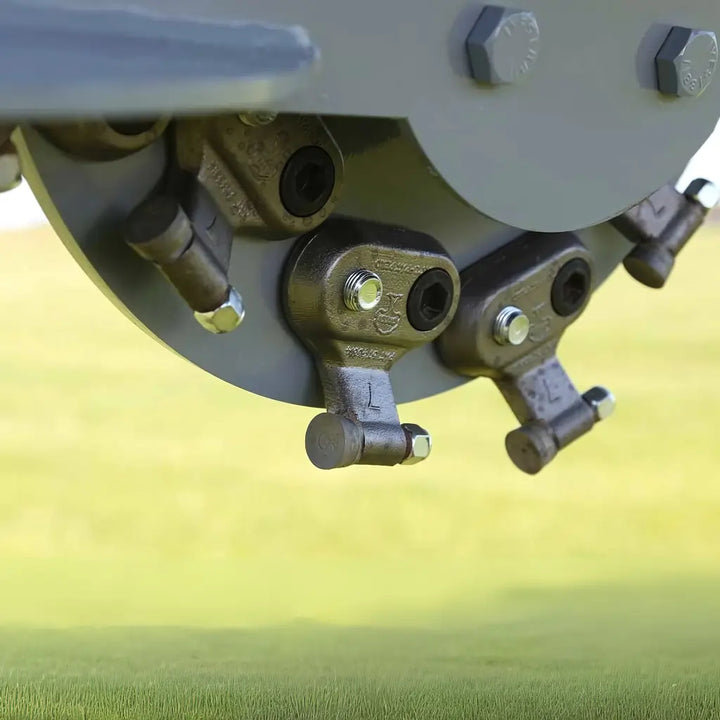

HIGH SPEED TEETH
The concave shaped carbide tip of our High Speed Teeth provide aggressive cutting action by chipping the brush bit by bit. This round tooth is 3 teeth in 1. Simply loosen the lock nut and rotate the tooth to a fresh, sharp cutting edge. This can be done three times, extending the life of each tooth.
6 FREE TEETH
All S14 Stump Grinder comes with a free set of 6 replacement teeth. These replacement teeth are conveniently shipped in the owner’s manual tub bolted to the frame.
More Teeth
The high number of teeth means that each tooth needs to do less work. Each of the Stump Blasters teeth only need to make a small cut, because the work is shared by more of our rugged teeth they last longer and usually only require 2 or 3 replacements at a time. The bolt-on designed teeth allow for straightforward replacement.

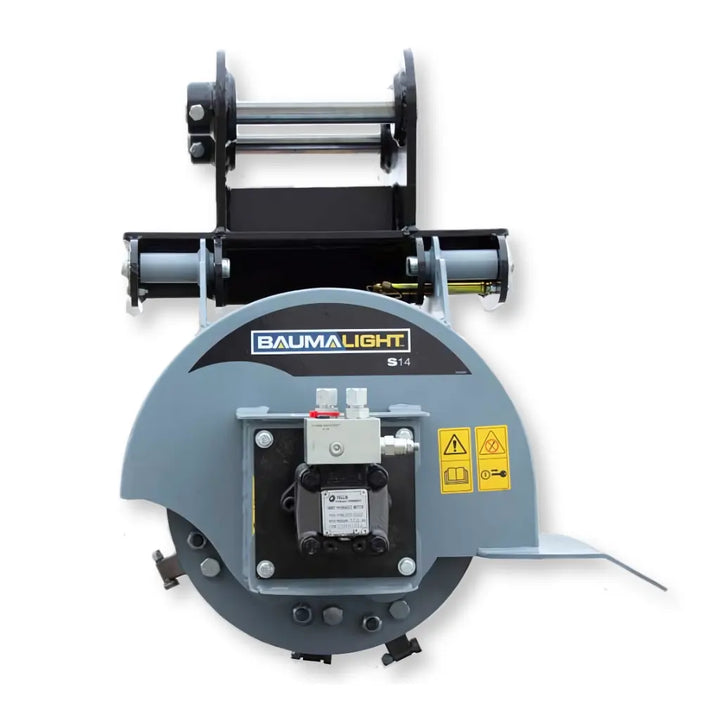

Hydraulic Motor
Skid steer mounted Stump Blasters run on hydraulic motors. For best results, match your equipments flow rate to one of our available hydraulic motor options.
More Clearance
The Stump Blaster’s carbide teeth extend a full 1-¼ inches from the rotor. This prevents chips and mulch from getting plugged. More chip clearing produces smoother operation and reduces heat build-up that can damage the rotor and cause premature tooth failure.
Rotor
The massive ¾" thick steel rotor provides the back bone for the Stump Blaster cutting system. It’s the anchor for the carbide tipped teeth. For smooth operation it’s important that the rotor remains solid, with no flexing. The rugged rotor also provides the Stump Blaster with the extra momentum needed when the grinding is tough, making sure the Stump Blaster can power through the hardest stumps.
Greaseable Pins
Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.
Stump Cutting Time Chart - S14
STUMP CUTTING TIMES BASED ON 24" STUMP
* Motor will run at this PSI but excess pressure is dumping over relief.
| Motor | Case Drain | PSI | 12 GPM | 15 GPM | 20 GPM | 25 GPM | 30 GPM | 35 GPM | 40 GPM | CC | Motor Type |
RPM at MAX GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S250 Motor Available for : S14 |
Not Required | 2,500 | 50 min | 40 min | -- | -- | -- | -- | -- | 50 | Roller Vane | 910 |
| 3,000 | 40 min | 35 min | -- | -- | -- | -- | -- | |||||
|
S450 Motor Available for : S14,S18 |
Not Required | 2,500 | 60 min | 40 min | 35 min | -- | -- | -- | -- | 125 | Roller Vane | 520 |
| 3,000 | 50 min | 30 min | 30 min | -- | -- | -- | -- | |||||
|
S550 Motor Available for : S18 |
Recommended | 3,000 | -- | 30 min | 25 min | 20 min | 16 min | -- | -- | 130 | Roller Vane | 700 |
| 3,500* | -- | 30 min | 25 min | 20 min | 16 min | -- | -- | |||||
|
S650 Motor Available for : S18 |
Recommended | 3,000 | -- | -- | 40 min | 25 min | 15 min | 12 min | 10 min | 245 | Roller Vane | 540 |
| 3,500* | -- | -- | 30 min | 20 min | 10 min | 8 min | 6 min |
Machine Compatibility
Not sure if the attachment you're considering will fit your machine? Here’s a complete guide to ensuring attachment compatibility.
1. Attachment Mounting Type
Your machine’s mounting plate must match the attachment’s plate for a proper fit. While most manufacturers now follow a "universal" standard, making many attachments interchangeable, there are still exceptions—so always double-check compatibility.
2. Hydraulic Connections and Flow Rate
If the attachment requires hydraulics, ensure that both the machine and attachment have compatible hydraulic couplers. Additionally, the machine’s auxiliary hydraulic flow rate must fall within the attachment’s required range. If the attachment doesn’t use hydraulics, you can skip this step.
3. Machine Lift Capacity
Your machine’s rated operating capacity (ROC) must be able to handle the attachment’s weight. For attachments like buckets and concrete mixers, don’t forget to factor in the weight of the material they’ll be carrying to avoid exceeding your machine’s limits.
If you're unsure about your machine's make or model, check your operator's manual or consult your equipment dealer.
Need Assistance?
If you’re having trouble or need help confirming compatibility, feel free to contact our support team. We're here to assist you!
Shipping Information
We are partnered with trusted freight carriers to deliver your LTL shipments as quick as possible. Most orders are delivered within 3-5 business days after leaving the manufacturer's warehouse. Please look at the top of each product page to see if there is a manufacturer lead time for the particular item you are looking at. We’re happy to coordinate special services like liftgate delivery or terminal pickup upon request. Simply reach out to us on using one of our contact methods and we will have it taken care of for you. Smaller items will be shipped out using FedEx, UPS and USPS.
Warranty Information
At CarsonAttachments.com, all products are sold with the manufacturer’s warranty unless stated otherwise. Warranty details for specific products can be found on their respective manufacturers warranty pages. Carson Attachments does not provide any additional warranties beyond those offered by the manufacturer.
However, if you need to file a warranty claim, we’re here to help. Carson Attachments will advocate on your behalf and assist with the initial claim processing before submitting it to the manufacturer. To begin the process, please contact us at Sales@CarsonAttachments.com and include the necessary details typically required by manufacturers for warranty claims.
