As an authorized retailer of Baumalight, we are proud to offer a full line of powerful, Canadian-engineered attachments designed to take on the toughest land clearing, forestry, and construction tasks. Known for their innovative design and robust performance, Baumalight attachments are built with a strong commitment to quality, durability, and real-world functionality. Baumalight delivers the rugged, reliable tools you need to boost productivity and tackle any job with confidence. Upgrade your equipment with Baumalight — attachments you can trust!

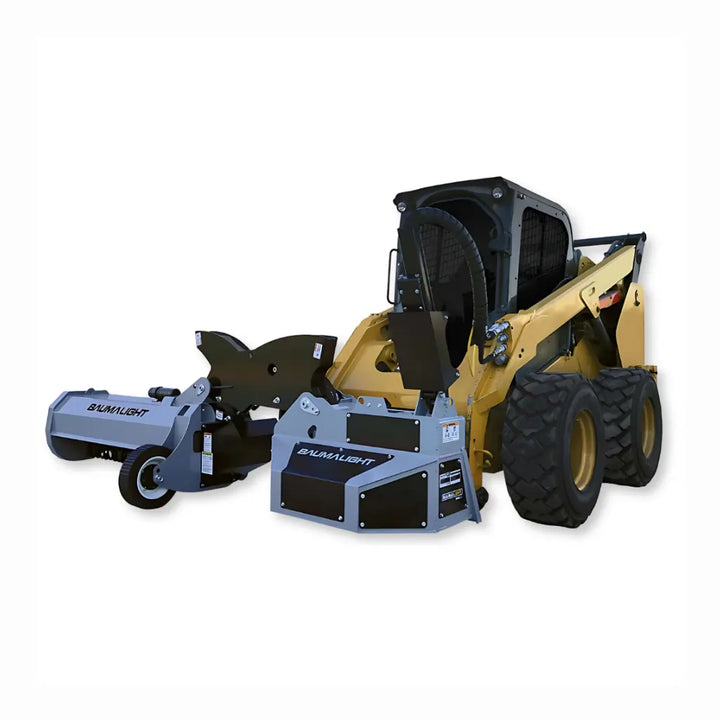

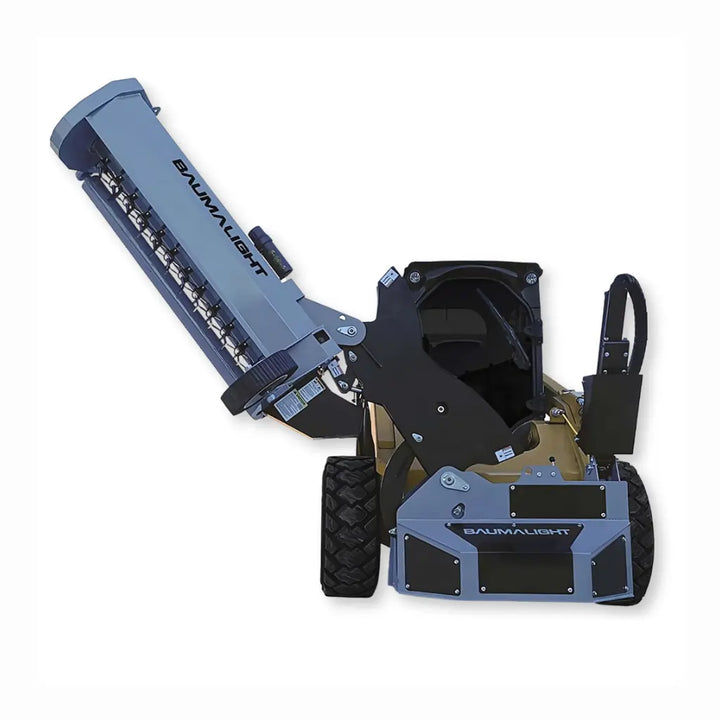

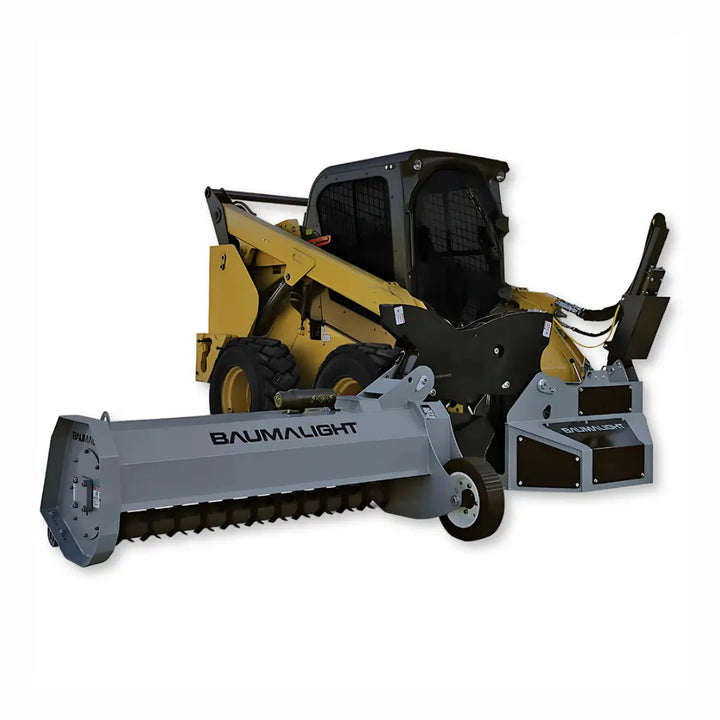

Baumalight SWA550 Boom Mower For Skid Steers

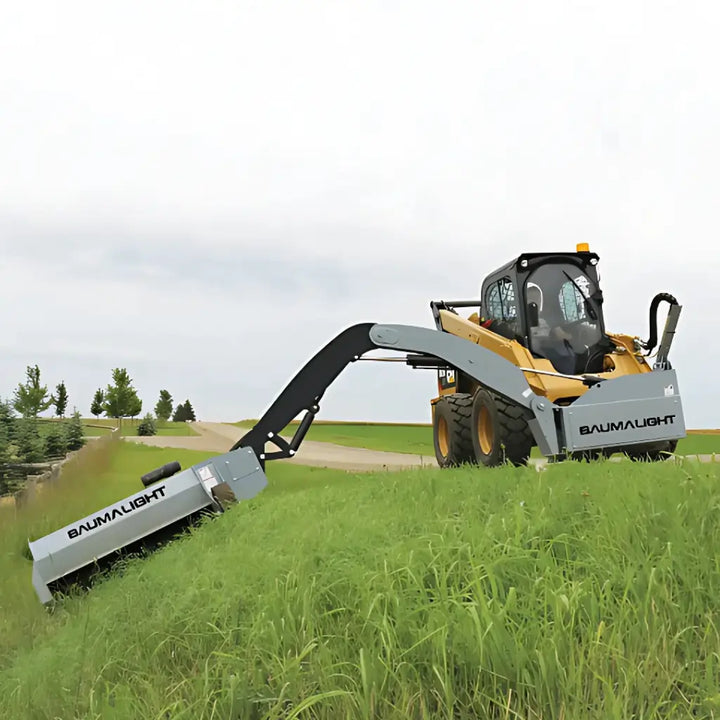

Effortlessly maintain ditches, roadsides, and fence lines with the Baumalight SWA550 Boom Mower, designed for skid steer carriers weighing 5,000 lbs and up. It features a curved single-arm boom with a 7-foot reach and a 60" wide mowing head for effective coverage. Equipped with flat-free tires, the mower’s floating deck ensures smooth transport and improved maneuverability between job sites, making it a dependable choice for professional land management.
✔️ Lead Time Estimated at 5 Weeks
✔️ Price Match Guarantee
✔️ 6 Free Replacement Teeth
✔️ Manufacturer Warranty Included
✔️ Lead Time Estimated at 5 Weeks
✔️ Price Match Guarantee
✔️ 6 Free Replacement Teeth
✔️ Manufacturer Warranty Included
Attachment Specifications
| Model No. | SWA540 | SWA550 | SWA560 | SWF560 | SWF580 | SWA750 |
|---|---|---|---|---|---|---|
| Total reach when flat | 6 ft | 7 ft | 10 ft | 10 ft | 14 ft | 7 ft |
| Cutting Width | 48" | 60" | 60" | 48" | 48" | 42" |
| Boom Type | Single Arm | Single Arm | Single Arm | Boom & Stick | Boom & Stick | Single Arm |
| Type of Blades | Flail | Flail | Flail | Flail | Flail | Rotary cutter |
| Minimum Skidsteer weight Warning; not applicable to wheel loaders |
4,500 lbs | 5,000 lbs | 5,500 lbs | 6,000 lbs | 8,000 lbs | 8,000 lbs |
| Maximum Skidsteer weight | 10,500 lbs | 11,000 lbs | 12,000 lbs | 12,000 lbs | 16,000 lbs | 12,000 lbs |
| Requires Case Drain | Yes | Yes | Yes | Yes | Yes | Yes |
| Hydraulic Hose & Couplers | Hose only | Hose only | Hose only | Hose only | Hose only | Hose only |
| Max PSI | 4,500 | 4,500 | 4,500 | 4,500 | 4,500 | 4,500 |
| Motor type | Piston | Piston | Piston | Piston | Piston | Piston |
| Estimated dealer set-up time | 6 hours | 6 hours | 6 hours | 8 hours | 9 hours | 7 hours |
| No. of blade clusters F2000(Standard) |
38 | 48 | 48 | 38 | 38 | - |
| No. of blade clusters F3000(Optional) |
76 | 96 | 96 | 76 | 76 | - |
| Shipping weight | 1775 lbs | 1900 lbs | 1750 lbs | 1650 lbs | 1800 lbs | 2050 lbs |
Key Features - SWA550
PROTECTIVE POWDER COAT FINISH
Heavy duty construction and a durable powder coated finish.
CURVED BOOM
Baumalight signature curved boom allows for extra clearance when you need to get over obstacles.
AUX ELECTRICAL CONNECTION FOR IN CAB CONTROL
For simple in cab control, the DSA530 is available with Baumalight's Auxiliary Electrical Connection. This connection gives you simple quick connections and access to all the attachments functions using your machine's own controls.
BENT AXIS PISTON MOTOR
Our Industry leading bent axis piston motors make the most efficient use of your hydraulic flow and pressure for pruning, trimming and land clearing. Built to last, these reliable motors can double the power of your output flow.
FOLDS FOR TRAVEL
The boom is compact enough for travel on tighter paths and trailering.
ANTI-SLIP MAT FOR EASY ACCESS TO CAB
For ease of entry and exit from the cab an anti-slip strip gives sure footing.
ARMOURED AND SLEEVED HOSES
All hoses are sleeved for operator and hose protection.
Adjustable Cut Length
Front and rear adjustable mounting points allow you to control how close you cut.
Floating Deck Roller
Keeping things level is a heavy duty steel roller.
GREASEABLE PINS
Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.
HARDENED STEEL BUSHING
Spring Bushings made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.
Heavy Duty Cylinders
Large cylinders control the arm for quick flow so you’re spending less time adjusting positions and more time rolling and cutting.
Safety Break Away
Shear pins on the boom are mounted in 4 places so if you ever run into trouble you're protected from large scale damage.
200 SERIES FLAIL TEETH
Currently available on our 200 Series Brush Fire mulchers, these flail type cutters are an economic and efficient way to beat back heavy vegetation and light to moderate brush. Ideally suited for small carriers, these flails provide good cutting performance and great mulching. Bolt-on replaceable for quick and easy servicing, even in the field.
Upgrade to our Heavy Blade Teeth and instantly increase your mulching capacity. These upgraded heavy duty blade teeth are 6mm thick and will allow you to double your brush size mulching capacity without any other equipment adjustments required.
6 FREE TEETH
All SWA540 Boom Mowers come with a free set of 6 replacement teeth. These replacement teeth are conveniently shipped in a robust enclosed compartment on top of the frame.
Solid Flat Free Tire
The durable solid flat free tire achieves a floating deck effect which takes the unit weight off the skid steer and with adjustable height positions you can change depending on cutting application.
Maximum Brush Cutting Sizes- SWA550
MAXIMUM MOWING SIZE
(Brush Diameter in Inches)
| MOTOR | MOTOR TYPE |
CC | CASE DRAIN |
IDEAL RPM |
BLADE STYLE |
PSI | 20 GPM | 25 GPM | 30 GPM | 35 GPM | 40 GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RPM | 1500 | 2000 | 2500 | 3000 | 3500 | ||||||
| D510 | Piston | 34 | Critical | 2200 | F2000 | 3000 3500 |
0.375" 0.5" |
0.5" 0.75" |
0.75" 0.75" |
N/A | N/A |
| D510 | Piston | 34 | Critical | 2200 | F3000 | 3000 3500 |
0.75" 1" |
1" 1" |
1" 1" |
N/A | N/A |
* Running a skidsteer at half throttle is ideal
| MOTOR | MOTOR TYPE |
CC | CASE DRAIN |
IDEAL RPM |
BLADE STYLE |
PSI | 20 GPM | 25 GPM | 30 GPM | 35 GPM | 40 GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RPM | 1000 | 1500 | 1800 | 2100 | 2500 | ||||||
| D530 | Piston | 47 | Critical | 2100 | F2000 | 3000 3500 |
0.5" 0.75" |
0.75" 0.75" |
0.75" 0.75" |
0.75" 0.75" |
0.75" 0.75" |
| D530 | Piston | 47 | Critical | 2100 | F3000 | 3000 3500 |
1" 1" |
1" 1" |
1" 1" |
1" 1" |
1" 1" |
* Running a skidsteer at half throttle is ideal
Machine Compatibility
Not sure if the attachment you're considering will fit your machine? Here’s a complete guide to ensuring attachment compatibility.
1. Attachment Mounting Type
Your machine’s mounting plate must match the attachment’s plate for a proper fit. While most manufacturers now follow a "universal" standard, making many attachments interchangeable, there are still exceptions—so always double-check compatibility.
2. Hydraulic Connections and Flow Rate
If the attachment requires hydraulics, ensure that both the machine and attachment have compatible hydraulic couplers. Additionally, the machine’s auxiliary hydraulic flow rate must fall within the attachment’s required range. If the attachment doesn’t use hydraulics, you can skip this step.
3. Machine Lift Capacity
Your machine’s rated operating capacity (ROC) must be able to handle the attachment’s weight. For attachments like buckets and concrete mixers, don’t forget to factor in the weight of the material they’ll be carrying to avoid exceeding your machine’s limits.
