Baumalight SWA750 Boom Mower For Skid Steers

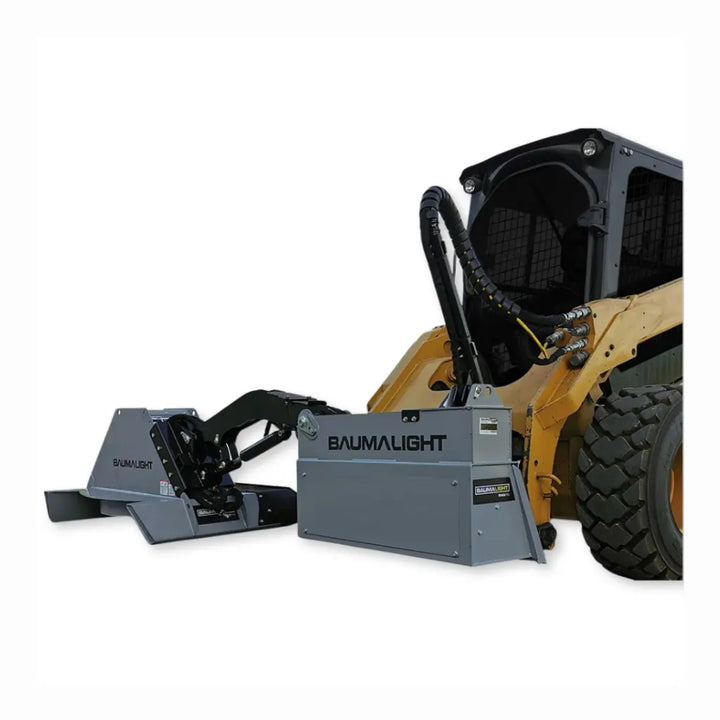

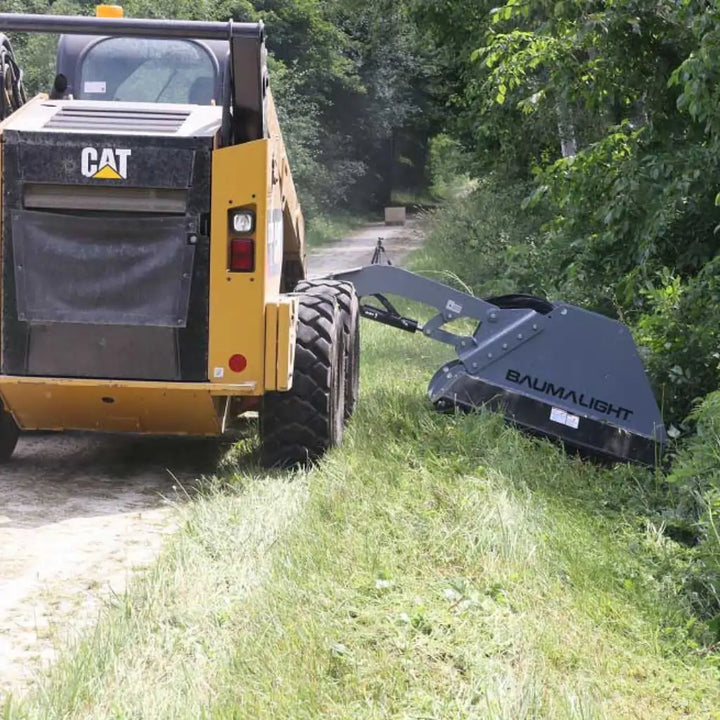

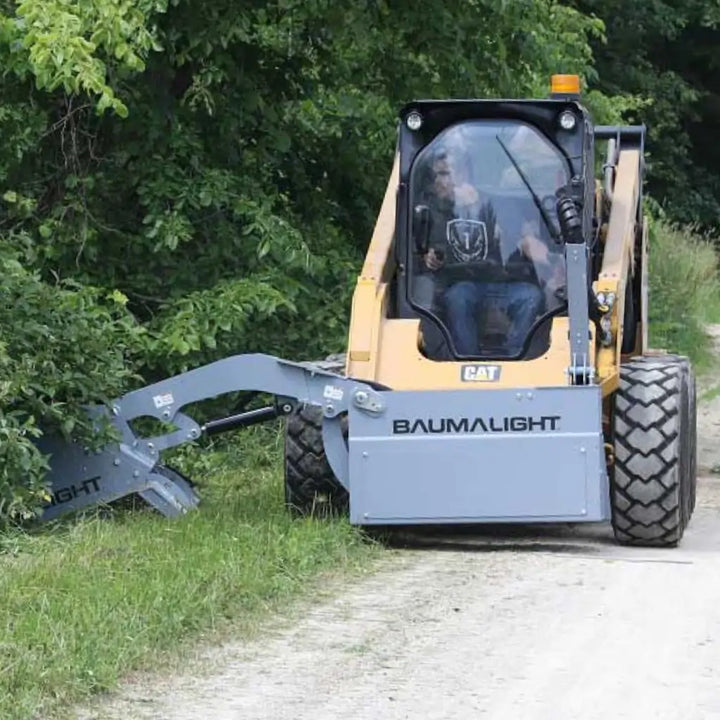

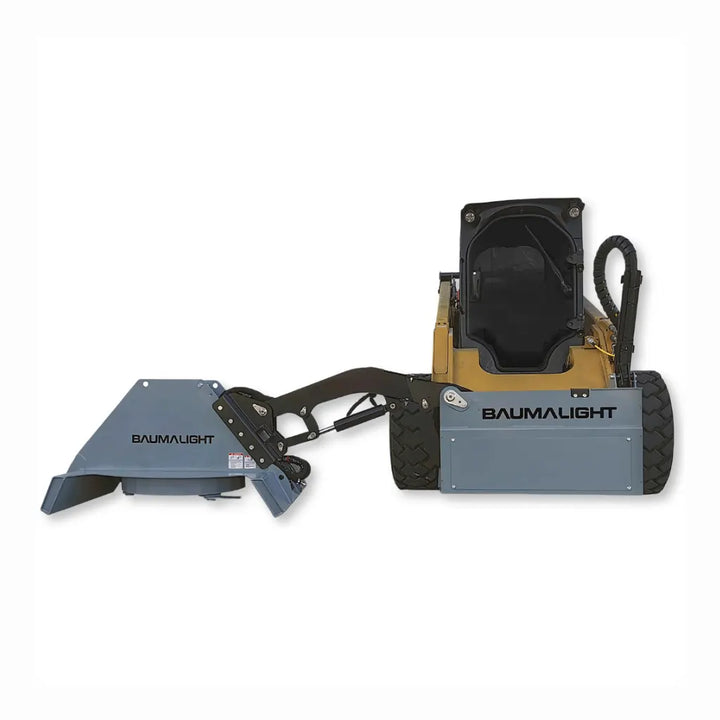

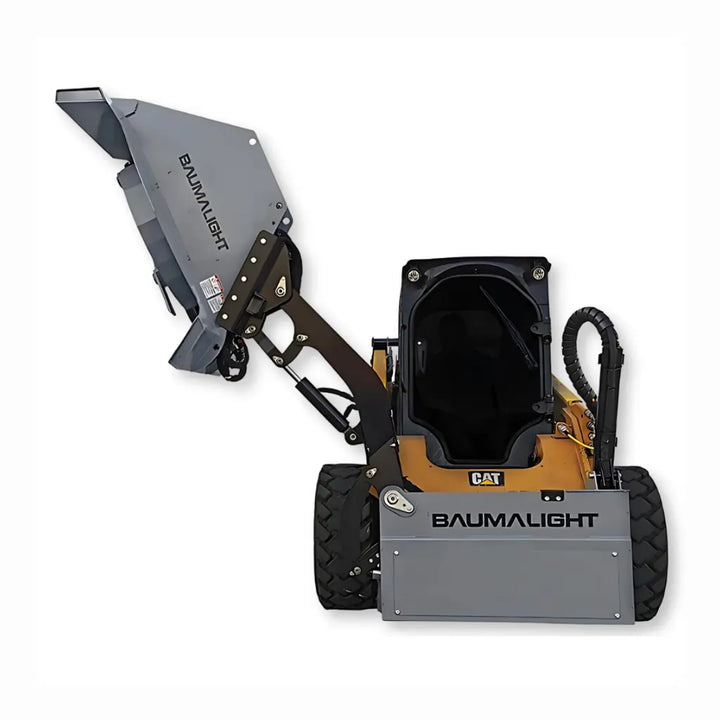

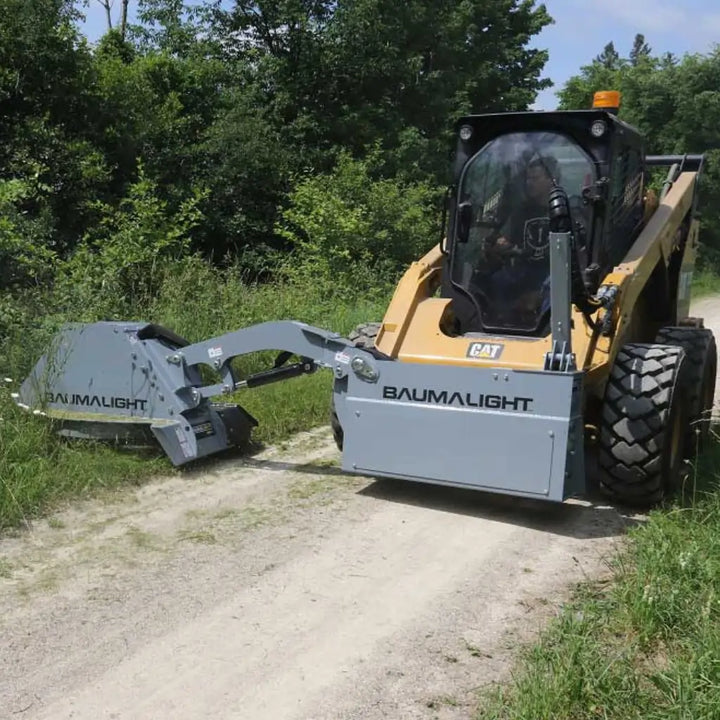

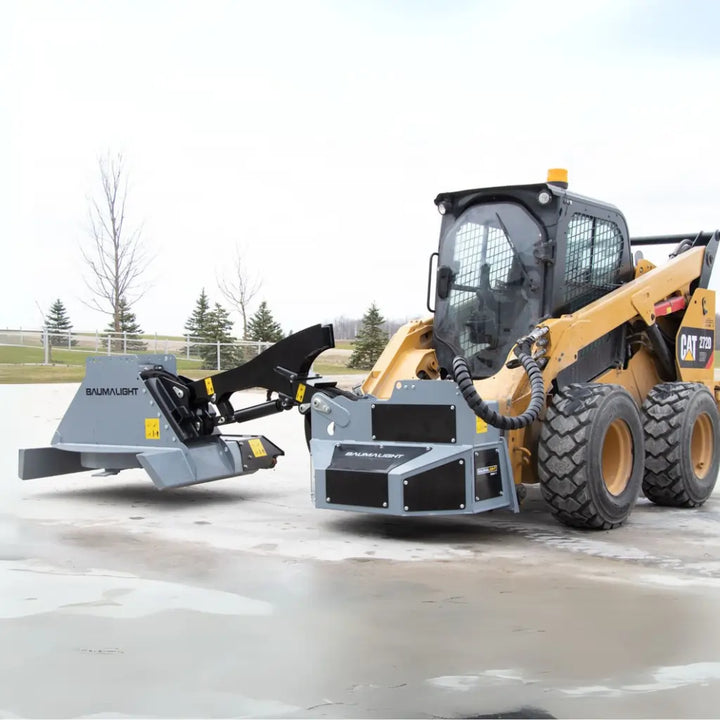

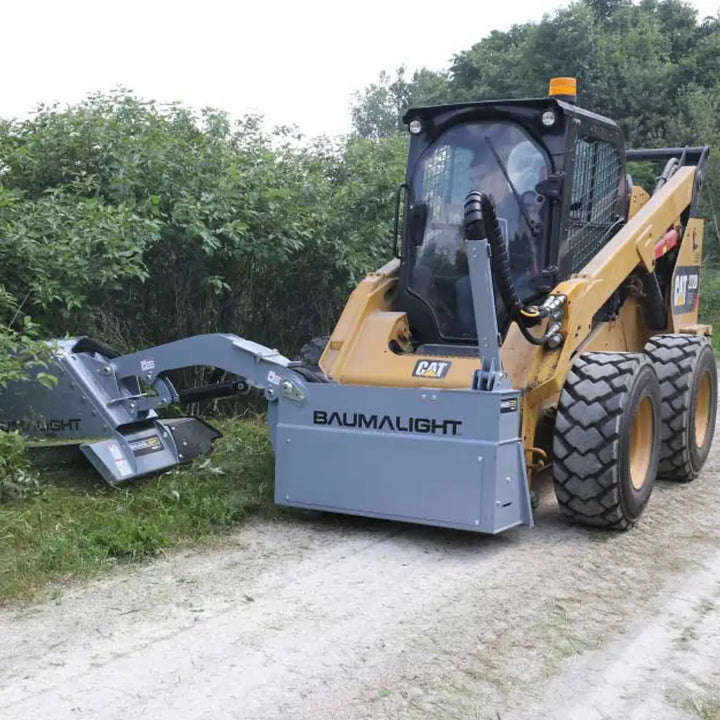

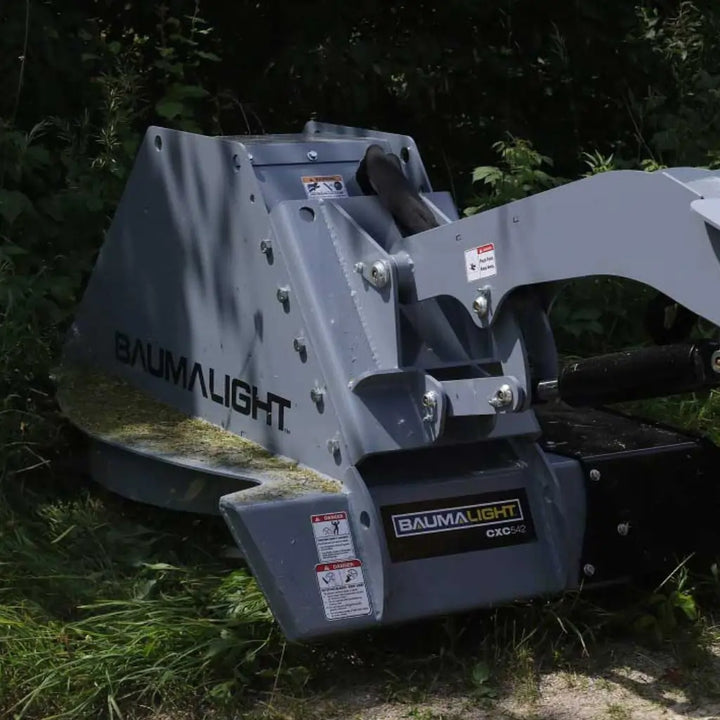

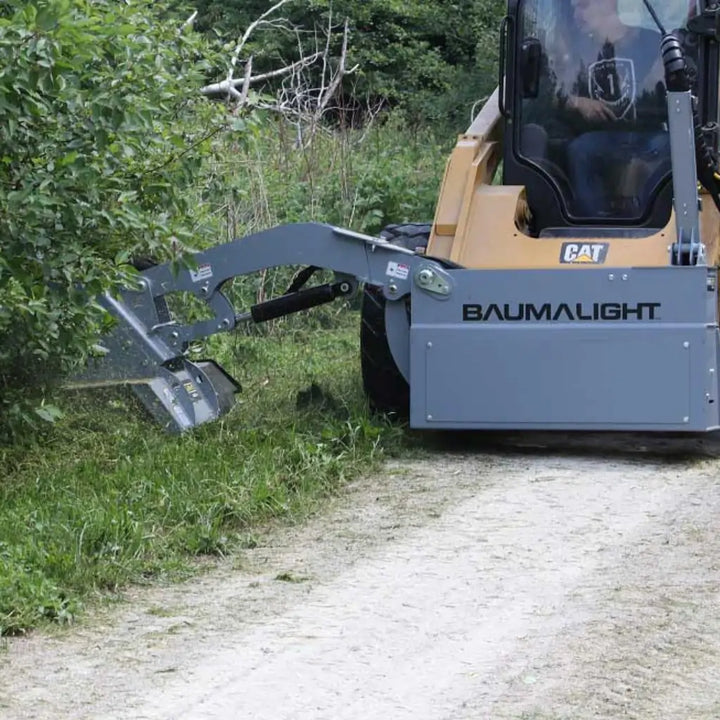

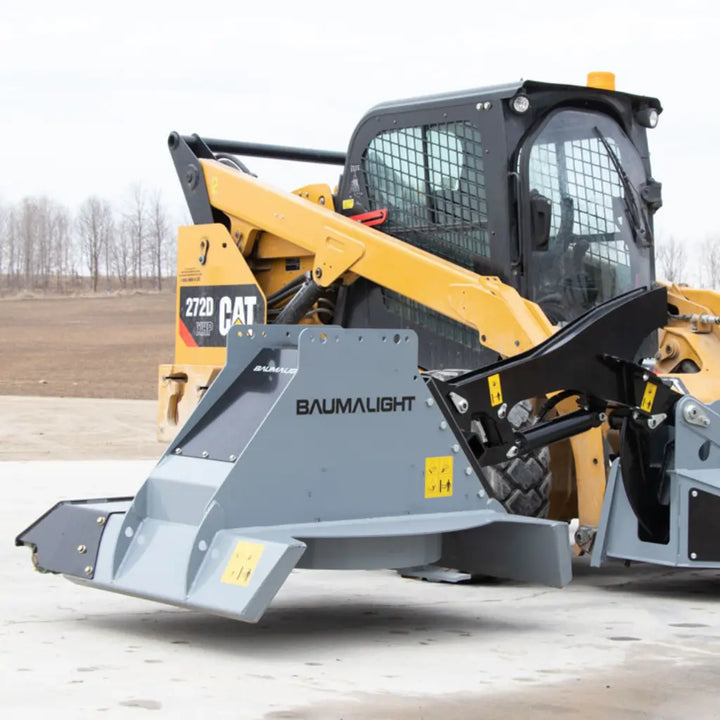

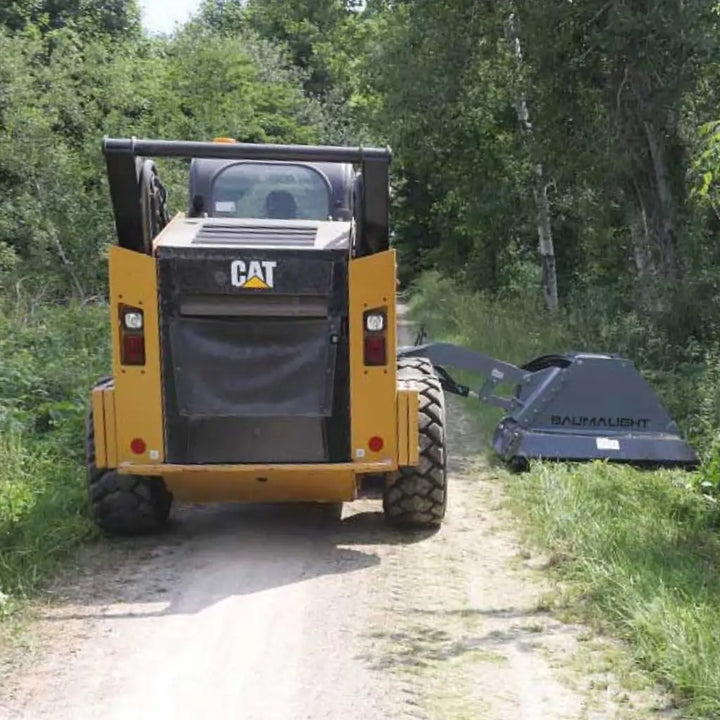

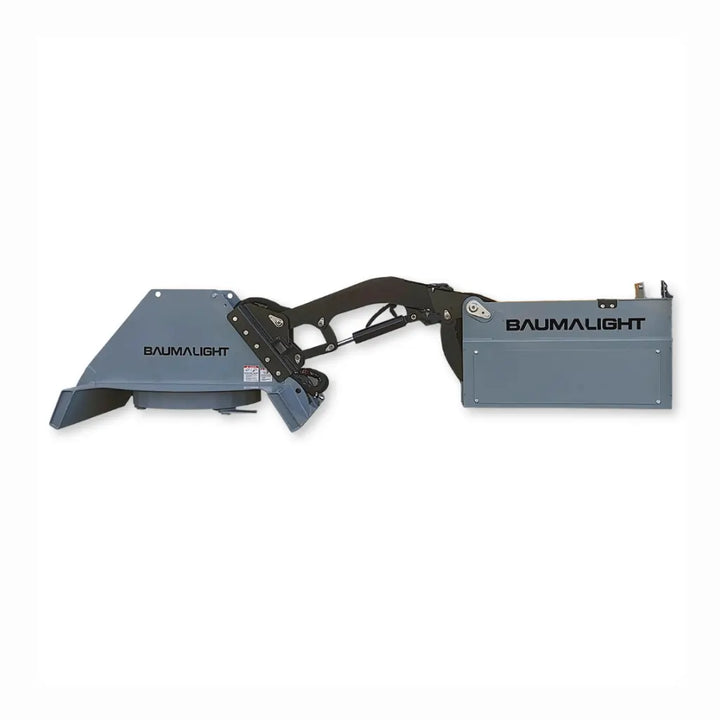

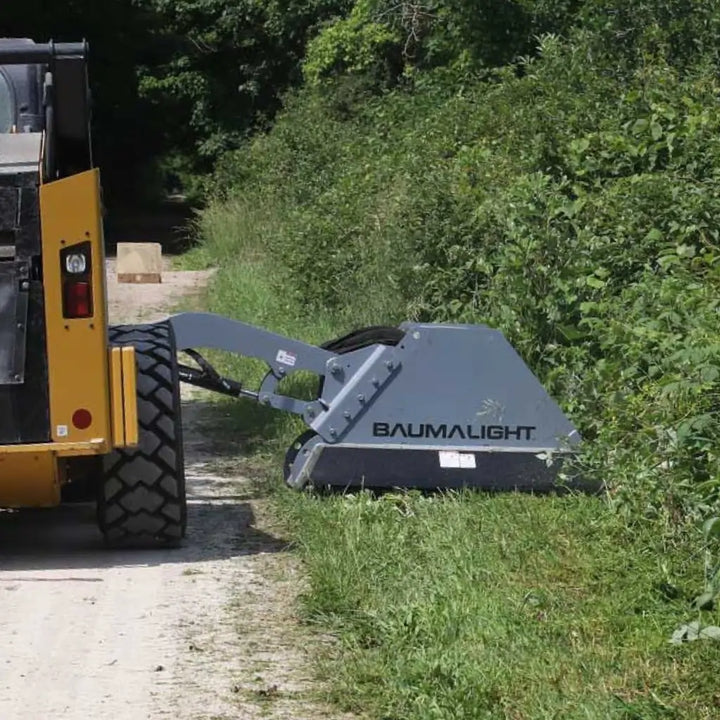

Simplify ditch, roadside, and fence line mowing with the Baumalight SWA750 Boom Mower, built for skid steer carriers weighing 8,000 lbs and up. Featuring a 42" wide adjustable-height deck with rotary cutting blades, this robust mower delivers powerful and precise cutting performance. Its 7-foot curved single-arm boom offers excellent reach and folds conveniently for easy transport and storage, making it an efficient solution for tough landscaping and maintenance tasks.
Easily mow ditches, roadsides, and fence lines with the Baumalight SWA560 Boom Mower, engineered for skid steer carriers weighing 5,500 lbs and above. It features a curved single-arm boom extending 10 feet for extended reach, paired with a 60" wide mowing head equipped with rugged 200 series flail teeth—capable of handling brush up to 2" in diameter. The boom folds neatly for convenient transport between job sites, combining efficiency and versatility in one durable package.
✔️ Lead Time Estimated at 5 Weeks
✔️ Price Match Guarantee
✔️ 6 Free Replacement Teeth
✔️ Manufacturer Warranty Included
✔️ Lead Time Estimated at 5 Weeks
✔️ Price Match Guarantee
✔️ 6 Free Replacement Teeth
✔️ Manufacturer Warranty Included
Attachment Specifications
| Model No. | SWA540 | SWA550 | SWA560 | SWF560 | SWF580 | SWA750 |
|---|---|---|---|---|---|---|
| Total reach when flat | 6 ft | 7 ft | 10 ft | 10 ft | 14 ft | 7 ft |
| Cutting Width | 48" | 60" | 60" | 48" | 48" | 42" |
| Boom Type | Single Arm | Single Arm | Single Arm | Boom & Stick | Boom & Stick | Single Arm |
| Type of Blades | Flail | Flail | Flail | Flail | Flail | Rotary cutter |
| Minimum Skidsteer weight Warning; not applicable to wheel loaders |
4,500 lbs | 5,000 lbs | 5,500 lbs | 6,000 lbs | 8,000 lbs | 8,000 lbs |
| Maximum Skidsteer weight | 10,500 lbs | 11,000 lbs | 12,000 lbs | 12,000 lbs | 16,000 lbs | 12,000 lbs |
| Requires Case Drain | Yes | Yes | Yes | Yes | Yes | Yes |
| Hydraulic Hose & Couplers | Hose only | Hose only | Hose only | Hose only | Hose only | Hose only |
| Max PSI | 4,500 | 4,500 | 4,500 | 4,500 | 4,500 | 4,500 |
| Motor type | Piston | Piston | Piston | Piston | Piston | Piston |
| Estimated dealer set-up time | 6 hours | 6 hours | 6 hours | 8 hours | 9 hours | 7 hours |
| No. of blade clusters F2000(Standard) |
38 | 48 | 48 | 38 | 38 | - |
| No. of blade clusters F3000(Optional) |
76 | 96 | 96 | 76 | 76 | - |
| Shipping weight | 1775 lbs | 1900 lbs | 1750 lbs | 1650 lbs | 1800 lbs | 2050 lbs |
Key Features - SWA750
PROTECTIVE POWDER COAT FINISH
Heavy duty construction and a durable powder coated finish.

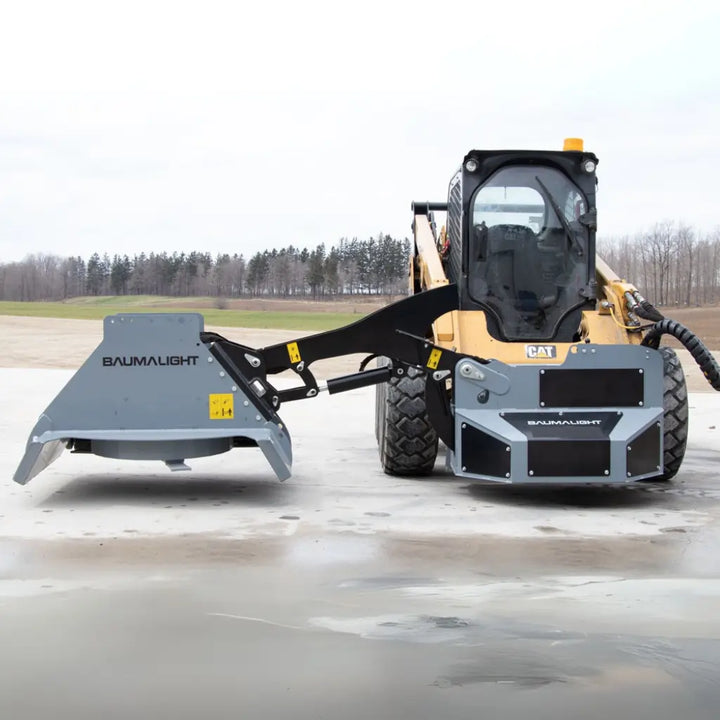

CURVED BOOM
Baumalight signature curved boom allows for extra clearance when you need to get over obstacles.
AUX ELECTRICAL CONNECTION FOR IN CAB CONTROL
For simple in cab control, the DSA530 is available with Baumalight's Auxiliary Electrical Connection. This connection gives you simple quick connections and access to all the attachments functions using your machine's own controls.
BENT AXIS PISTON MOTOR
Our Industry leading bent axis piston motors make the most efficient use of your hydraulic flow and pressure for pruning, trimming and land clearing. Built to last, these reliable motors can double the power of your output flow.

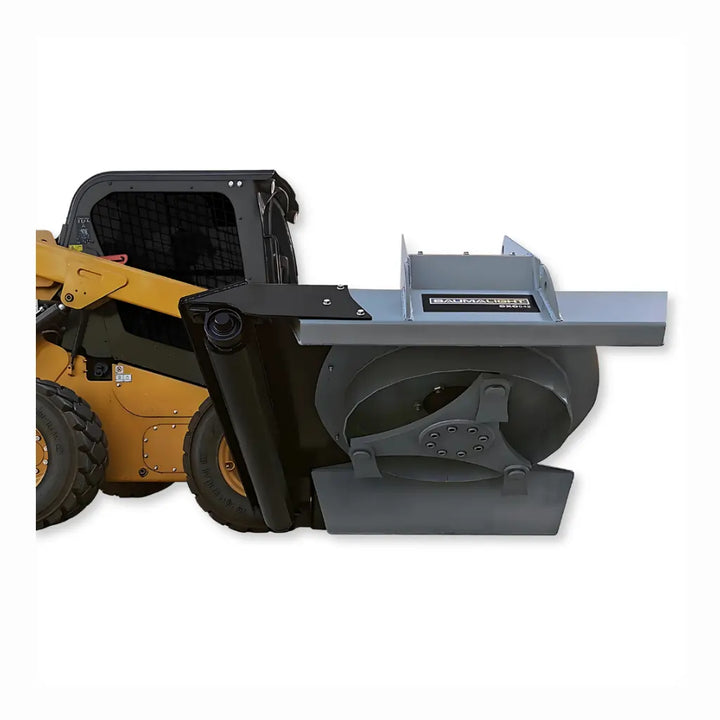

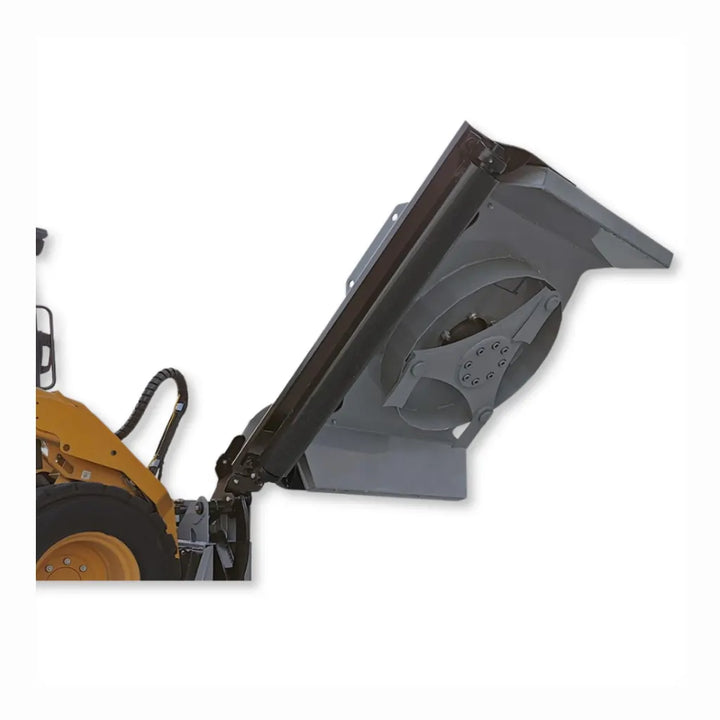

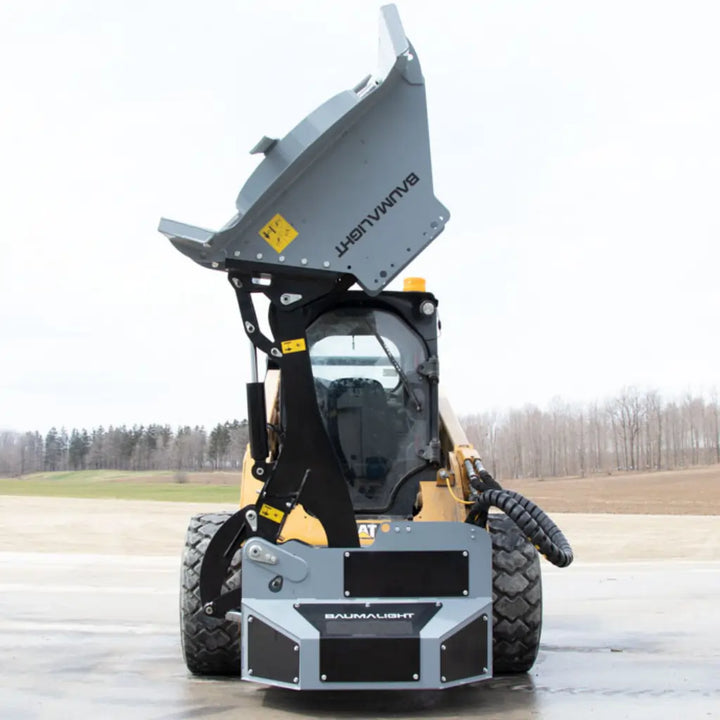

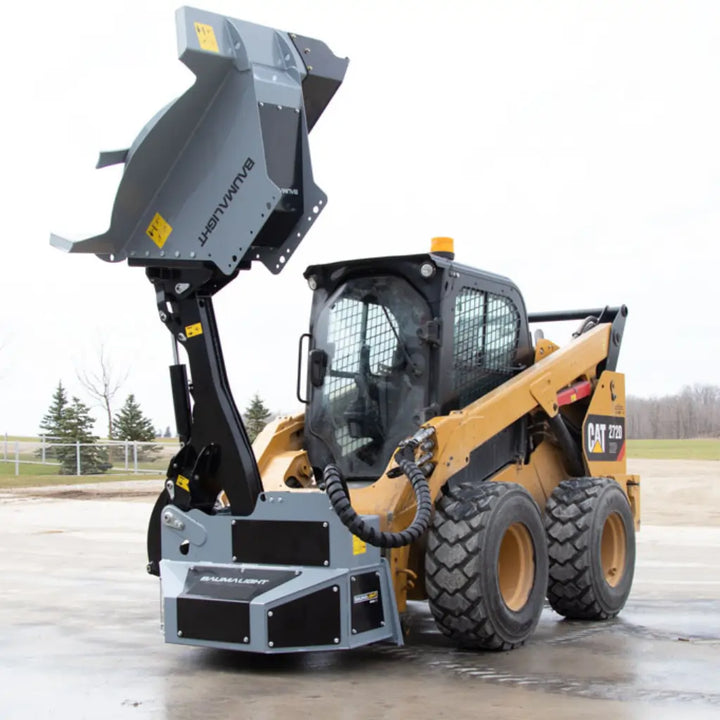

FOLDS FOR TRAVEL
The boom is compact enough for travel on tighter paths and trailering.
ANTI-SLIP MAT FOR EASY ACCESS TO CAB
For ease of entry and exit from the cab an anti-slip strip gives sure footing.
ARMOURED AND SLEEVED HOSES
All hoses are sleeved for operator and hose protection.
FREE BLADE SET
All SWA750 Boom Mower for Skidsteer come with a free set of replacement blades on a new purchase. These replacement blades are conveniently secured on the wooden shipping skid.
Floating Deck Roller
Keeping things level is a heavy duty steel roller.
GREASEABLE PINS
Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.
HARDENED STEEL BUSHING
Spring Bushings made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.
Heavy Duty Cylinders
Large cylinders control the arm for quick flow so you’re spending less time adjusting positions and more time rolling and cutting.
Maximum Brush Cutting Sizes - SWA750
MAXIMUM MOWING SIZE
(Brush Diameter in Inches)
| MOTOR | MOTOR TYPE |
CC | CASE DRAIN |
IDEAL RPM |
PSI | 20 GPM | 25 GPM | 30 GPM | 35 GPM | 40 GPM |
|---|---|---|---|---|---|---|---|---|---|---|
| RPM | 800 | 1100 | 1350 | |||||||
| HX550 | Piston | 64 | Critical | 1400 | 3000 3500 4000 |
3.5" 4" 4.25" |
3.75" 4.25" 4.5" |
4" 4.5" 4.75" |
- - |
- - |
| RPM | 850 | 1000 | 1200 | 1450 | ||||||
| HX570 | Piston | 84 | Critical | 1200 | 3000 3500 4000 |
- - - |
4" 4.5" 4.75" |
4.5" 5" 5.5" |
5" 5.5" 6" |
5.5" 6" 7" |
Machine Compatibility
Not sure if the attachment you're considering will fit your machine? Here’s a complete guide to ensuring attachment compatibility.
1. Attachment Mounting Type
Your machine’s mounting plate must match the attachment’s plate for a proper fit. While most manufacturers now follow a "universal" standard, making many attachments interchangeable, there are still exceptions—so always double-check compatibility.
2. Hydraulic Connections and Flow Rate
If the attachment requires hydraulics, ensure that both the machine and attachment have compatible hydraulic couplers. Additionally, the machine’s auxiliary hydraulic flow rate must fall within the attachment’s required range. If the attachment doesn’t use hydraulics, you can skip this step.
3. Machine Lift Capacity
Your machine’s rated operating capacity (ROC) must be able to handle the attachment’s weight. For attachments like buckets and concrete mixers, don’t forget to factor in the weight of the material they’ll be carrying to avoid exceeding your machine’s limits.
If you're unsure about your machine's make or model, check your operator's manual or consult your equipment dealer.
